Schwinn 213 - Hardware Chart

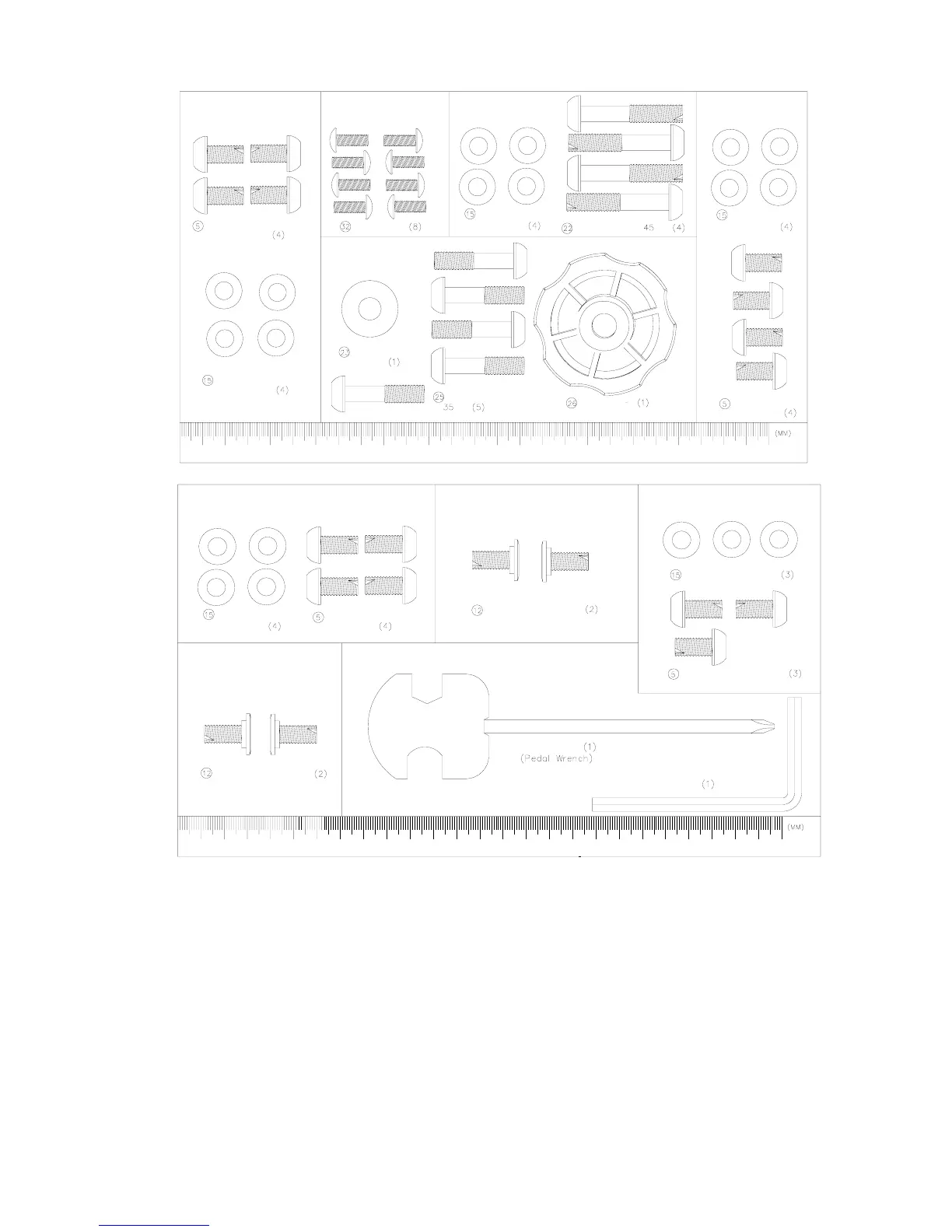

Hardware Chart
Flat Washer? 10
*
? 25*2T
Level Knob
3
8
"
Stage#5
Screws M8xP1.25
xmm
Allen Bolt M8x
P1.25x16mm
Stage#4
Flat Washer
? 8*? 16*2T
Flat Washer
? 8*? 16*2T
Screw M5x14L
Allen Bolt
M8xP1.25x16mm
Stage#2
Flat Washer
for
? 8* ? 16* 2T
Stage#3
Stage#1
Screws M8xP1.25x mm
Flat Washer ? 8*? 16*2T
Stage#11
Allen Bolt M8xP1.25x16mm
Screws M8xP1.25x16mm
Stage#9
Flat Washer
? 8*? 16*2T
Stage#7
Allen Bolt M8x
P1.25x16mm
Stage#6
Screws M8xP1.25x16mm
Allen Key
Screwdriver
Note: Please verify you have all correct parts and quantities before assembling
unit.
If you are missing items, are short quantities, or have damaged components,
please contact Schwinn at 1.800.864.1270.
