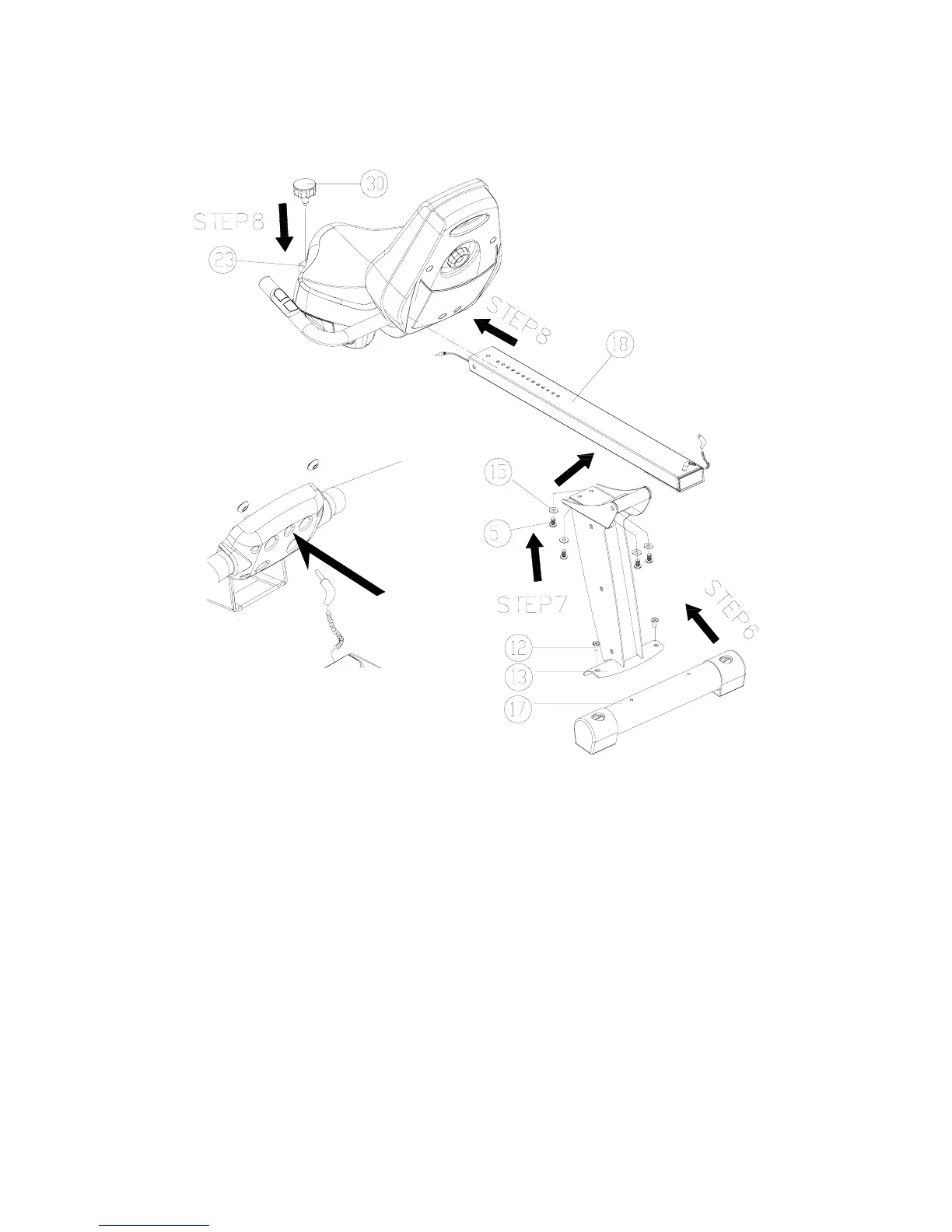

Assembly Stage #4
Attach Rear Stabilizer and Seat Rail to
Seat Assembly
Assembly hardware required: (4) M8 Allen Bolts 16mm (item #5)
(4) Flat Washers Ø8 * Ø16 * 2T (item#15)
(2) Flat Head Screw (item #12)
Step 6: Attach the REAR STABILIZER (#17) to the SEAT RAIL POST (#16) with 2
FLAT HEAD SCREWS (#12). Tighten bolts.
Step 7: Attach SEAT RAIL (#18) to SEAT RAIL POST (#16) with 4 FLAT
WASHERS (#15) and 4 ALLEN BOLTS (#5). Tighten bolts
Step 8: Insert SEAT PIN ADJUSTMENT KNOB (#3) into SEAT FRAME (#8).
Slide the seat assembly from stage 1 onto the SEAT RAIL (#9). Tighten seat
assembly to the rail with the SEAT PIN ADJUSTMENT KNOB (#3). Insert HR
CABLE (#47) into HR input on the back of the seat assembly (inset picture).
