Assembly Stage #3
Assemble Seat Back and Magazine Rack
Assembly hardware required: (4) M8 Allen Bolts 16 mm long (item #5)
(5) M8 Allen Bolts 35 mm long (item #25)
(4) Flat Washer Ø8* Ø 16*2T(item #15)
(1) Flat Washer Ø25.4 x 2T (item # 27)

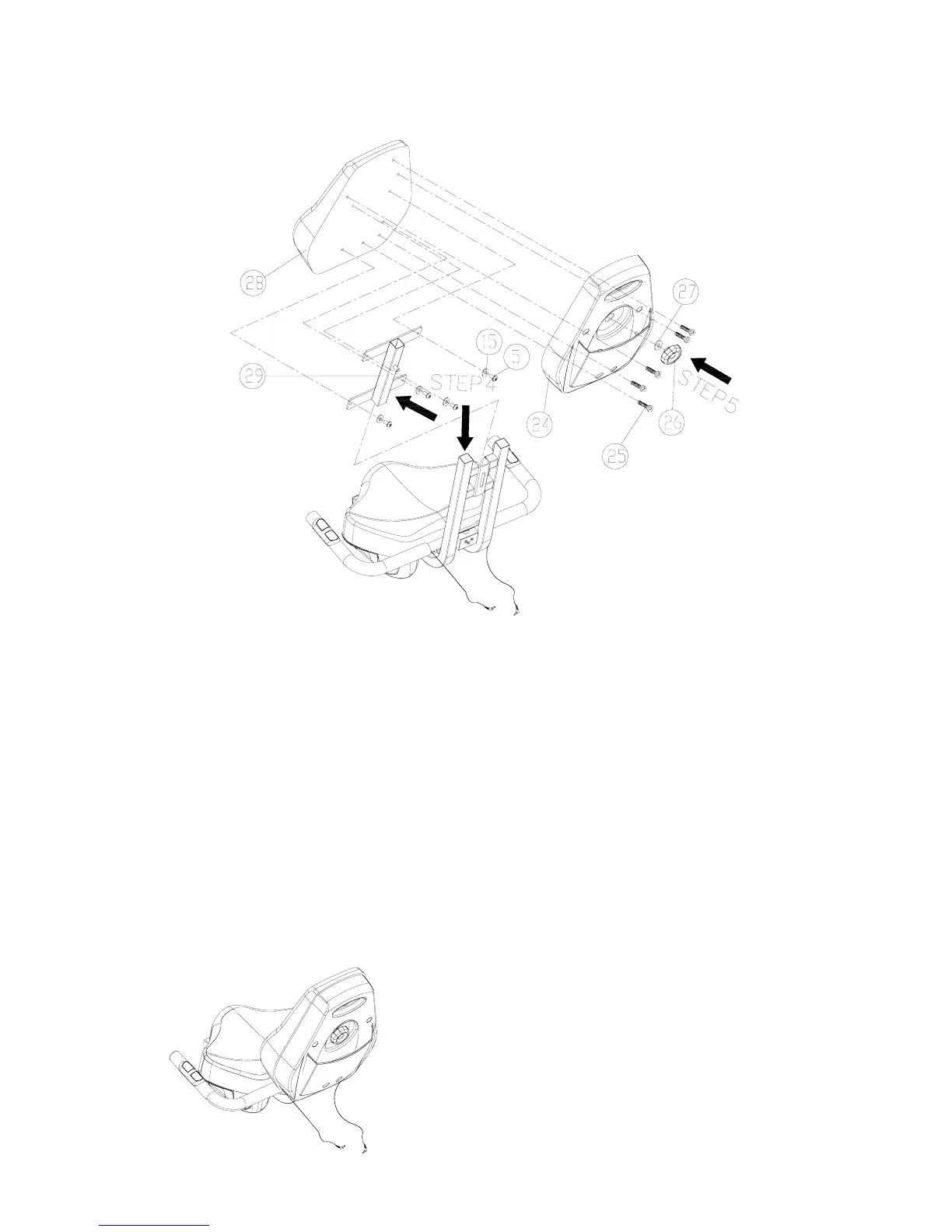

Step 4: Attach BACKER SLIDER TUBE (#29) to SEAT FRAME (#23) with 4 ALLEN
BOLTS 16mm (#5) and 4 WASHERS (#15). Tighten bolts.
Step 5: Attach the SEAT BACK (#28) and SEAT BACKER (#24) to the SEAT FRAME
(#23) with 5 Allen Bolts (#25), ADJUSTMENT KNOB (#26), and the FLAT WASHER
(#27). Tighten bolts.
Note: Finished seat should look like picture below:
