Assembly Stage #2
Assemble Seat, Water Bottle Holder, and Seat Backer
Assembly hardware required: (8) Screws M4x14L (item #32)
(4) M8 Allen Bolts 45 mm long (item #22)
(4) Flat Washer Ø8* Ø 16*2T(item #15)

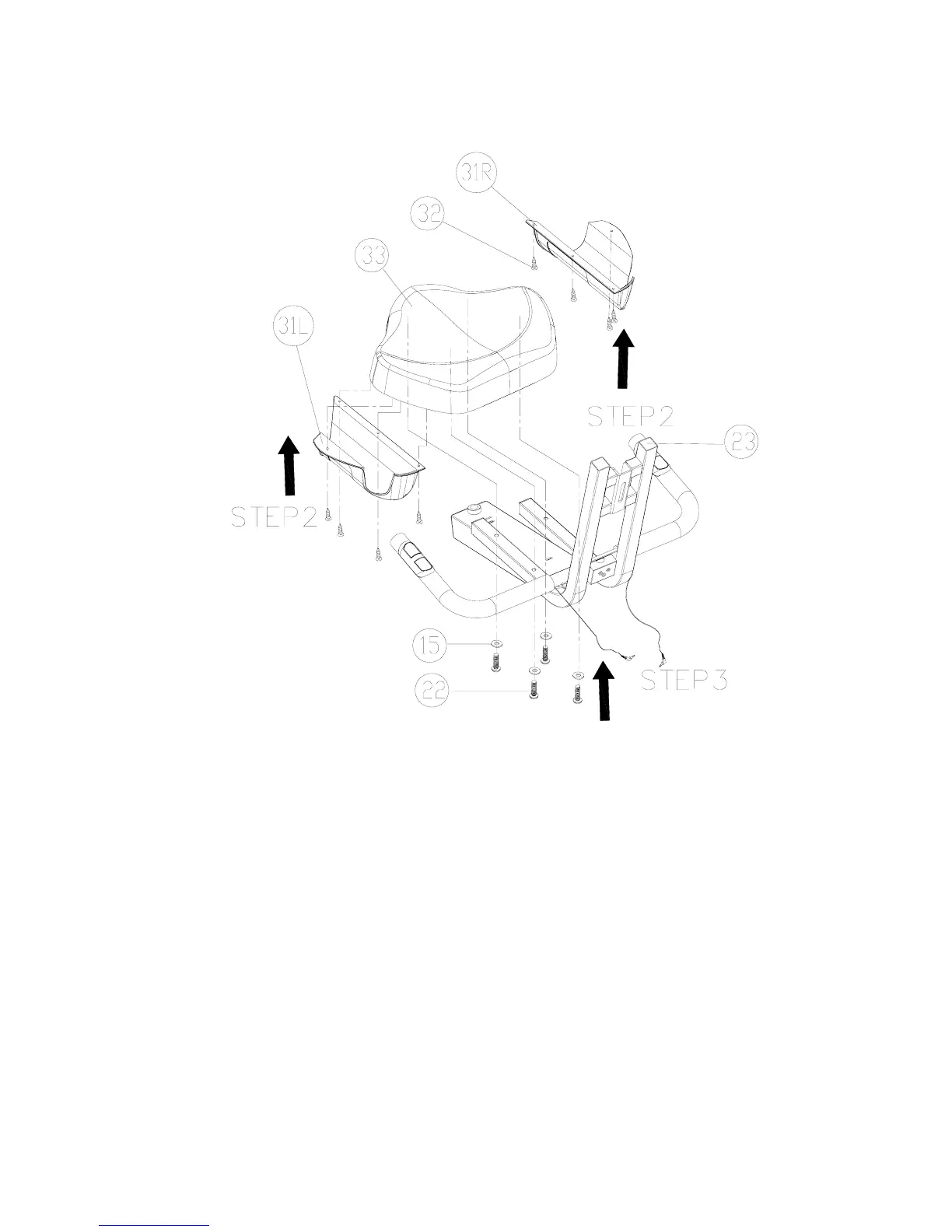

Step 2: Attach the right and left WATER BOTTLE HOLDERS (#31) with the
SCREWS (#32) to the underside of the SEAT BOTTOM (#33) using the provided
screwdriver.
Step 3: Attach SEAT BOTTOM (#33) to SEAT FRAME (#23) with 4 ALLEN
BOLTS 45mm (#22) and 4 WASHERS (#15). Tighten Bolts.
