7
Item Qty Description Item Qty Description
1 1 Main Assembly 11 1 Pivot Cover
2 1 Rear Stabilizer 12 1 Seat Frame
3 2 Leveler Feet 13 1 Seat Pad
1 Front Stabilizer  1 Seat Back
5 1 Console Mast 15 1 Seat Adjustment Handle
1 Upright Handlebar  1 Left Pedal (L)
7 1 Handlebar Mount Cover 17 1 Right Pedal (R)
8 1 Console 18 1 Cup Holder
9 1 Console Mount Bracket 19 1 AC Adapter
10 1 Media Tray *
7KLVLWHPLVLQEDJZLWK0DQXDOV

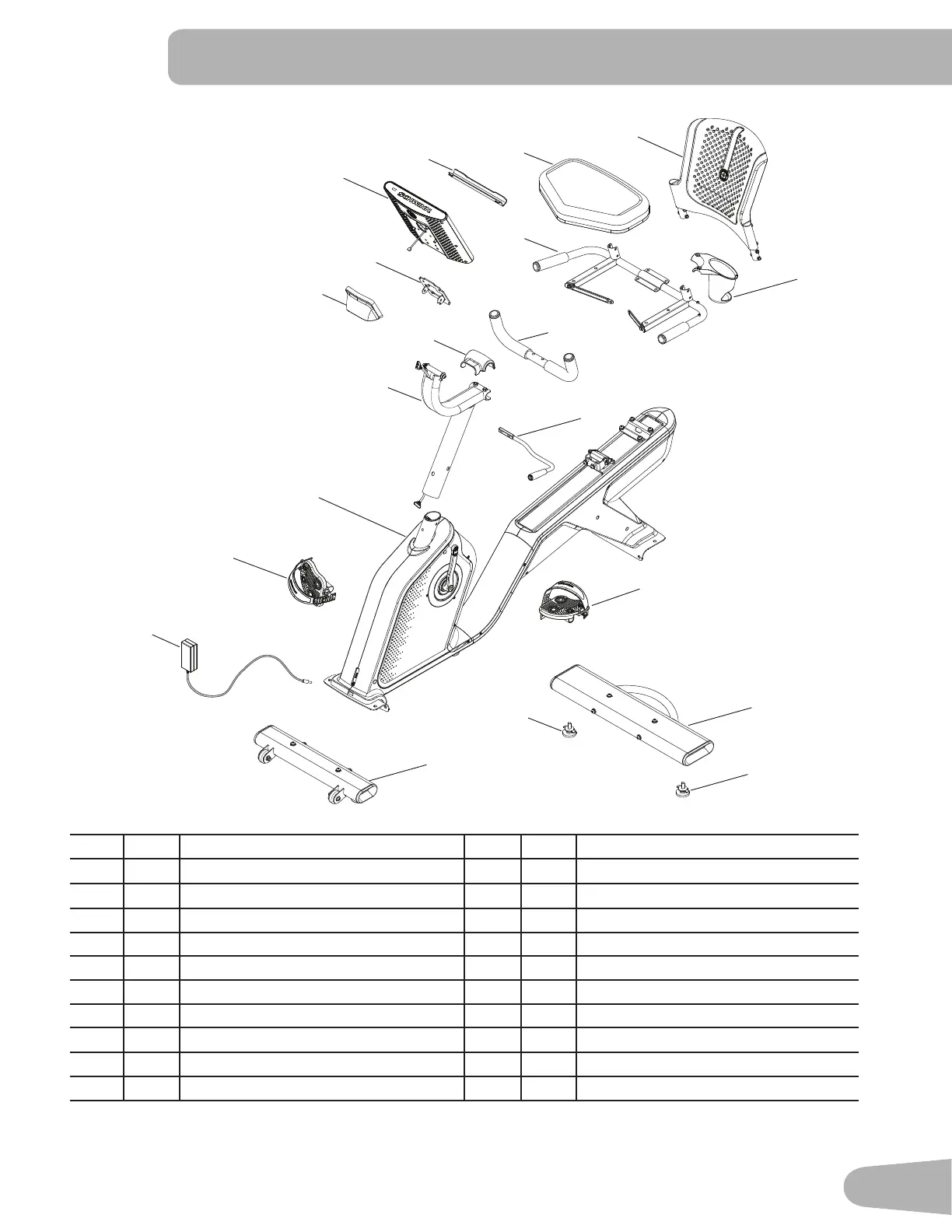

PARTS
1
2
3
4
16 (L)
17 (R)
5
6
7
12
13
14
15
8
9
11
18
19
3
10
