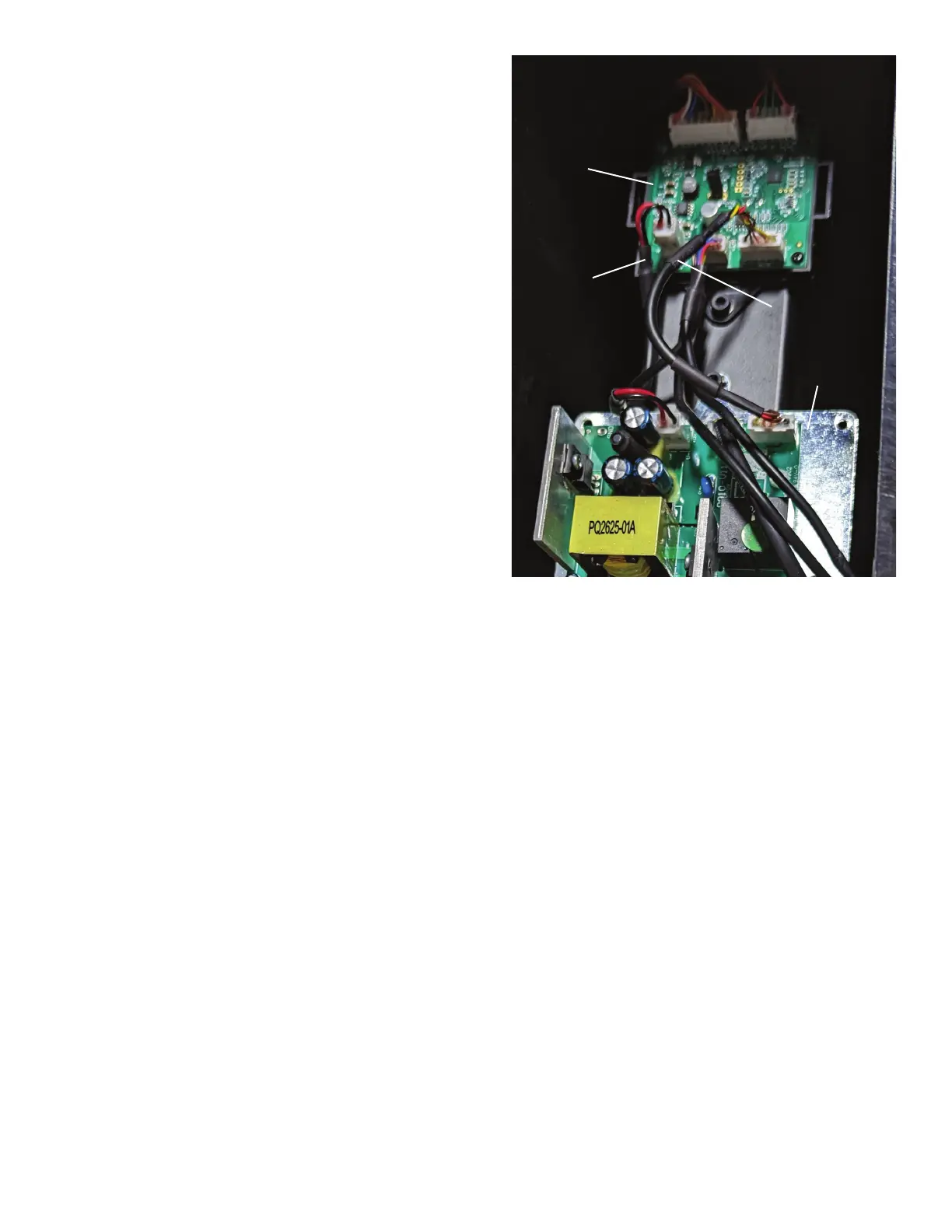

Sensor Hub
O󰀪inePower
Supply to Sensor
Hub (DC Power)
Cable
O󰀪inePower
Supply
Lift Motor Con-
trol Cable
2. Removethecablethatisbeingreplaced(O󰀪inePower
Supply to Sensor Hub (DC Power) Cable, or Lift Motor
ControlCable)fromtheSensorHubandtheO󰀪inePower
Supply.
Note: Be sure to note where all cables attach for
re-assembly. Do not let the cables fall into the
machine. If the Cable Connectors are secured by
a small amount of glue, use a pair of small nose
pliers to grab and remove the glue.
NOTICE: Do not cut or pinch the cables.
3. Connect the new cable to the Sensor Hub and the
O󰀪inePowerSupply.
NOTICE: Do not cut or pinch the cables.
