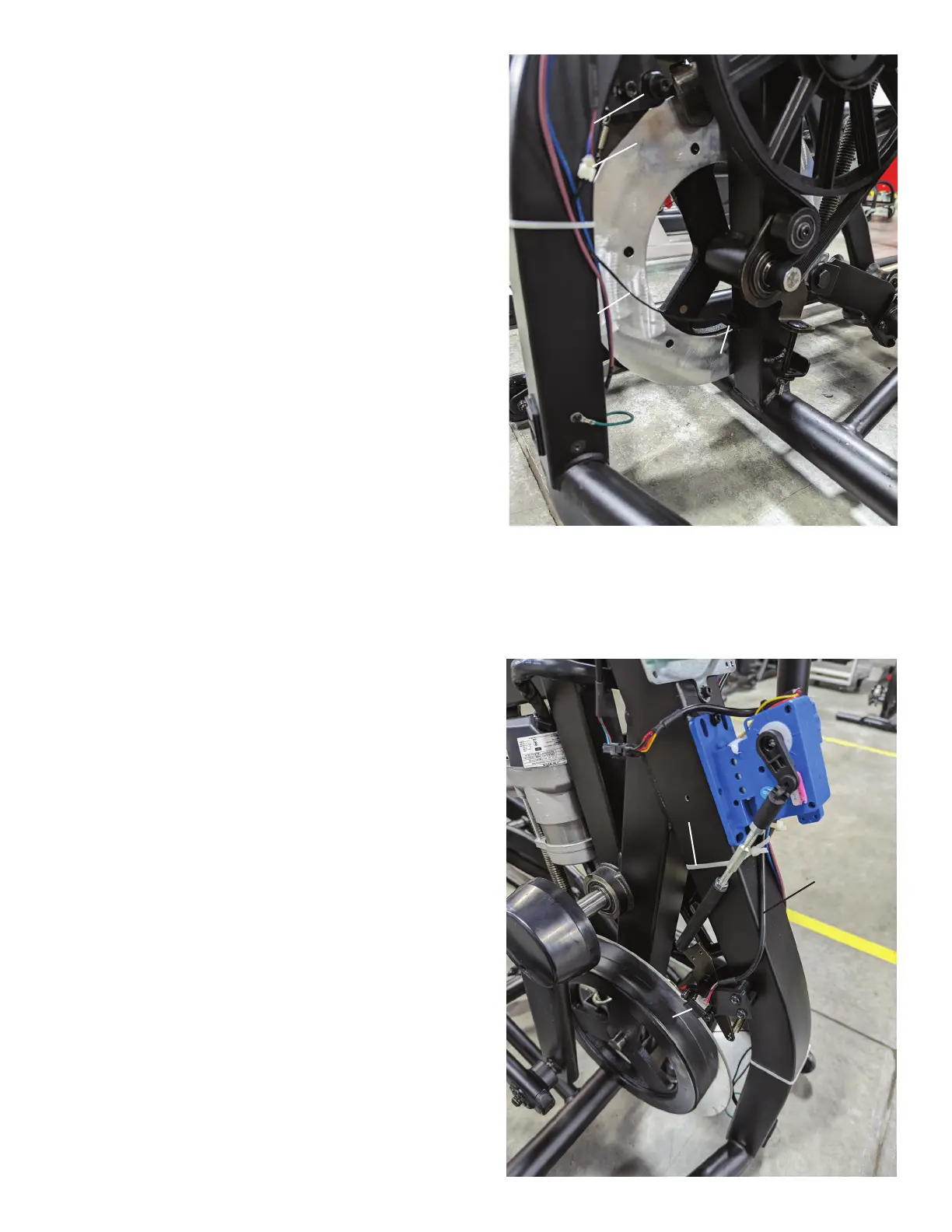

28
Resistance
Sensor
Split Cable
Assembly
(Servo, Speed
and Resis-
tance)
Zip-Tie
7. After noting how the Zip-Tie secures the Split Cable
Assembly and other cables to the Frame, cut the Zip-Tie that
secures them. Be sure not to damage or cut any cables.
8. Disconnect the Split Cable Assembly from the
Resistance Sensor.
9. Route the remaining cable of the new Split Cable
Assembly to the Resistance Sensor, and connect it.
NOTICE: Do not pinch or cut the cables.
Speed Sensor
Speed Sensor
Cable
Speed Sensor
Cable Connector
Split Cable Assembly
(Servo, Speed and Resistance)
5. Disconnect the Speed Sensor Cable Connector.
6. Route the appropriate cable of the new Split Cable
Assembly to the Speed Sensor Cable Connector, and
connect it.
NOTICE: Do not pinch or cut the cables.
To Next Page
