Section 3 - Replacing the Sensor Hub to Upper
Handlebar Buttons (Resistance and Incline)
Cable
Note: The Sensor Hub to Upper Handlebar Buttons Cable
is a ‘T’ Cable, connecting the lower solo end to the
Sensor Hub and the other two ends going to each
of the Upper Handlebars. To replace this cable, both
Handlebars will need to be removed.

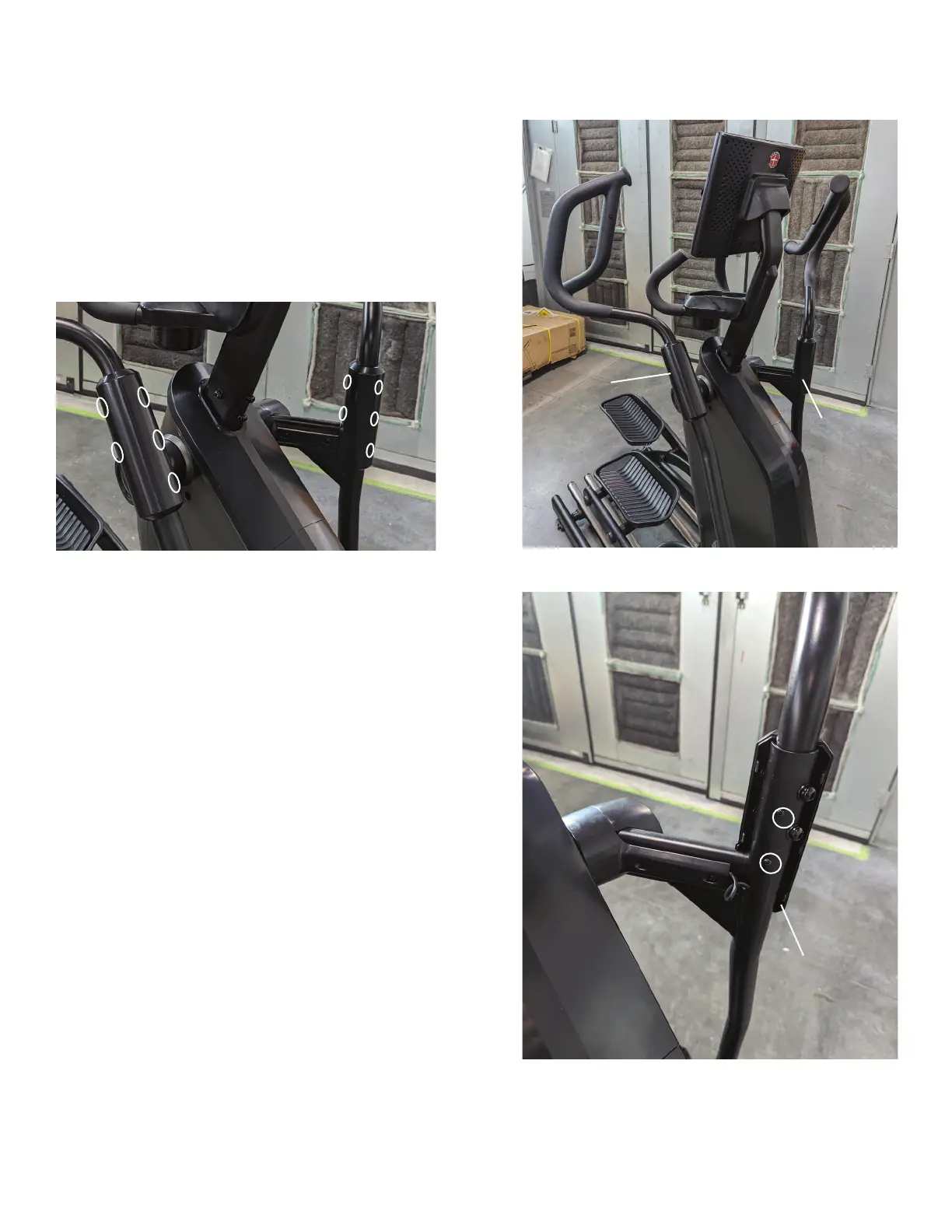

1. GentlycompresstheExteriorHandlebarCoverto
releaseitfromtheInteriorHandlebarCover.Thereareve
tabs that snap to secure each Cover.
2. Using a #2 Phillips screwdriver, remove the two screws
that attach the Interior Handlebar Cover to the Handlebars.
Set the hardware safely aside for reassembly.
Exterior
Handlebar
Cover
Interior
Handlebar
Cover
Exterior
Handlebar
Cover
