Schwinn 490e - Page 31

31
X8
6mm
Pivot Cap
Inner Pivot
Shroud
Lower Handlebar
Sensor Hub to
Upper Handle-
bar Buttons
Cable

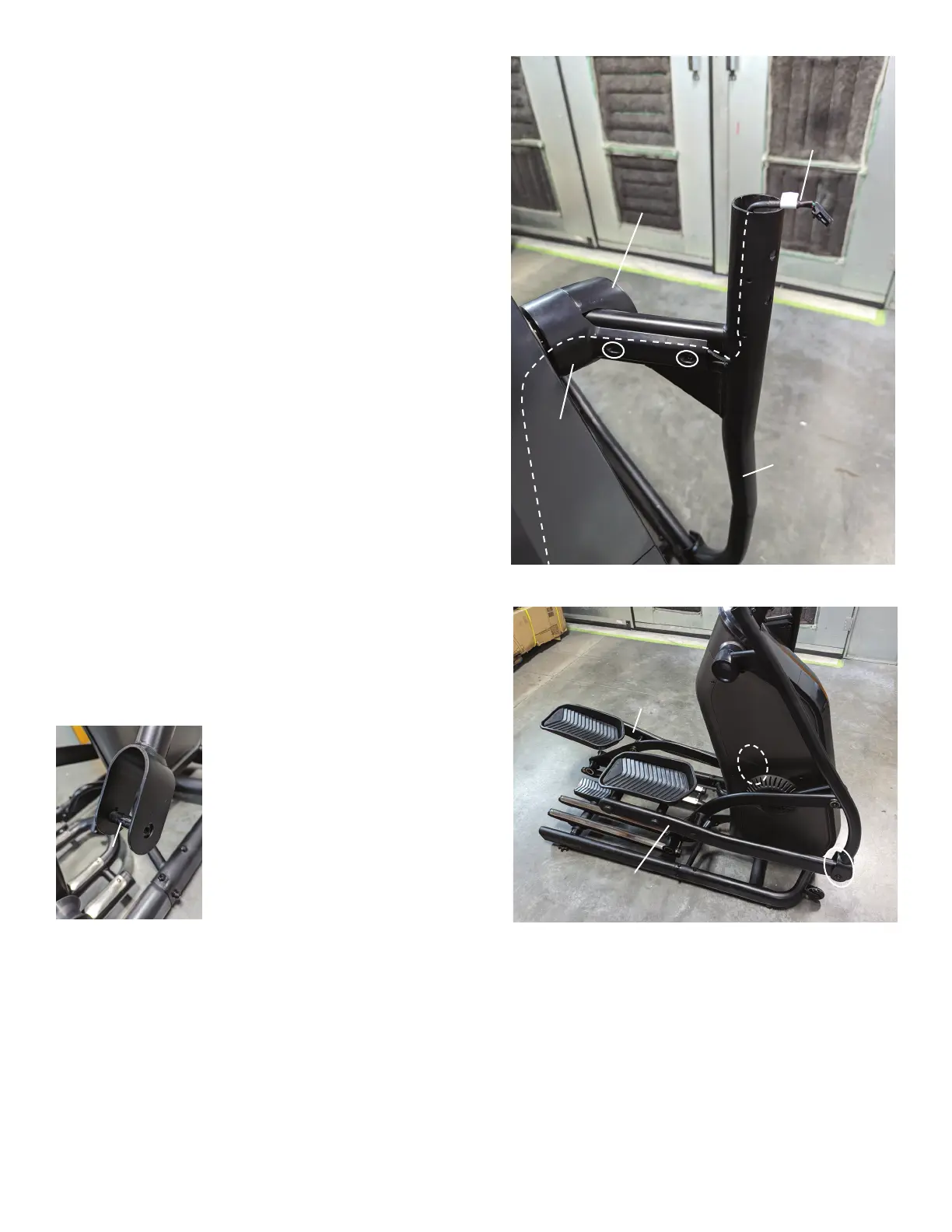

5. Gently compress the sides of the Pivot Cap to release it
from the Inner Pivot Shroud.
6. Using a #2 Phillips screwdriver, remove the 2 screws
(indicated by ovals) from the Inner Pivot Shroud.
7. Tie a 60 cm (24 inch) long piece of wire or string to the
end of the Cable. This wire or string will be used to pull the
new cable through and out of the Lower Handlebar.
8. Usinga6mmhexwrench,removethehardware
(indicated by ovals) that attaches the Pedals and remove
them.
Pedal
Pedal
Pivot Pin
Note: To assist with re-assembly,
notice that the Pivot Pin is
flush with the outside of the
Lower Handlebar.
