Schwinn 490e - Page 41

41

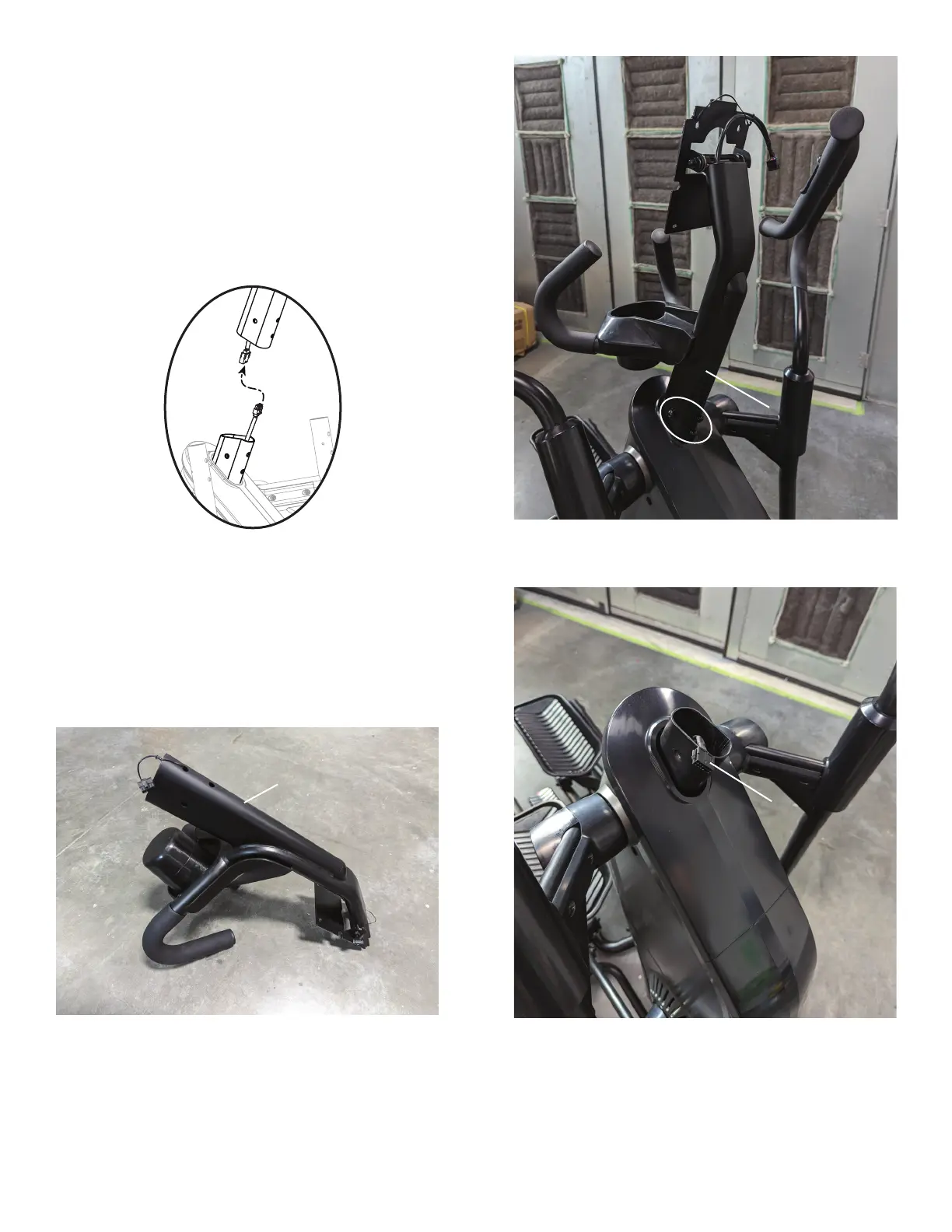

5. Usinga6mmhexwrench,removethehardwarethat
attaches the Console Mast to the Frame Assembly.
6. Slightly pull the Console Mast upward, and disconnect
the cables. Set the old Console Mast and hardware safely
aside.
NOTICE: Do not cut or pinch the cables. This step may
require two people.
Console Mast
Console Cable
New Console Mast
X4
6mm
