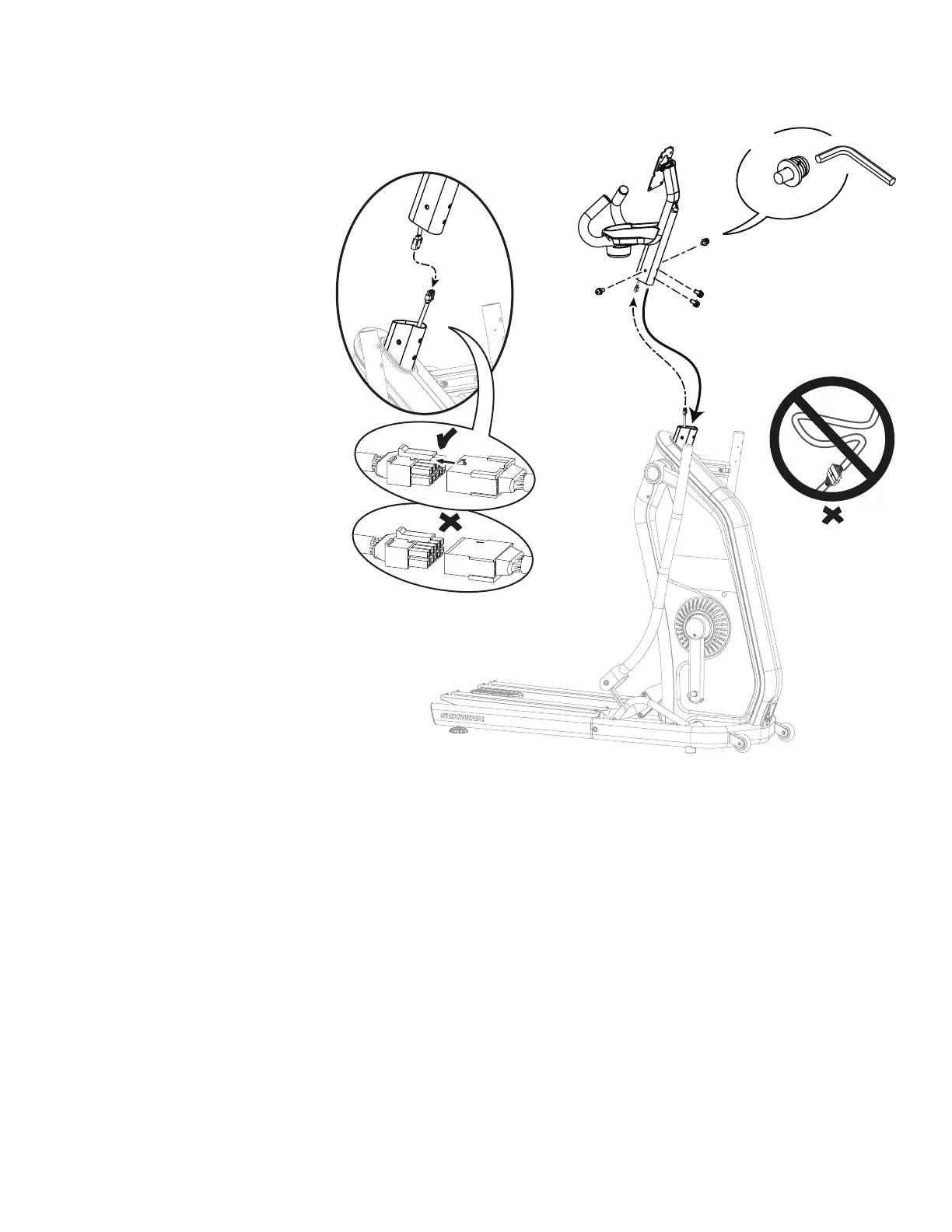

7. With the new Console Mast, connect the cable to the
cable from the Frame Assembly. Align the clips on the cable
connectors and make sure the connectors lock.
NOTICE: Do not cut or pinch the cables. This step may
require two people.
8. Usinga6mmhexwrench,attachtheConsoleMastto
the Main Assembly.
NOTICE: Make sure the Console Cable does not fall
into the Console Mast. Do not cut or pinch the
cables.
