To reduce the risk of electrical shock or unsupervised usage of the equipment, always
unplug the power cord from the wall outlet and wait 5 minutes before cleaning, main-
taining or repairing this machine. Place the power cord in a secure location.
Note:Yourmachinemaynotmatchtheimagesprovidedexactly.
1. Unplug the Power Cord from the wall outlet and machine.
To replace the:
Front Lower Shroud Section 1 this page
Front Upper Shroud Section 2 page 3
Rear Shroud Section 3 page 5
Main Shrouds All Sections (1-4) this page
For Re-Assembly and Final Inspection Section 5 page 14
Section 1 - Replacing the Front Shroud

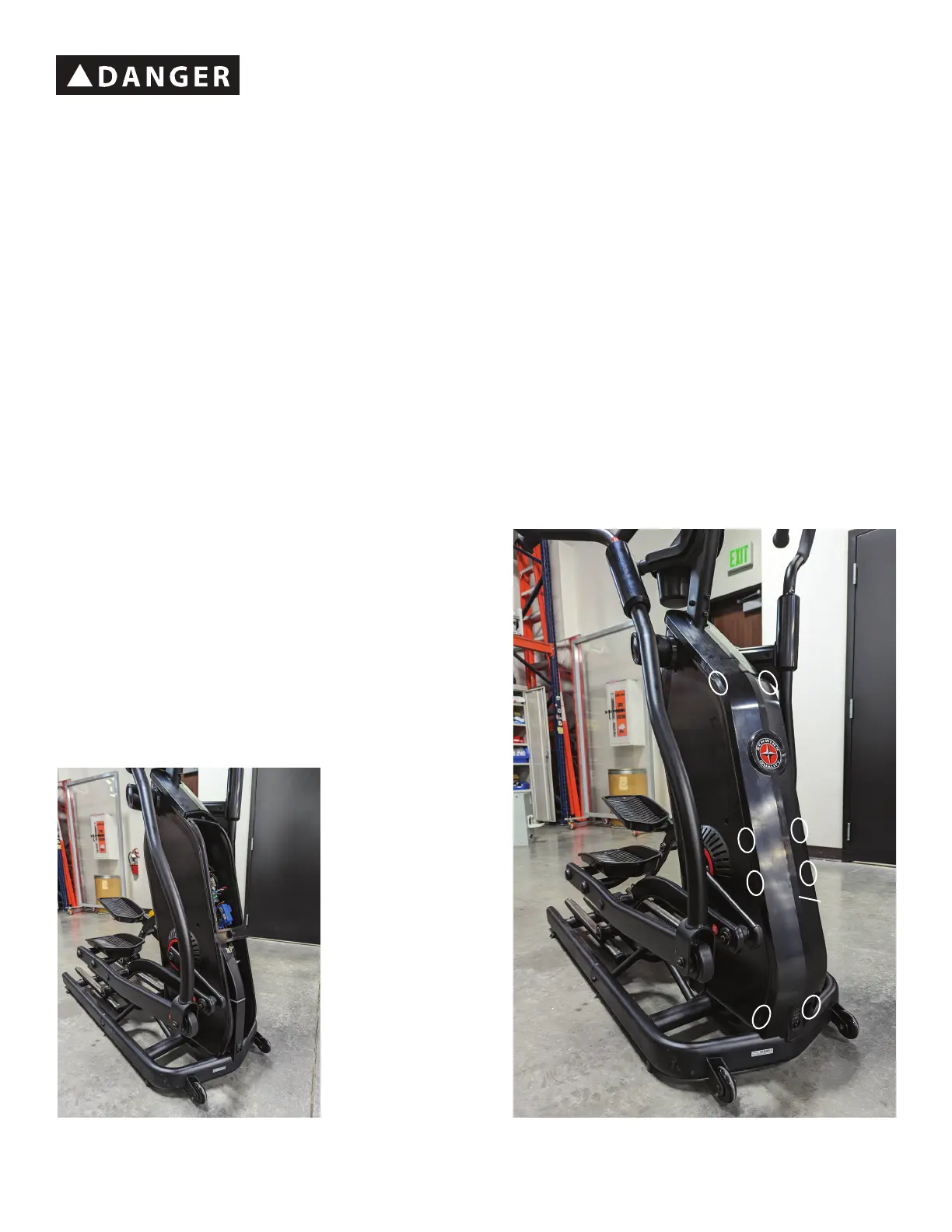

1. FlextheedgesoftheFrontLowerShroudtodisengage
the 8 inside tabs from the Main Shrouds.
Note: It may be easier to pry up the edges of the Front
LowerShroudusingaatheadscrewdriver.To
avoid damage to the surface of the Shrouds,
we recommend putting a piece of cloth over the
screwdriver blade.
Front
Shroud
