Schwinn 490e - Page 63

63

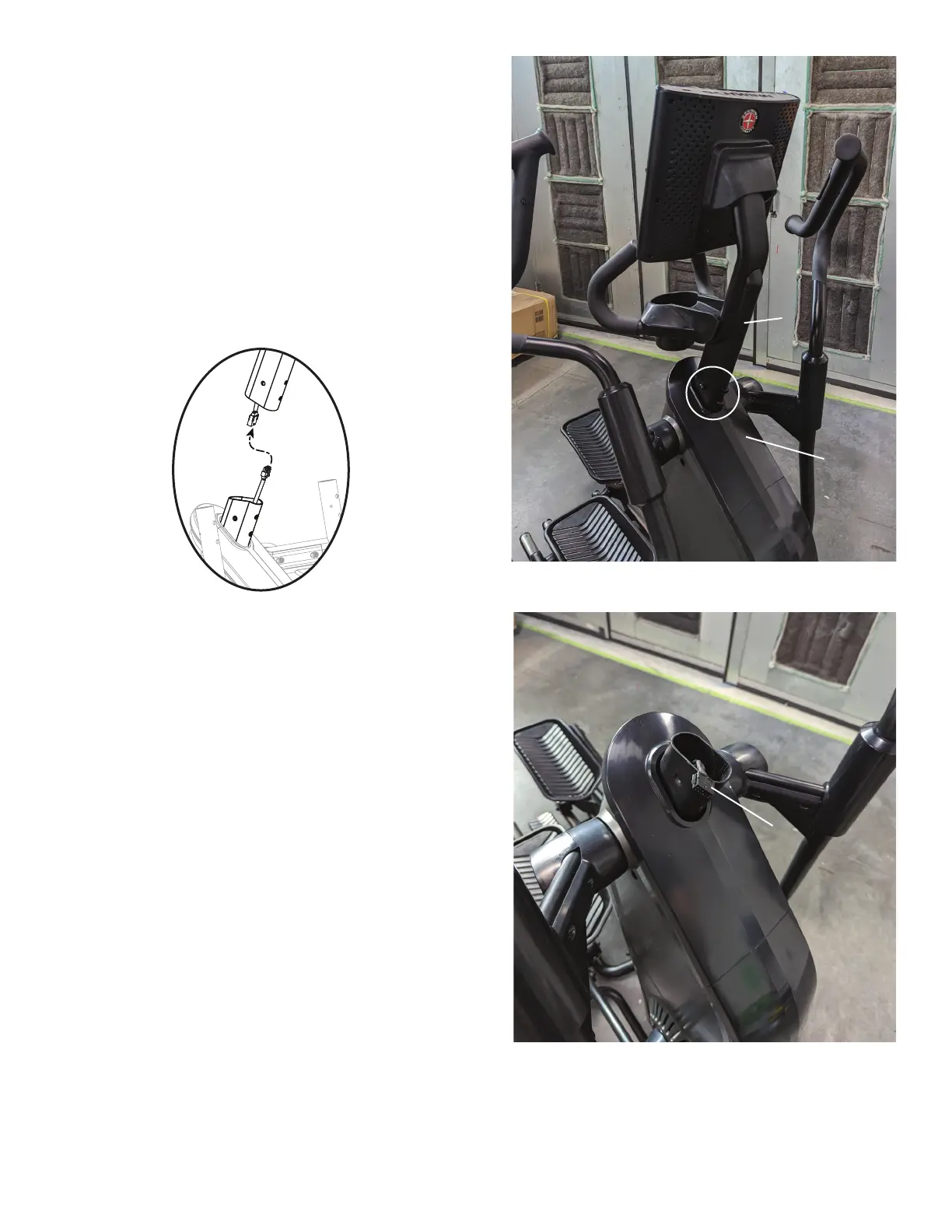

Section 2 - Replacing the Front Upper Shroud
1. If replacing the Upper Front Shroud, remove the
hardware (indicated with oval) that attaches the Console
Mastwitha6mmhexwrench.
2. Slightly lift the Console Mast from the Frame Assembly
and disconnect the Cables. Fully remove the Console Mast
with Cables.
Note: Do not pinch or cute the Cables. Do not allow the
Cable to fall into the Frame Assembly.
Console
Mast
Upper Front
Shroud
Console Cable
X4
6mm
