Schwinn 490e - Page 64

64
Upper Front
Shroud
X4
6mm

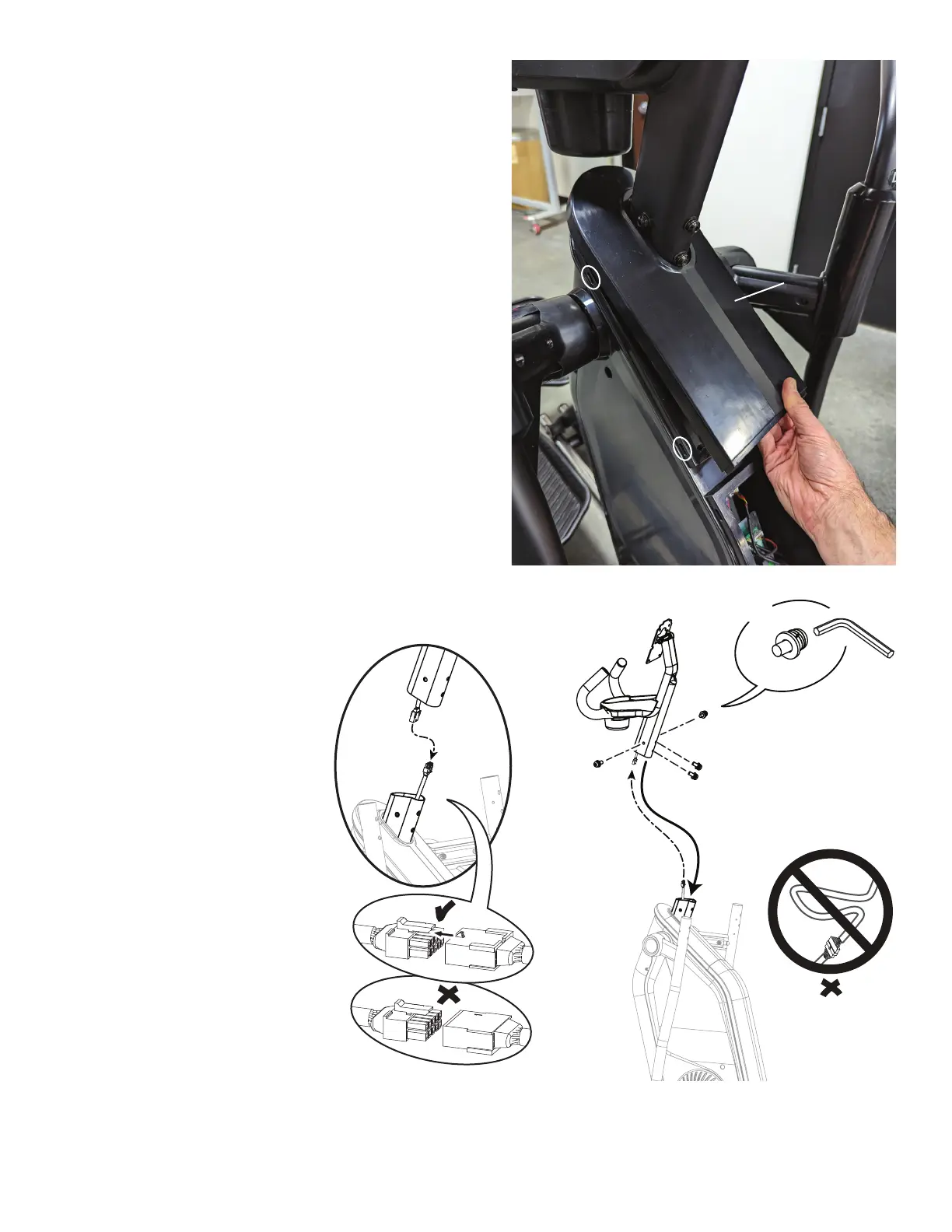

3. FlextheedgesoftheFrontUpperShroudtodisengage
the 4 inside tabs (2 on each side) from the Main Shrouds.
4. Place the new Front Upper Shroud onto the Frame
Assembly.
5. With the Console Mast, connect the cable to the cable
from the Frame Assembly. Align the clips on the cable
connectors and make sure the connectors lock.
NOTICE: Do not cut or pinch the cables. This step may
require two people.
6. Usinga6mmhexwrench,attachtheConsoleMastto
the Main Assembly.
NOTICE: Make sure the Console Cable does not fall
into the Console Mast. Do not cut or pinch the
cables.
