Section 3 - Replacing the Rear Shroud

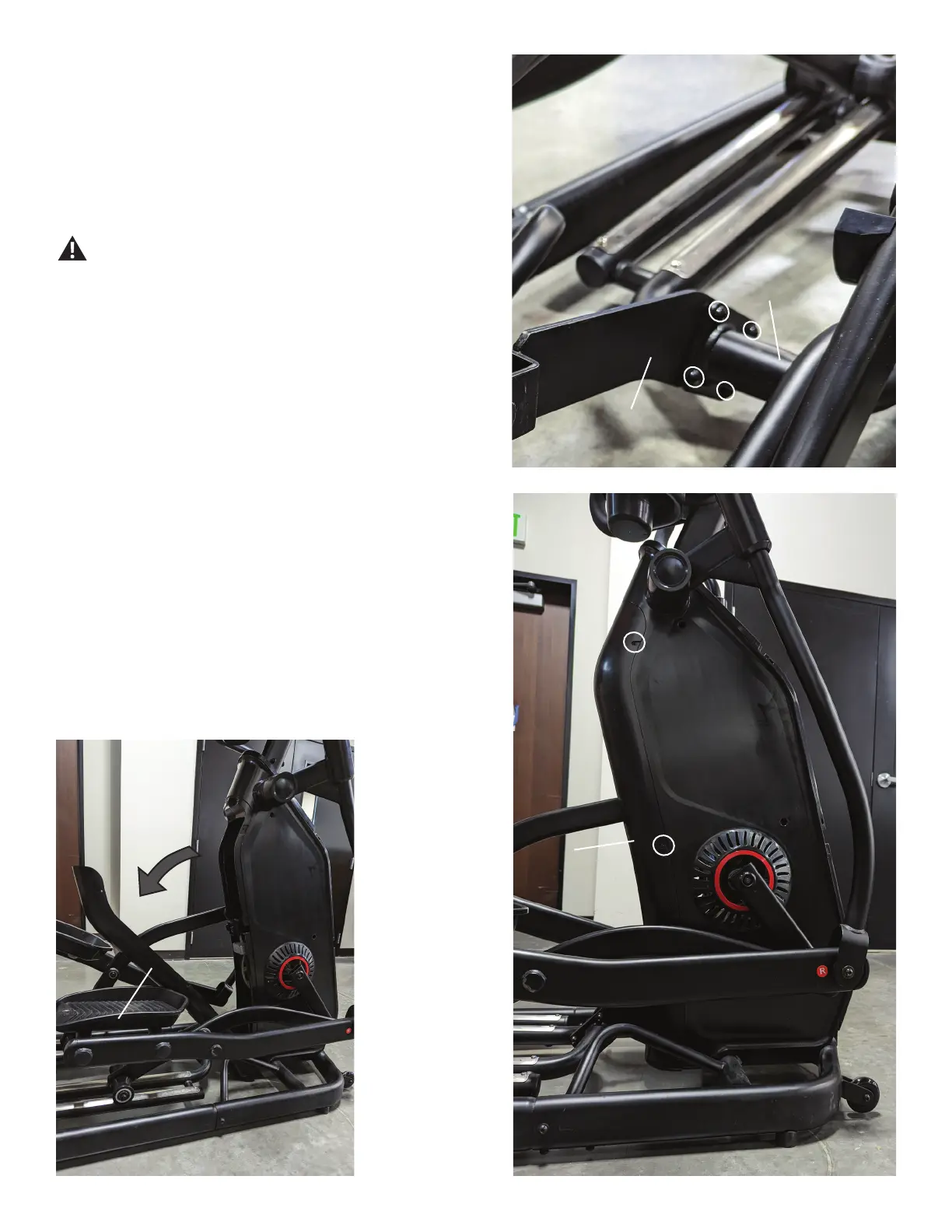

1. If replacing the Rear Shroud, the Incline Arm will need
tobereleased.Using6mmhexwrenchanda13mmopen
faced wrench, remove the indicated hardware that attaches
the Incline Arm.
2. Slide the Incline (Lift) Motor Arm from the Rail Assembly.
In order to avoid possible serious injury, when the
Rail Assembly has been released from the Main
Assembly, be careful to avoid ngers or hands
being caught or pinched. Do not place ngers or
hands below any pivoting parts of the Rail
Assembly.
3. Using a #2 Phillips screwdriver, remove the 4 screws (2
indicated on this side of the machine by ovals) from the Rear
Shroud.
4. Gently pivot the Rear Shroud down along the Incline
(Lift) Motor Arm and remove it.
Incline (Lift)
Motor Arm
Rear
Shroud
Rear
Shroud
Rail Assembly
