66
Section 4 - Replacing the Main Shrouds
(continued after previous sections)
Note: To replace the Main Shrouds, the Front Lower and
Rear Shrouds must be removed, and the Front Upper
Shroud needs to be resting unsnapped on the Main
Shrouds.

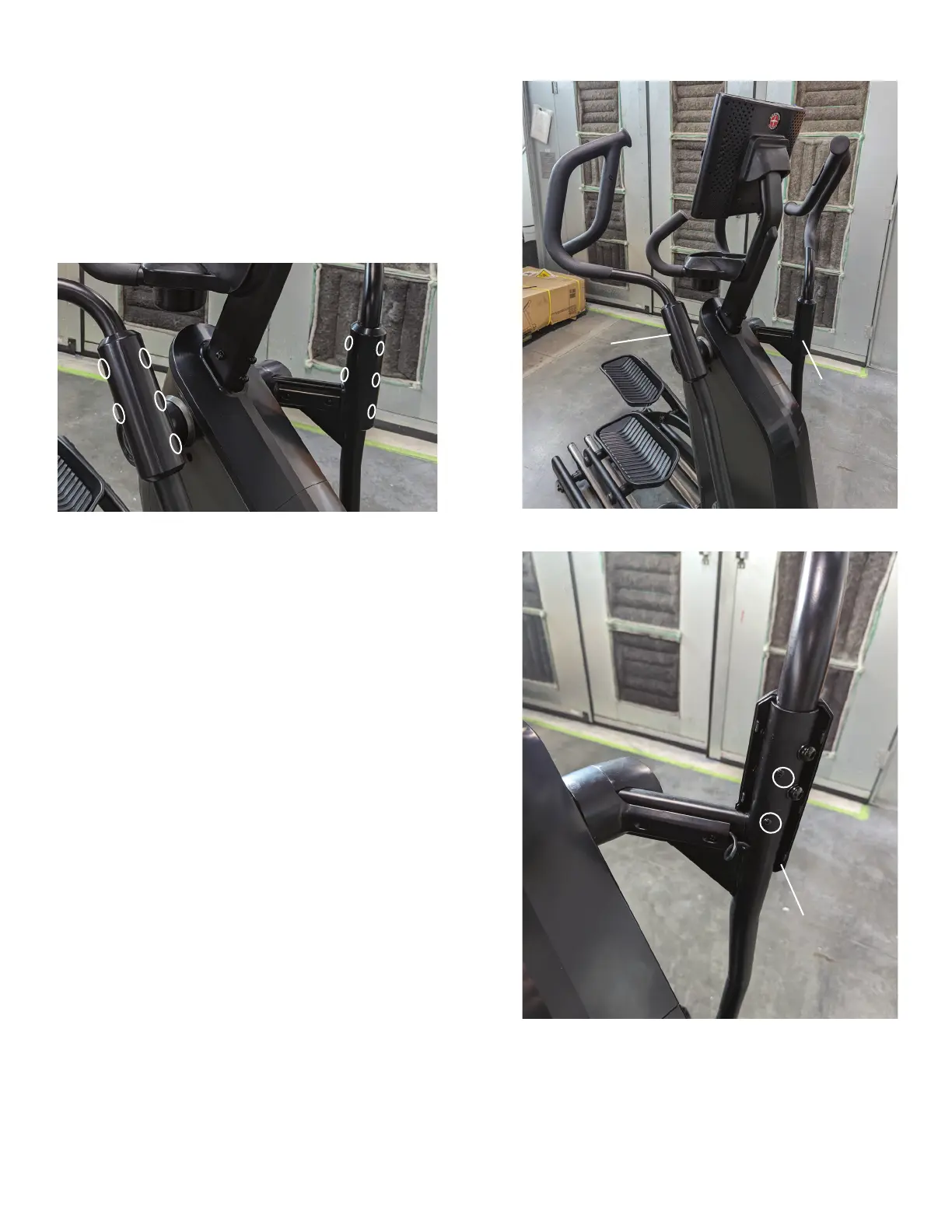

1. GentlycompresstheExteriorHandlebarCoverto
releaseitfromtheInteriorHandlebarCover.Thereareve
tabs that snap to secure each Cover.
2. Using a #2 Phillips screwdriver, remove the two screws
that attach the Interior Handlebar Cover to the Handlebars.
Set the hardware safely aside for reassembly.
Exterior
Handlebar
Cover
Interior
Handlebar
Cover
Exterior
Handlebar
Cover
