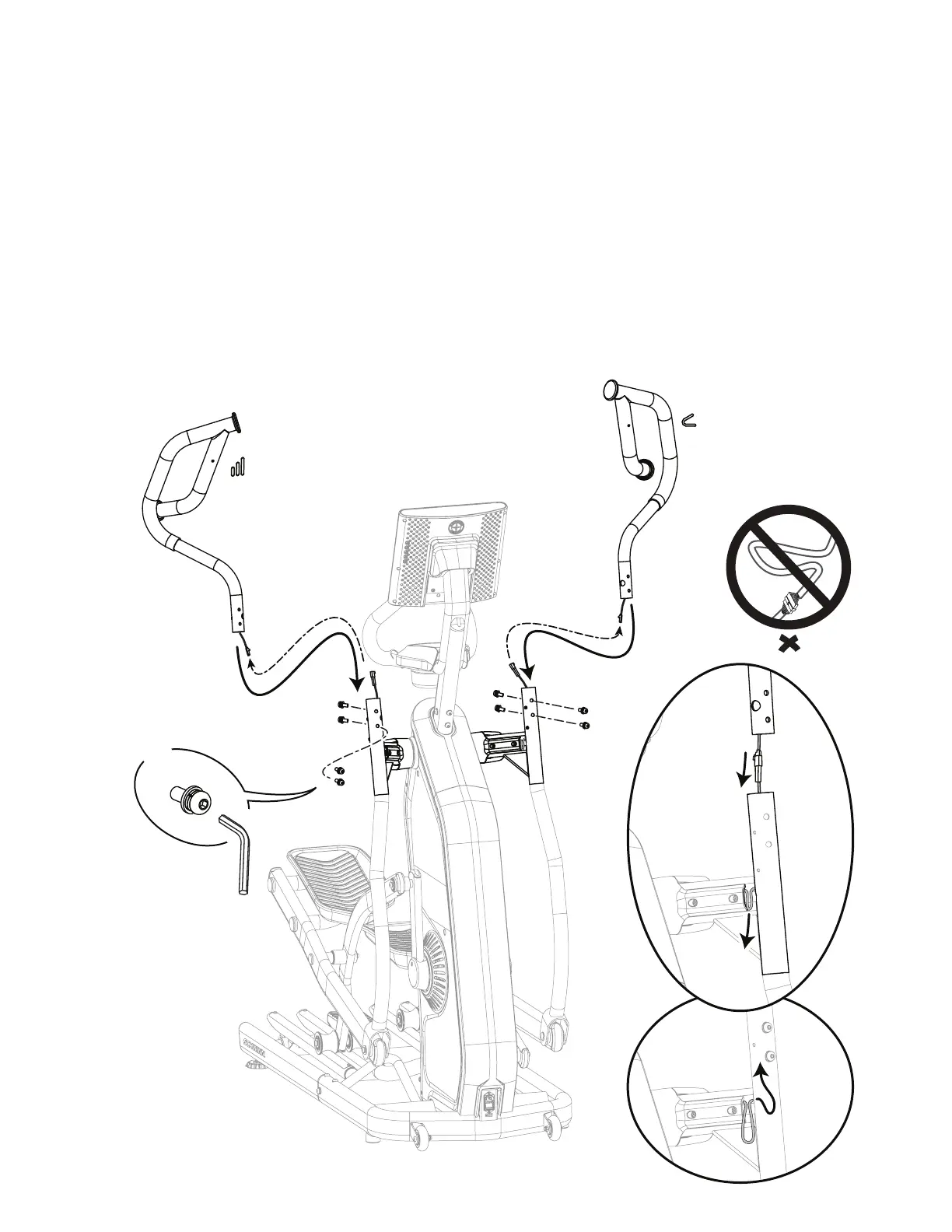

6. Connect the cable from the new Upper Handlebar to the
cable from the Lower Handlebar. Align the clips on the cable
connectors and make sure the connectors lock. Then safely
insert the Upper Handlebar being careful to avoid fingers or
hands being caught or pinched.
NOTICE: Do not cut or pinch the cables. This step may
require two people.
7. Usinga6mmhexwrench,attachthenewUpper
Handlebar.PushtheextrawiredownintotheConsoleMast.
NOTICE: Do not cut or pinch the cables. When the
UpperHandlebarisattached,pushtheex-
posed cables back into the Upper Handle-
bars as far as possible without damaging
them.
X8
6mm
