84

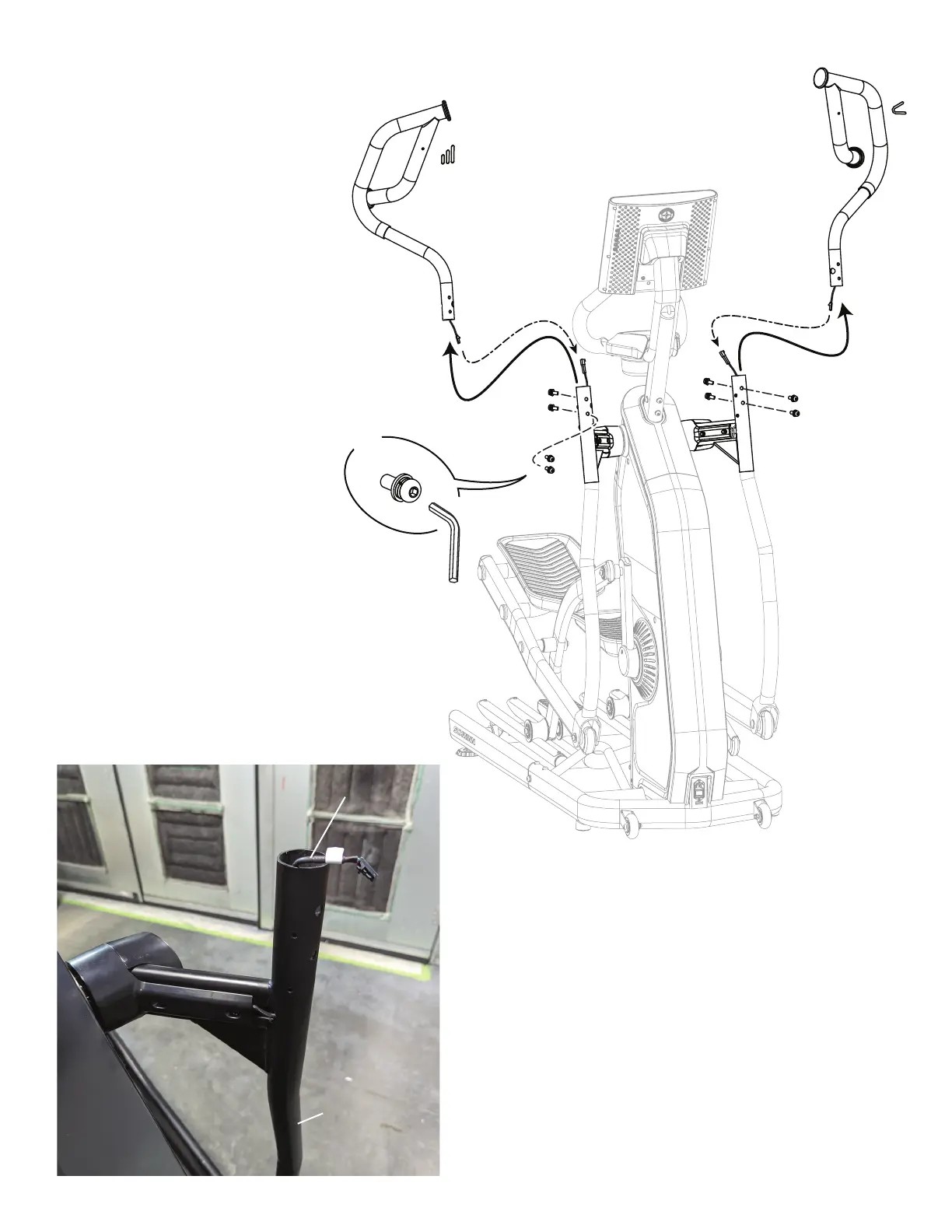

4. Usinga6mmhexwrench,removethefourscrewsthat
attach the Upper Handlebar to the Lower Handlebar.
X8
6mm
5. Slightly pull the Upper Handlebar out of
the Lower Handlebar, and disconnect the
cables. Set the old Upper Handlebar and
hardware safely aside.
NOTICE: Do not cut or pinch the cables.
Do not let the cable fall down
into the Lower Handlebar.
This step may require two
people.
Handlebar Cable
Lower Handlebar
