Assembly
Step 1
Ref. # Description Qty
1 Frame 1
A Front Stabilizer Bar with Wheels and Feet 1
B Rear Stabilizer Bar with Feet 1
46 13mm Hex Bolt 4
44 Flat Washer 8
45 13mm Lock Nut 4
Tools Required
Stamped Steel Combination Wrench 1
Adjustable wrench or 13mm Socket 1
Front
Rear
ATTENTION
The following steps utilize stainless steel hardware. Stainless
steel hardware is susceptible to “cold welding”, also known as
galling, if not handled properly. To reduce the chances for cold
welding, make sure you apply grease to the threads at the end of
the stainless hex bolts #46. When tightening the 13mm lock nuts
#45, turn them at a fairly low rotational speed. High rotational
speeds as well as lack of grease are common causes for cold
welding of stainless steel hardware.

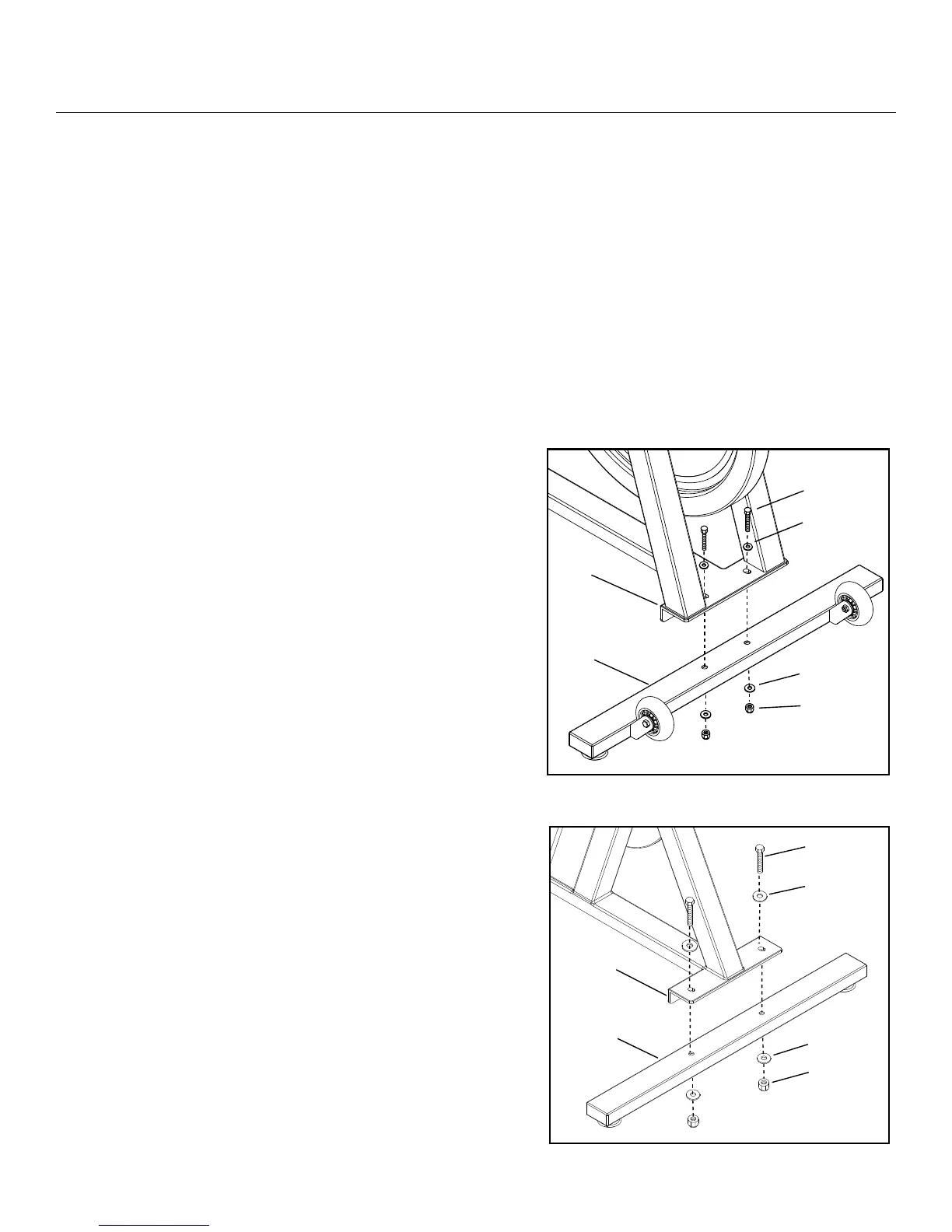

A. Position the Front Stabilizer Bar (A) on the frame bracket as
shown in the illustration.
B. Make sure the adjustable feet are on the bottom and the
transport wheels are facing up and toward the front of the
bike.
C. Attach Front Stabilizer Bar (A) to Frame (1) using two hex
bolts (46), four washers (44), and two lock nuts (45). Tighten
hardware firmly but do not over tighten as deformation of the
stabilizer tube may occur
D. At this time make sure that the adjustable feet with lock nuts
are screwed fully into the stabilizer.
E. Position the Rear Stabilizer Bar (B) on the frame bracket as
shown in the illustration.
F. Make sure the adjustable feet are on the bottom.
G. Attach Rear Stabilizer Bar (B) to Frame (1) using two hex
bolts (46), four washers (44), and two lock nuts (45). Tighten
hardware firmly but do not over tighten as deformation of the
stabilizer tube may occur
H. At this time make sure that the adjustable feet with lock nuts
are screwed fully into the stabilizer.
Assembly Manual
