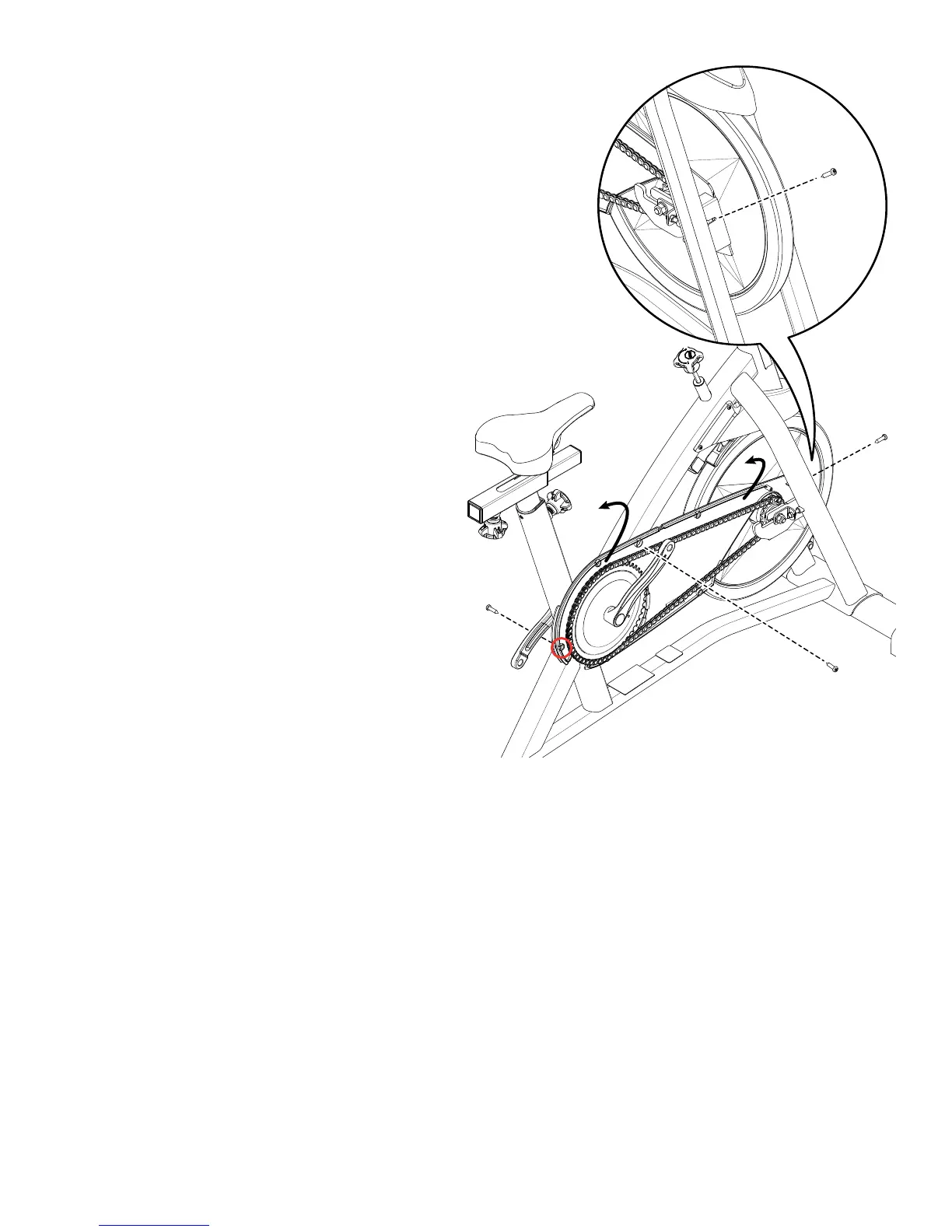

7. Loosen and remove the hardware that attaches the Chain
Guard Inside to the Main Frame. Set the hardware safely aside.
8. Carefully lift and slide the Chain Guard Inside forward
to disengage from the axles, then move it toward the rear of
the bike. Remove the Chain Guard Inside and set it safely aside for
reassembly.
