Note: Your machine may not match the image. For reference only.

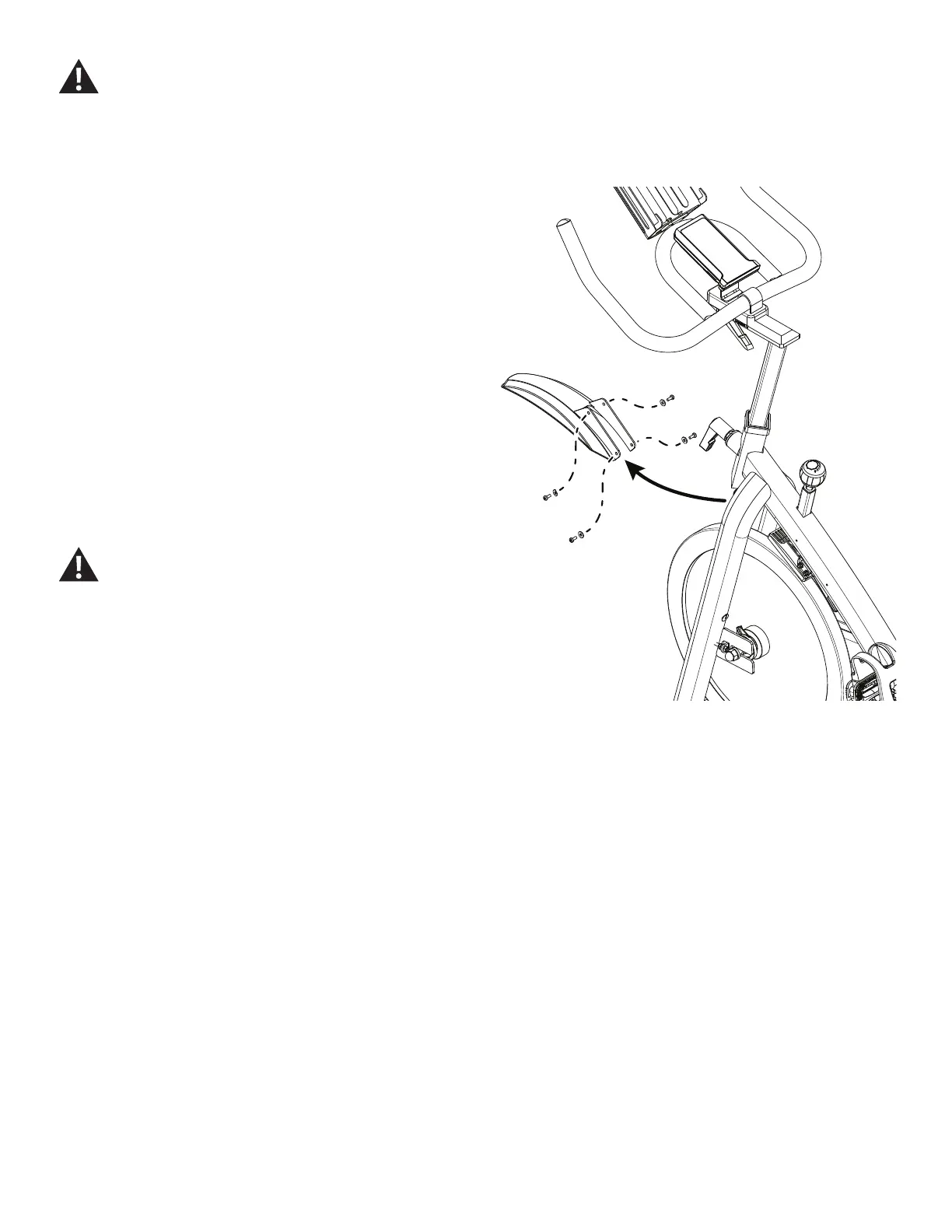

1. Loosen and remove the hardware that attaches the Fender to the
Main Frame. Set the hardware safely aside for reassembly.
NOTICE: Hold the Fender so that it does not fall.
2. Carefully remove the old Fender and set it safely aside.
NOTICE: Do not crimp the cable.
3. Installation is the reverse procedure.
NOTICE: Do not crimp the cable.
4. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully
assembled and inspected for correct perfor
mance in accordance with the Owner’s Manual.
Disconnect the data cable from the console before you service this machine.
