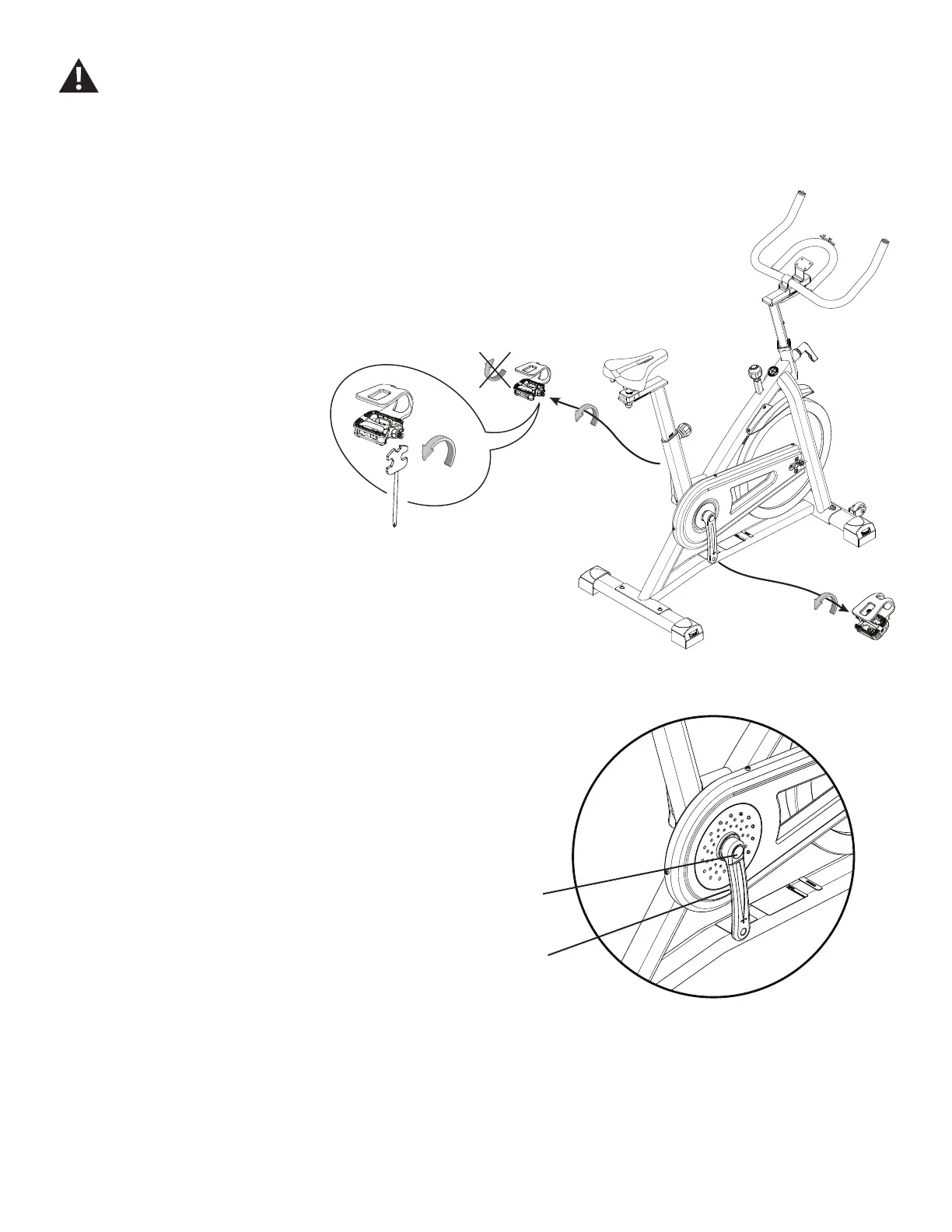

1. Loosen and remove the Pedal. Set it safely aside for reassembly.
Note: The Left Pedal is reverse-threaded. Orientation is based
from a seated position on the bike. The Left Pedal has an “L”,
the Right Pedal an “R”.
2. 8VLQJDÀDWKHDGVFUHZGULYHUUHPRYHWKHWKUHDGHG&DS%IURPWKH
Crank Arm (A).
Disconnect the data cable from the console before you service this machine.
%
A
Pedal not shown
