41

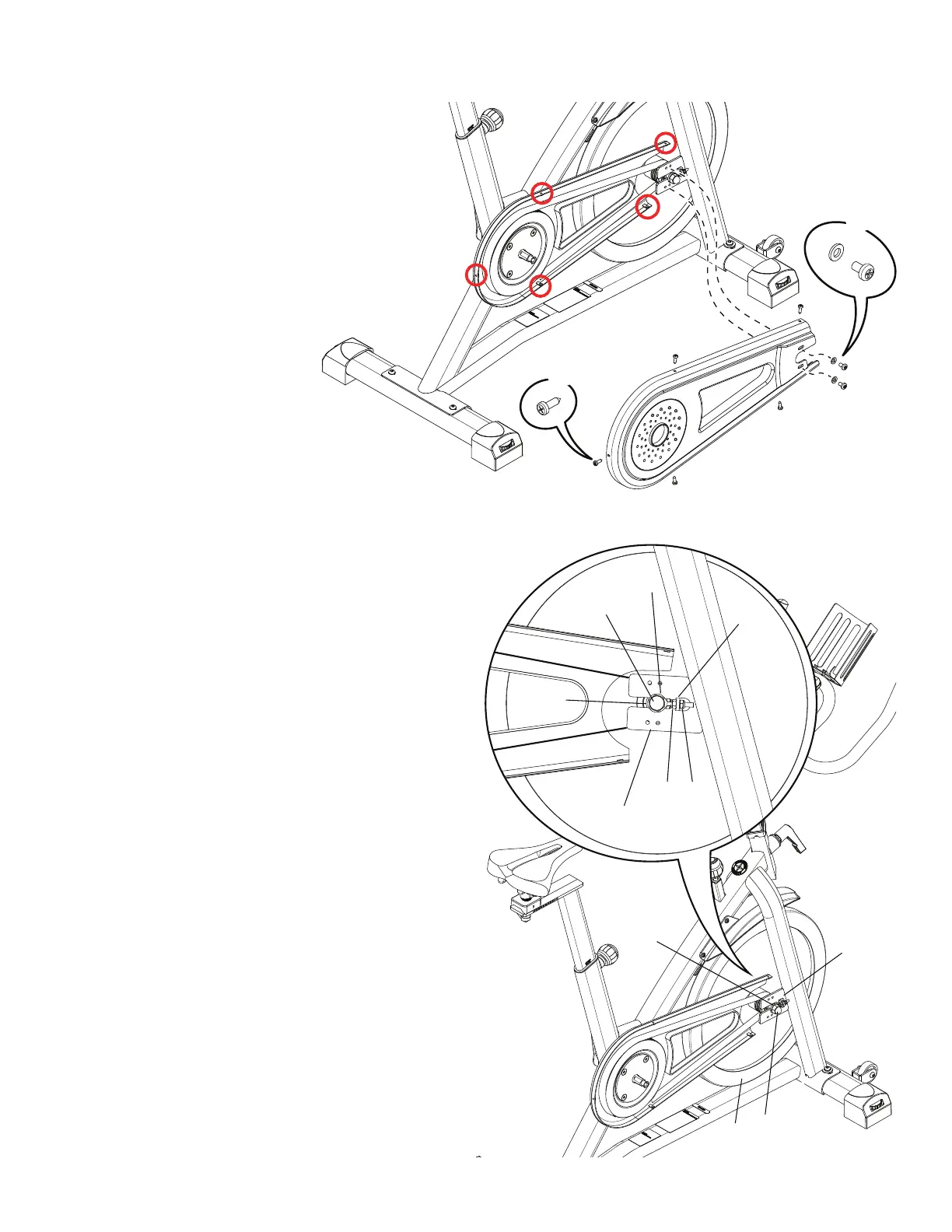

5. Remove the hardware that attaches the Drive Belt Cover to the Drive
Belt Inside, and set it safely aside for reassembly. Carefully remove the
Drive Belt Cover and set it safely aside for reassembly.
6. 0DUNWKHSRVLWLRQRIWKH)O\ZKHHO7HQVLRQHUV'RQWKHÀ\ZKHHO
brackets (E) on the Frame. Record the number of threads showing on
the Tensioner eyebolt on each side of the Tensioner support (E1) on the
bracket.
X5
X2
D
G
E
E
D
G
+
E1
F
J1
J2
