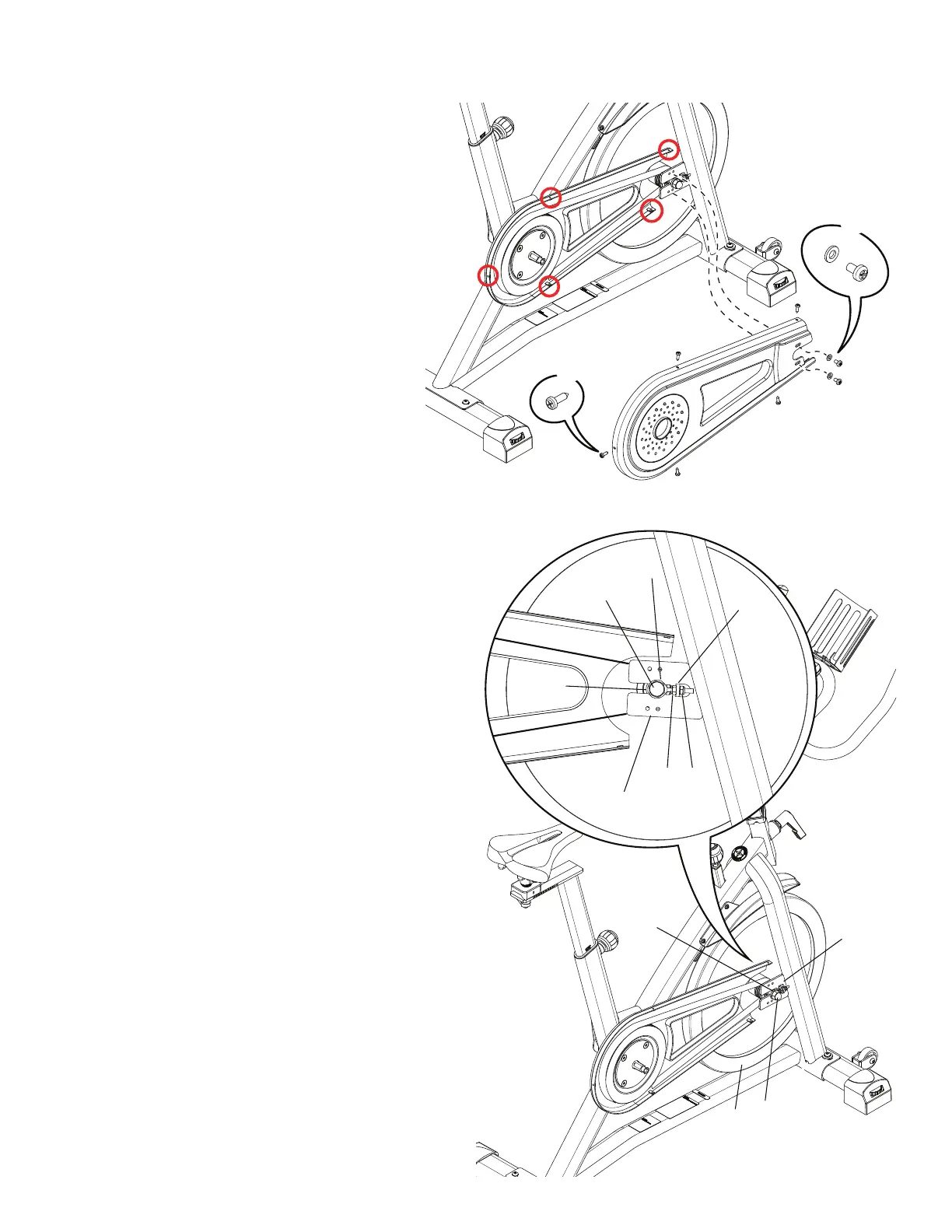

9. Loosen and remove the hardware that attaches the Drive Belt Cover
to the Drive Belt Inside. Carefully remove the Drive Belt Cover and set it
safely aside for reassembly.
10. 0DUNWKHSRVLWLRQRIWKH)O\ZKHHO7HQVLRQHUV*RQWKHÀ\ZKHHO
brackets (H) on the Frame. Record the number of threads showing on
the Tensioner eyebolt on each side of the Tensioner support (H1) on the
bracket.
