Figure 3.6
3
4

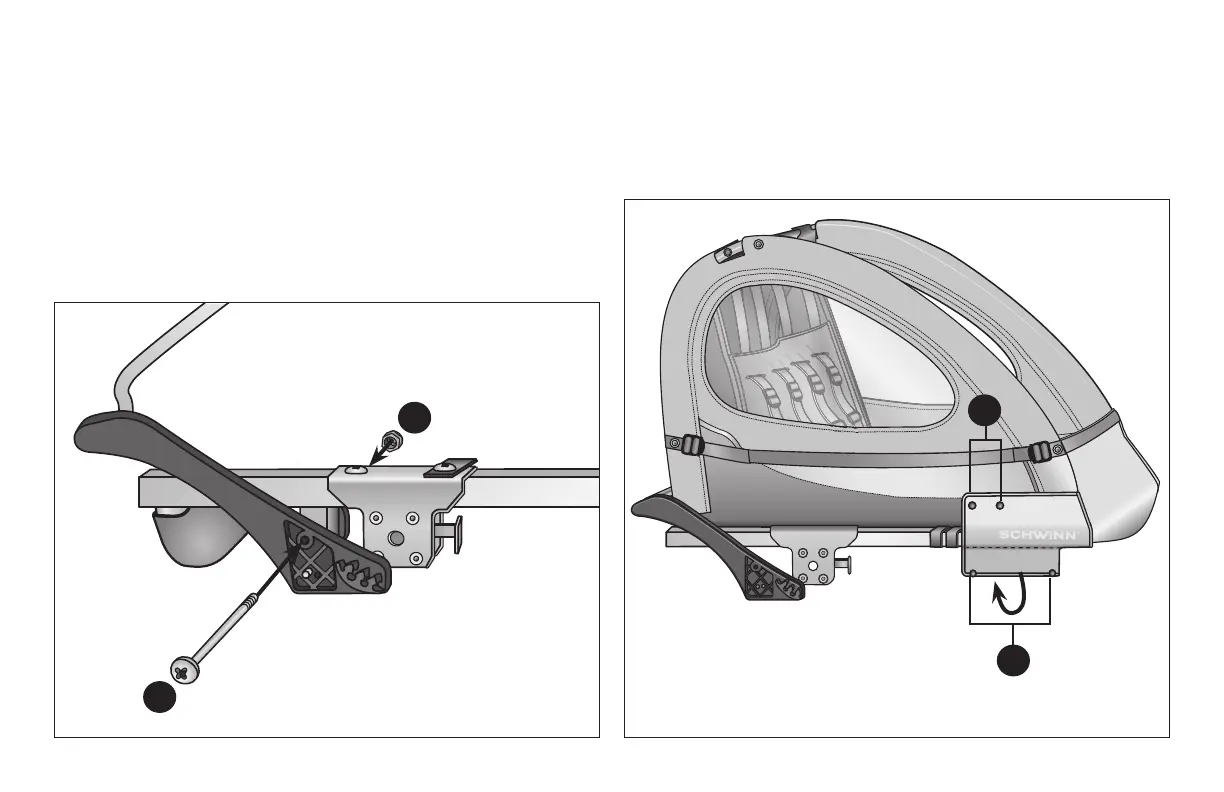

ATTACH THE BUMPER GUARD
❶ Snap the front, right ap of the trailer bumper guard to
the underside of the frame. Figure 3.7
❷ Snap the top of the ap to the side of the trailer wall.
❷ Be sure the top holes are aligned on the parking brake
bracket and the square tube.
❸ Insert the long screw through the hole of the parking
brake bracket and square tube.
❹ Fasten the small hex nut to the end of the long screw.
Tighten the screw using a phillips head screwdriver.
❺ Repeat steps one through four on the opposite parking
brake bracket. Figure 3.6
9 Schwinn Trailblazer Double Seat
1
Figure 3.7
2
