Schwinn Trailblazer - Trailer Attachment

4 Trailer Aachment
Washer
Hub nut
3
2
Slot
Tab
washer
1
2 mm
2 mm
2 mm
Use of the trailer without the safety strap aached to the
bicycle may result in serious injury or death. Always
aach the safety strap to the bicycle when using the
trailer.
Important! This secon provides instrucons for aaching the
trailer coupler to the bicycle’s REAR WHEEL with a hub nut or
quick release lever. The coupler aaches to most bicycles.
❶ To ensure secure aachment of the coupler to the bicycle,
be sure the thread of the rear axle extends at least 2 mm’s
from the hub nut before proceeding to the next step.

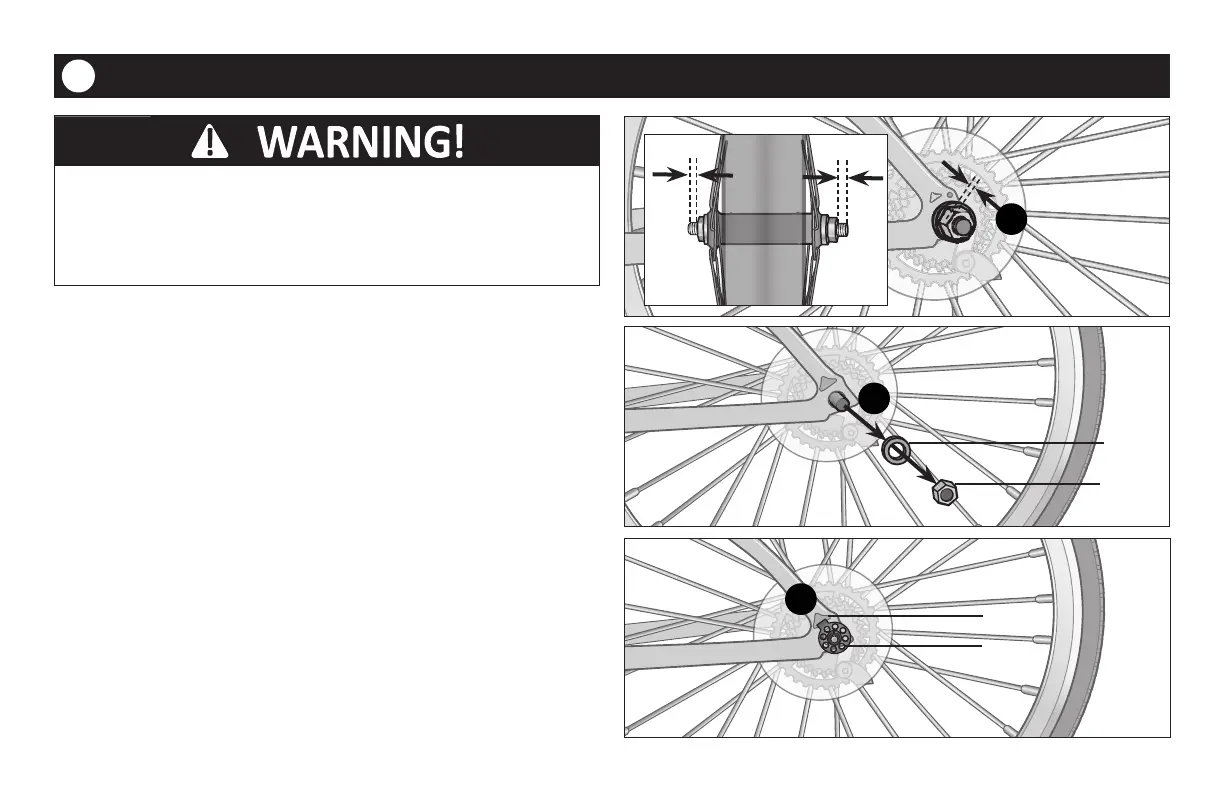

Figure 4.1
❷ Using a wrench, remove the hub nut and washer from the
bicycle’s back wheel. Figure 4.2
❸ Place the tab washer on the axle. Fit the tab into the slot
on the bicycle frame dropout. Note: If your bicycle frame
doesn’t have a slot in the drop out, rotate the tab to t
into the axle slot. Figure 4.3
Schwinn Trailblazer Double Seat 16
Figure 4.1
Figure 4.2
Figure 4.3
