3
4
Coupler
Incorrect
coupler
placement
Washer Hub nut
5
6

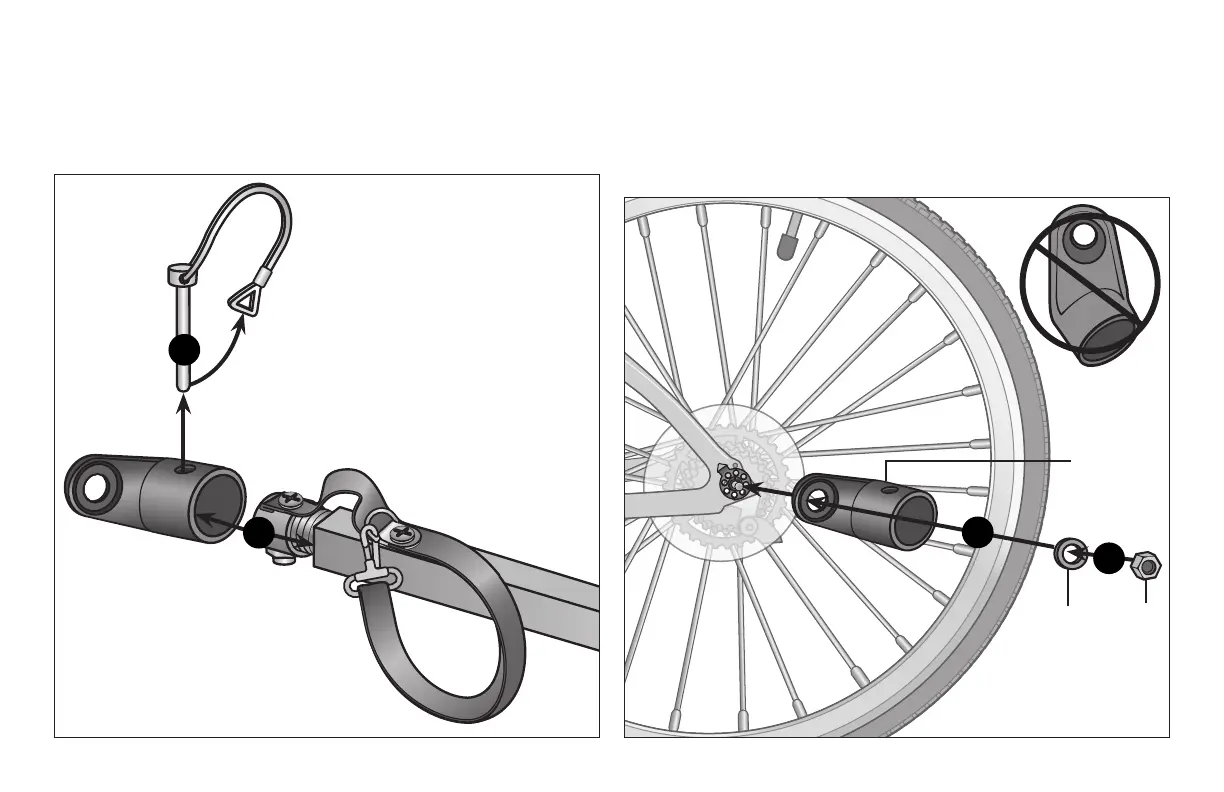

❸ Remove the safety loop from the end of the locking pin on
the end of the coupler. Figure 4.4
❹ Remove the locking pin from the coupler and slide the
coupler o the end of the tow bar.
❺ Insert the coupler plate onto the wheel axle. Place the
coupler in a horizontal posion so that it is in line with the
tow bar.
❻ Place the hub nut and washer back onto the axle and
ghten. Figure 4.5
17 Schwinn Trailblazer Double Seat
Figure 4.4 Figure 4.5
