ASSEMBLY
SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCI FI T
9

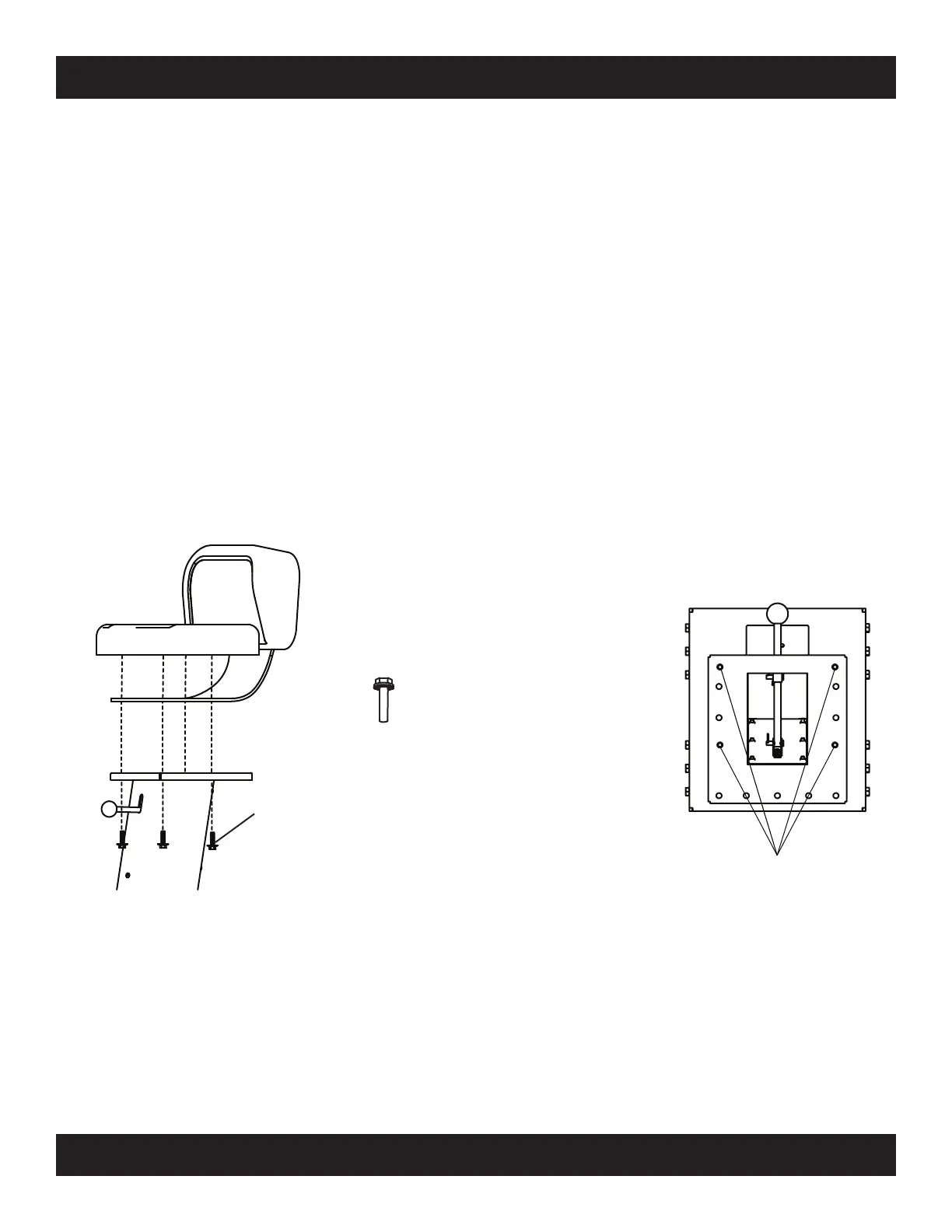

FIXED SEAT ASSEMBLY CONT’D
Align bottom seat pad holes
with these four hole locations
(Item #1) x 4
Step 2a: (2-Piece Seat Assembly)
a. Align the front two holes of the seat mount plate with the 1st set of holes of the fixed seat mount.
(see diagram), then insert (Qty. 1) of item #1 into one of the front holes to hold the seat mount plate
in place.
b. Align the front hole of the bottom seat pad with the inserted screw and loosely screw it into the seat pad.
c. Align the other front hole of the seat pad and loosely screw in (Qty. 1) of item #1 screw.
d. Align, then loosely screw in (Qty. 2) of item #1 into the two remaining rear holes.
e. Tighten all four screws to secure the bottom seat pad and plate mount.
Item #1 (x 2)
5/16-18 x 1.25 Serrated Screw
Tools Required:
1/2” Wrench or socket
Low back seat assembly
shown for clarity
