ASSEMBLY
SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCI FI T
11
During shipment it is possible that the two set screws securing the crank hub to the shaft may become slightly loose.
It is strongly recommended that these set screws be checked before attaching the crank handles.
The following steps will explain this procedure.
Tools Required:
5/ 16 Hex bit
Torque w rench set for 480 in/ lbs (5.54 Kg/m)

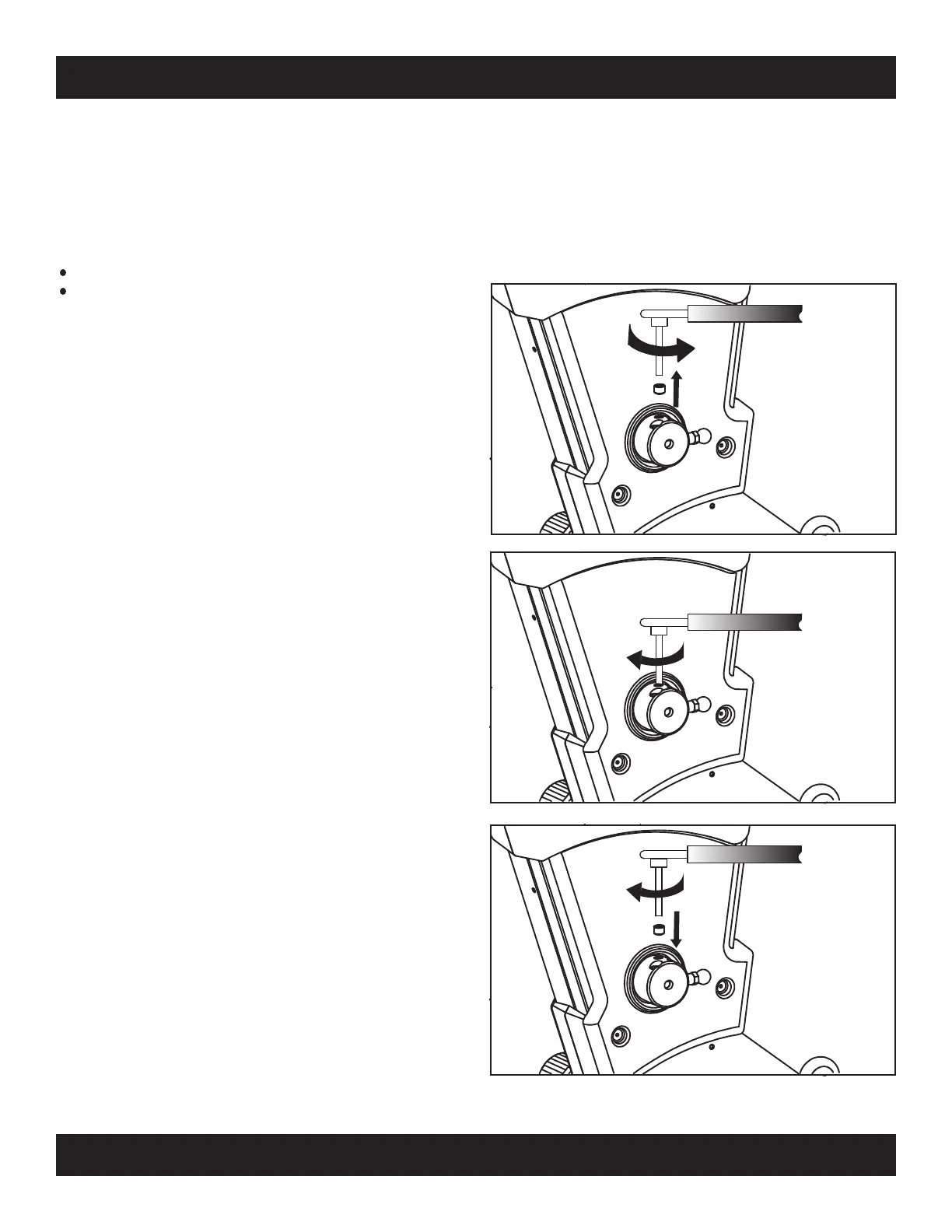

Step 1:
Starting on the right side, use a 5/16 Hex bit to remove the
1st set screw #P3110 (5/8-18 x .5 Socket) and place to the
side.
Step 2:
Using a 5/16 Hex bit and Torque wrench set at 480 in/lbs.
Insert the bit into the crank hub to reach the 2nd set screw
#P3111 (5/8-18 x .75 Socket) and TIGHTEN to the 480 in/lb
setting on the wrench.
Note: The w rench w ill click w hen it has reached the
48
0 in/ lb (5.54 Kg/m) setting.
Step 3:
Again using a 5/16 Hex bit and Torque wrench set at
480 in/lbs, reinsert the set screw removed in step 1 into the
crank hub and TIGHTEN to the 480 in/lb setting on the
wrench.
Step 4:
Repeat steps 1 thru 3 for the left side.
Verify Lower Cranks Are Secure (PRO2 Only)
Adjustable Lower Cranks (PRO2 Only)
