M
181
SCION xA (EM00D0U)
[A] : System Title

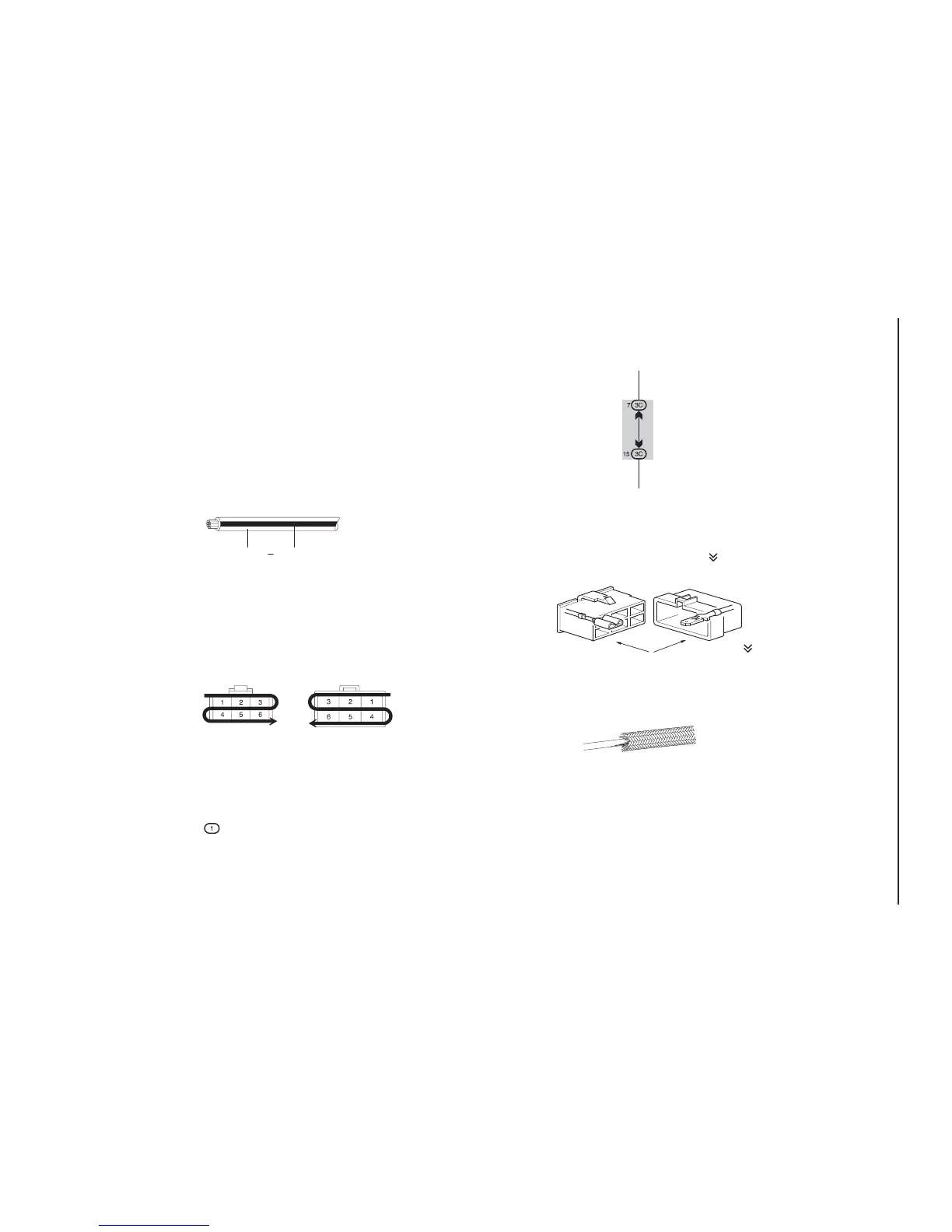

[B] : Indicates the wiring color.
Wire colors are indicated by an alphabetical code.
B = Black W = White BR = Brown
L = Blue V = Violet SB = Sky Blue
R = Red G = Green LG = Light Green
P = Pink Y = Yellow GR = Gray
O = Orange
The first letter indicates the basic wire color and the
second letter indicates the color of the stripe.
Example: L – Y
L
(Blue)
Y
(Yellow)
[C] : The position of the parts is the same as shown in
the wiring diagram and wire routing.
[D] : Indicates the pin number of the connector.
The numbering system is different for female
and male connectors.
Example :
Numbered in order
from upper left to
lower right
Numbered in order
from upper right to
lower left
Female Male
The numbering system for the overall wiring diagram is
the same as above
[E] : Indicates a Relay Block. No shading is used and
only the Relay Block No. is shown to distinguish
it from the J/B.
Example : Indicates Relay Block No.1
[F] : Junction Block (The number in the circle is the J/B No.
and the connector code is shown beside it).
Junction Blocks are shaded to clearly separate them
from other parts.
3C indicates that
it is inside
Junction Block
No.3
Example:
[G] : Indicates related system.
[H] : Indicates the wiring harness and wiring harness
connector. The wiring harness with male
terminal is shown with arrows (
).
Outside numerals are pin numbers.
Female Male ( )
[I] : ( ) is used to indicate different wiring and
connector, etc. when the vehicle model, engine type,
or specification is different.
[J] : Indicates a shielded cable.
[K] : Indicates and located on ground point.
[L] : The same code occuring on the next page indicates
that the wire harness is continuous.
To Next Page
