SCION xA (EM00D0U)
G ELECTRICAL WIRING ROUTING

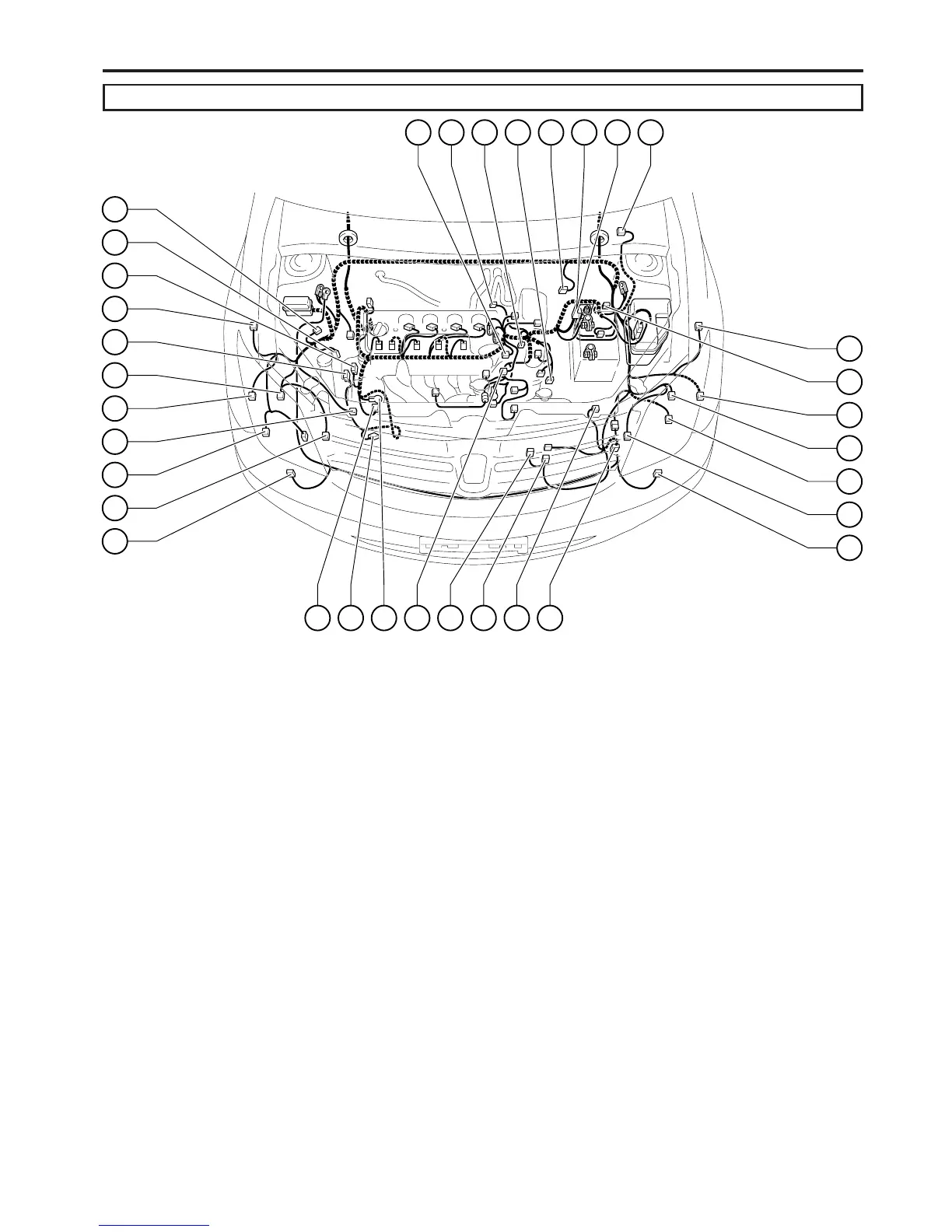

Position of Parts in Engine Compartment
C3
F6
C2
A4
A19
A6
H2
F8
F4
F2
F17
F5
A3
F7
H1
F3
F1
F1
6
C1 H3 B1 E1 B2 F10 F11 F9
E2G1A2G2 H5H4 A5 A1
A 1 A/C Condenser Fan Resistor
A 2 A/C Magnetic Valve
A 3 ABS Speed Sensor Front LH
A 4 ABS Speed Sensor Front RH
A 5 Airbag Sensor Front LH
A 6 Airbag Sensor Front RH
A19 A/C Pressure Sensor
B 1 Back–Up Light SW
B 2 Brake Fluid Level Warning SW
C 1 Camshaft Position Sensor
C 2 Camshaft Timing Oil Control Valve
C 3 Crankshaft Position Sensor
E 1 Electronically Controlled Transmission Solenoid
E 2 Engine Coolant Temp. Sensor
F 1 Front Parking Light LH
F 2 Front Parking Light RH
F 3 Front Side Marker Light LH
F 4 Front Side Marker Light RH
F 5 Front Side Turn Signal Light LH
F 6 Front Side Turn Signal Light RH
F 7 Front Turn Signal Light LH
F 8 Front Turn Signal Light RH
F 9 Front Wiper Motor
F10 Fusible Link Block
F 11 Fusible Link Block
F16 Front Fog Light LH
F17 Front Fog Light RH
G 1 Generator
G 2 Generator
H 1 Headlight LH
H 2 Headlight RH
H 3 Heated Oxygen Sensor (Bank 1 Sensor 1)
H 4 Horn (High)
H 5 Horn (Low)
