SCION xA (EM00D0U)
G ELECTRICAL WIRING ROUTING

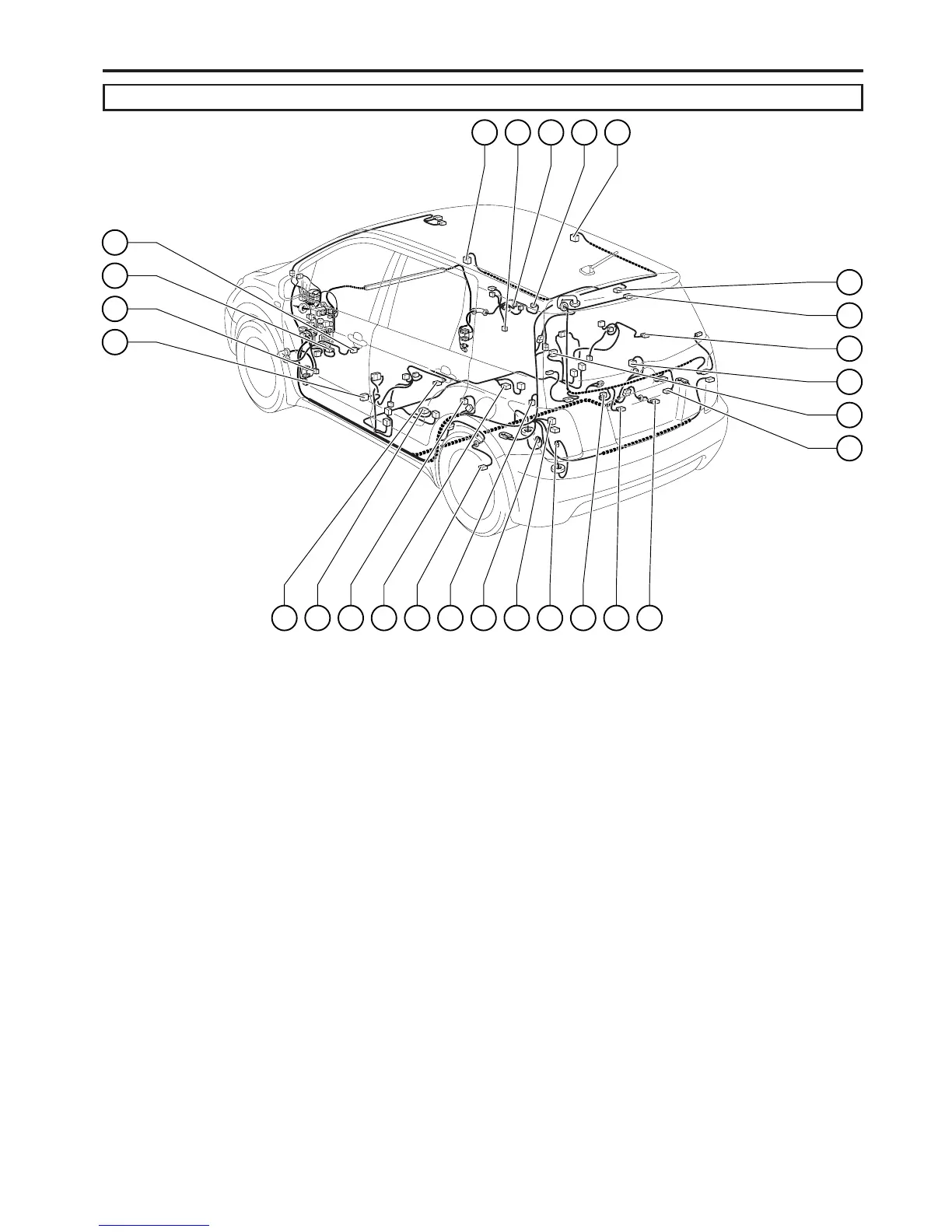

Position of Parts in Body
F13
D10
D8
D4
H7
D1
3
D7
L3
D5
L2
C15 D11 C16F14 D9
N2A15B7D6B6D12 J9 C17F15 B5 L1 A16
A15 ABS Speed Sensor Rear LH
A16 ABS Speed Sensor Rear RH
B 5 Back Door Courtesy SW
Back Door Lock Motor
B 6 Buckle SW LH
B 7 Buckle SW RH
C15 Curtain Shielded Airbag Squib LH
C16 Curtain Shielded Airbag Squib RH
C17 Canister Pump Module
D 4 Door Courtesy SW Front LH
D 5 Door Courtesy SW Front RH
D 6 Door Courtesy SW Rear LH
D 7 Door Courtesy SW Rear RH
D 8 Door Key Lock and Unlock SW Front LH
Door Lock Motor Front LH
Door Unlock Detection SW Front LH
D 9 Door Key Lock and Unlock SW Front RH
Door Lock Motor Front RH
D10 Door Lock Control SW LH
Power Window Master SW
D11 Door Lock Control SW RH
D12 Door Lock Motor Rear LH
D13 Door Lock Motor Rear RH
F13 Front Speaker LH
F14 Front Speaker RH
F15 Fuel Pump
Fuel Sender
H 7 High Mounted Stop Light
J 9 Junction Connector
L 1 License Plate Light LH
L 2 License Plate Light RH
L 3 Luggage Compartment Light
N 2 Noise Filter (Rear Window Defogger)
