Scion 2006 xA User Manual

30
SCION xA (EM00D0U)
G ELECTRICAL WIRING ROUTING

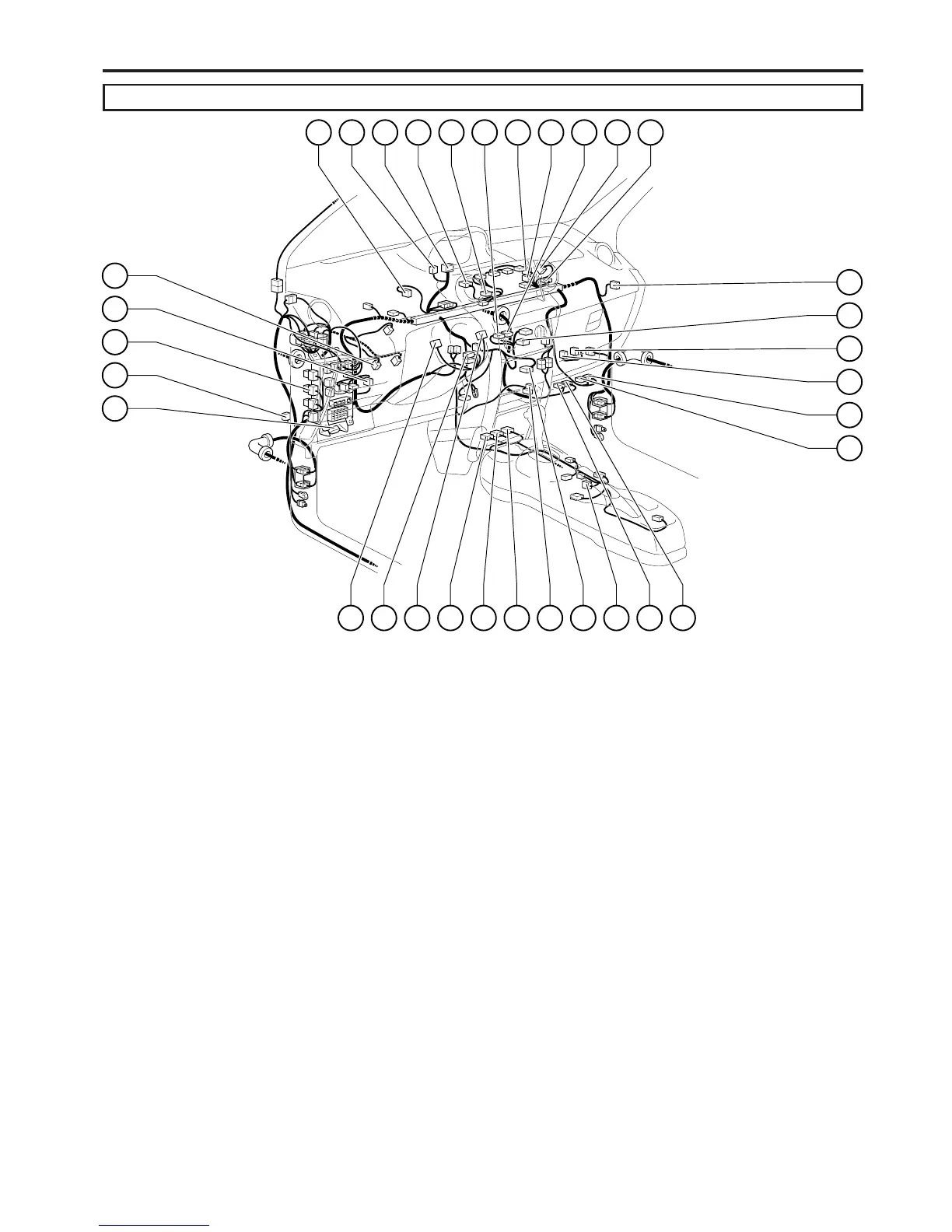

Position of Parts in Instrument Panel
D1
C9
F19
F18
D2
C7
B3
B4
A1
2
E6
E5
D3 C10 C11 F12 A14 A8 A7C5 A17 A18 C6
C14A13C12 A10A9 A11 C8 C4 H6 E3 E4
A 7 A/C Thermistor
A 8 Air Inlet Control Servo Motor
A 9 Airbag Sensor Assembly
A10 Airbag Sensor Assembly
A 11 Airbag Sensor Assembly
A12 Airbag Squib (Front Passenger Airbag Assembly)
A13 Airbag Squib (Steering Wheel Pad)
A14 Antenna Amplifier
A17 A/C Amplifier
A18 A/C Amplifier
B 3 Blower Motor
B 4 Blower Resistor
C 4 Center Cluster Box Illumination
C 5 Center Cluster SW
C 6 Center Cluster SW
C 7 Center Cluster SW
C 8 Cigarette Lighter
C 9 Clutch Start SW
C10 Combination Meter
C11 Combination Meter
C12 Combination SW
C14 Combination SW
D 1 Data Link Connector 3
D 2 Diode (Personal Light)
D 3 Door Lock Control Relay
E 3 Engine Control Module
E 4 Engine Control Module
E 5 Engine Control Module
E 6 Engine Control Module
F12 Foot Mode SW
Max Cool SW
Max Hot SW
F18 Front Fog Light Relay
F19 Front Fog Light SW
H 6 Heated Oxygen Sensor (Bank 1 Sensor 2)
