SCION xA (EM00D0U)
31
G

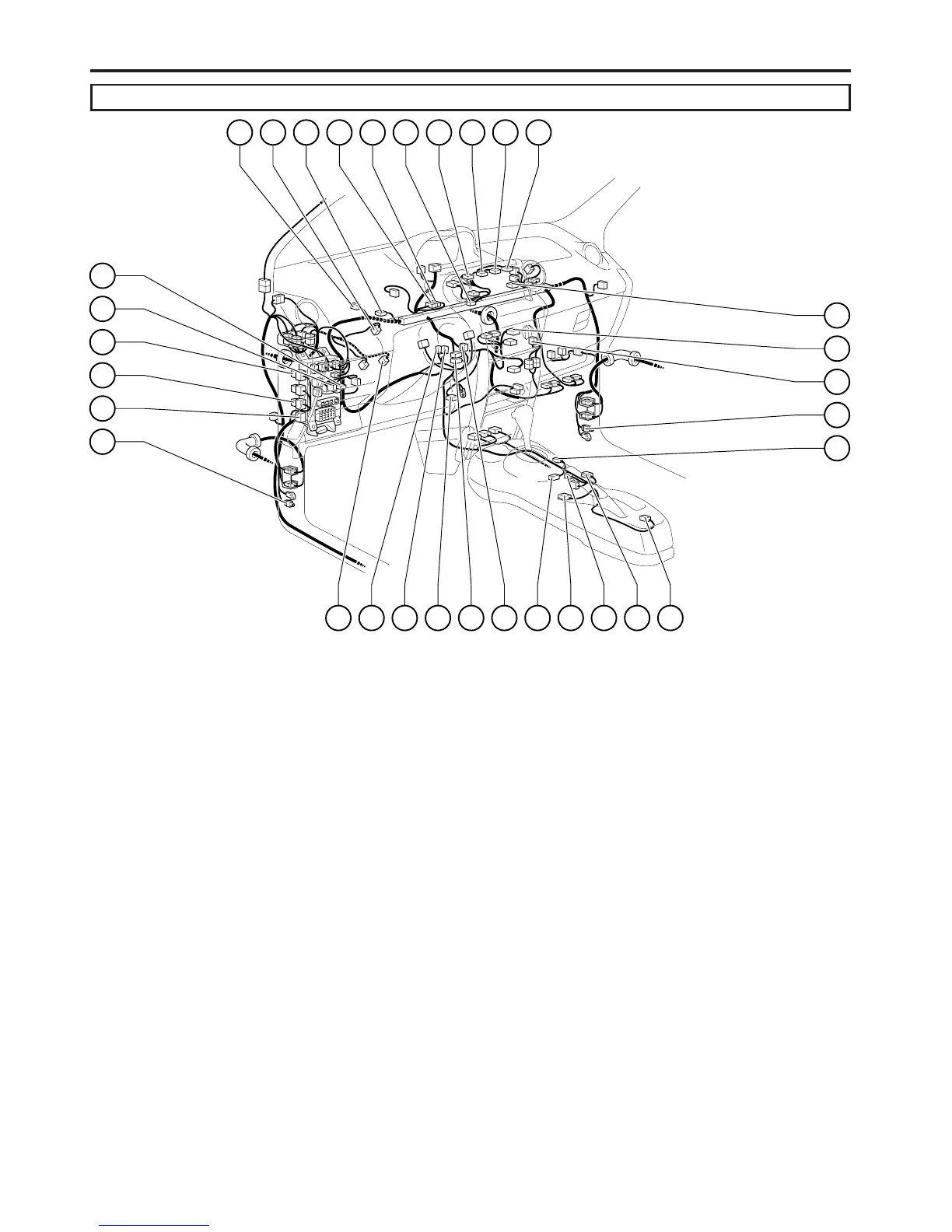

Position of Parts in Instrument Panel
R4
R6
R5
I11
J2
J1
J7
I12
Z6
J8
S4
J4J3V5 P6 J5 R2J10 R3 R16 R17
I10U1S6 S16 O2S15T6 Y1 P4Z7 S17
I 10 Ignition SW
I 11 Illumination Relay
I 12 Inside SW
J 1 Junction Connector
J 2 Junction Connector
J 3 Junction Connector
J 4 Junction Connector
J 5 Junction Connector
J 7 Junction Connector
J 8 Junction Connector
J 10 Junction Connector
O 2 O/D Main SW
Shift Lever Position Illumination
P 4 Parking Brake SW
P 6 PTC Heater
R 2 Radio and Player
R 3 Radio and Player
R 4 Rear Window Defogger Relay
R 5 Remote Control Mirror SW
R 6 Rheostat
R16 Radio and Player
R17 Radio and Player
S 4 Shift Lock Control SW
S 6 Stop Light SW
S15 Steering Sensor
S16 Spiral Cable
S17 Stereo Jack Adapter
T 6 TRAC Off SW
U 1 Unlock Warning SW
V 5 VSC Warning Buzzer
Y 1 Yaw Rate Sensor
Z 6 Option Connector (TVIP ECU)
Z 7 Option Connector (IPOD Unit)
