There are two types of wire harness for the instrument panel on xA.
Type A : The wire harness that uses the color–coded wire.
Type B : The wire harness that uses the same colored wire. (Not color–coded)
This means that there is a case where the wire harness used for even the same
section may have different colored wire depending on the models.
Therefore, the wire colors are also mentioned in this manual as follows.

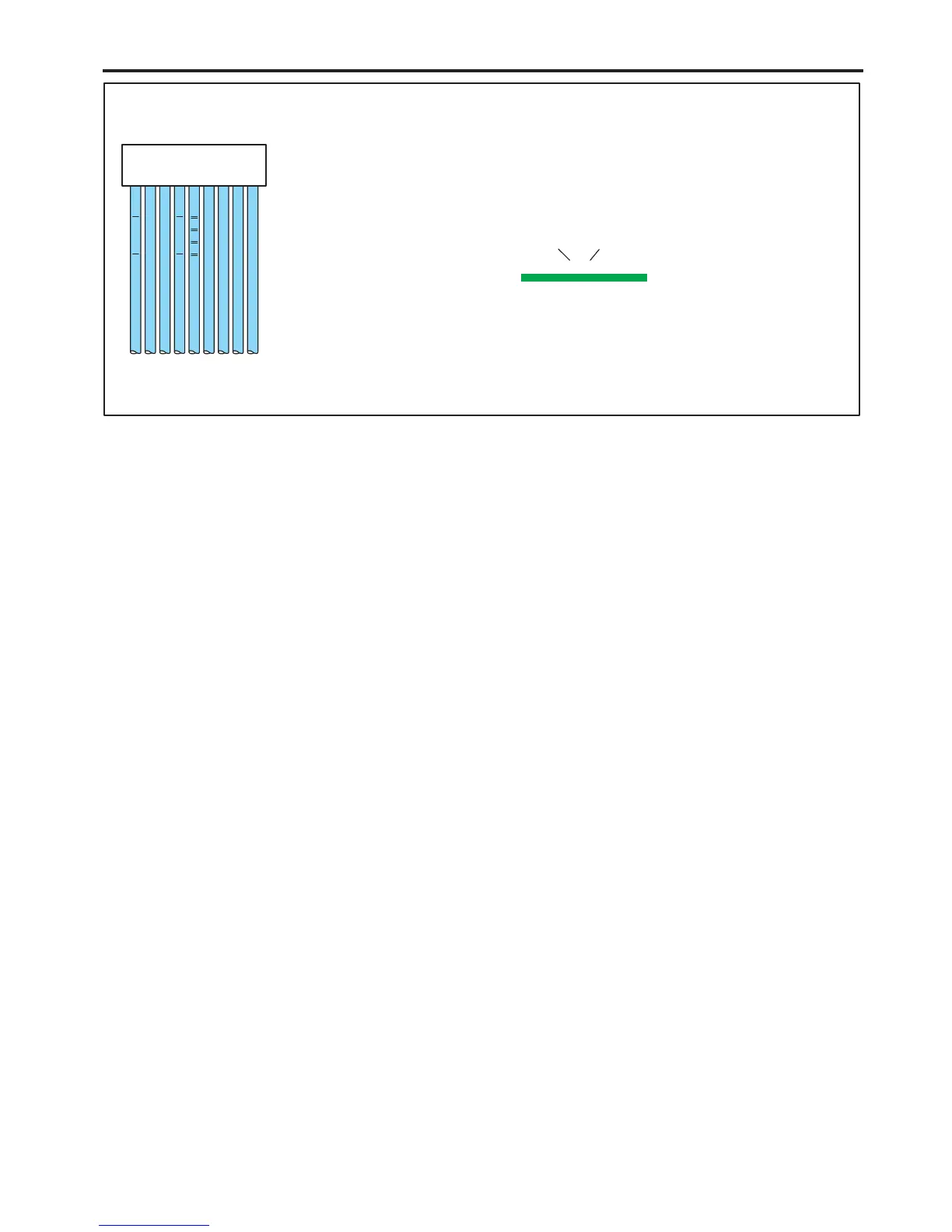

In case of using the same colored wires, each terminal number is printed on the wire
as shown in the illustration on the left in order to distinguish each wiring.
Be sure to connect the terminal to the same place as indicated by the terminal
number printed on the wire after disconnecting the terminal from the connector.
1234678
123467
9
98
5
5
5
5
Connector
SBG
()
<Example>
Type A Type B
40
SCION xA (EM00D0U)
HINT
To Next Page
