SCION xA (EM00D0U)
29
G

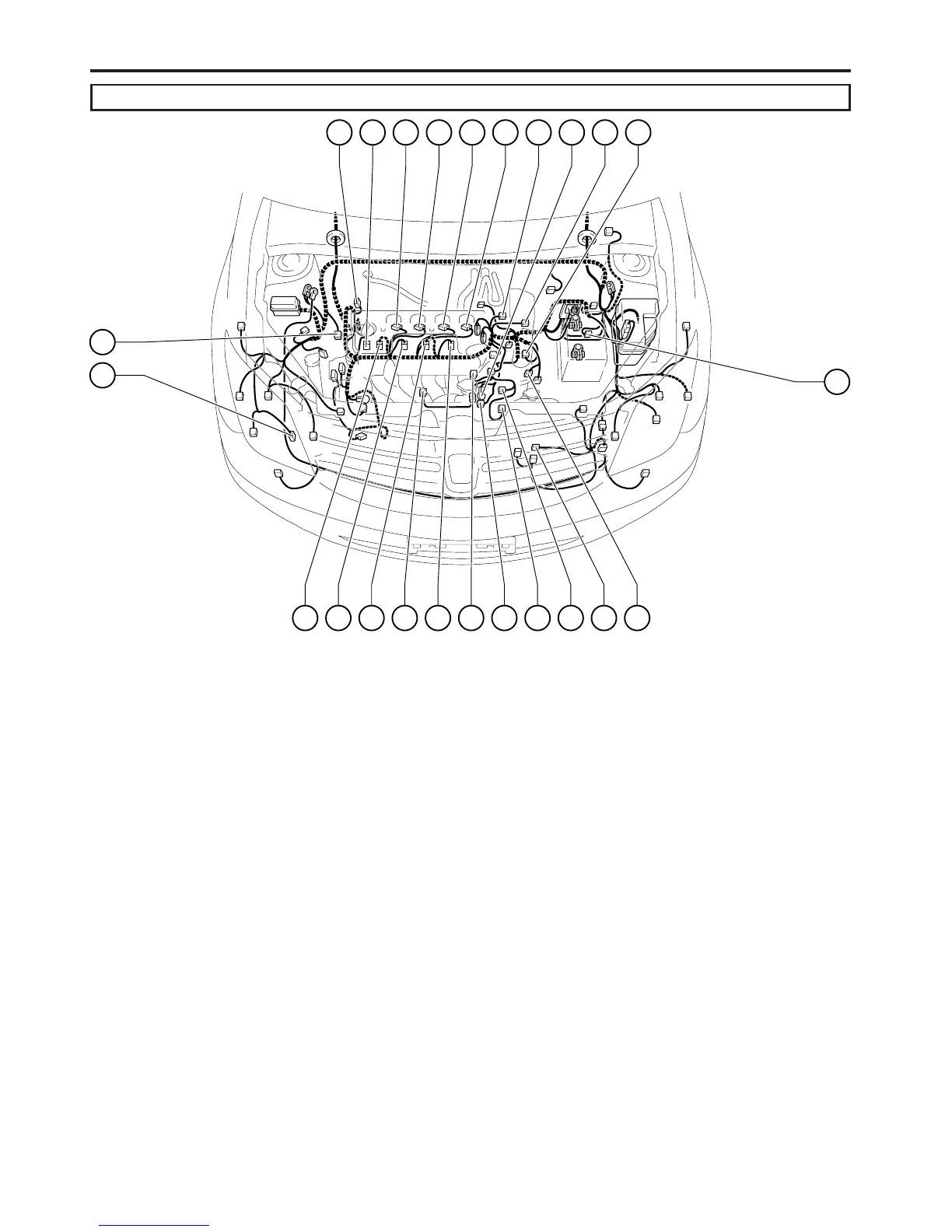

Position of Parts in Engine Compartment
Z3
W1
S1
P2 N1 I2 I3 I4 I5 P17 S2 M1 T2
I9K1I8I7I6 S3O1 I1 T1 R1 P1
I 1 Idle Air Control Valve
I 2 Ignition Coil and Igniter No.1
I 3 Ignition Coil and Igniter No.2
I 4 Ignition Coil and Igniter No.3
I 5 Ignition Coil and Igniter No.4
I 6 Injector No.1
I 7 Injector No.2
I 8 Injector No.3
I 9 Injector No.4
K 1 Knock Sensor (Bank 1)
M 1 Mass Air Flow Meter
N 1 Noise Filter (Ignition)
O 1 Oil Pressure SW
P 1 Park/Neutral Position SW
P 2 Power Steering Oil Pressure Sensor
P17 VSV (Purge)
R 1 Radiator Fan Motor
S 1 Skid Control Actuator with ECU
S 2 Starter
S 3 Starter
T 1 Throttle Position Sensor
T 2 Turbine Speed Sensor
W 1 Washer Motor
Z 3 Option Connector (TVIP Siren)
