36
SCION xA (EM00D0U)

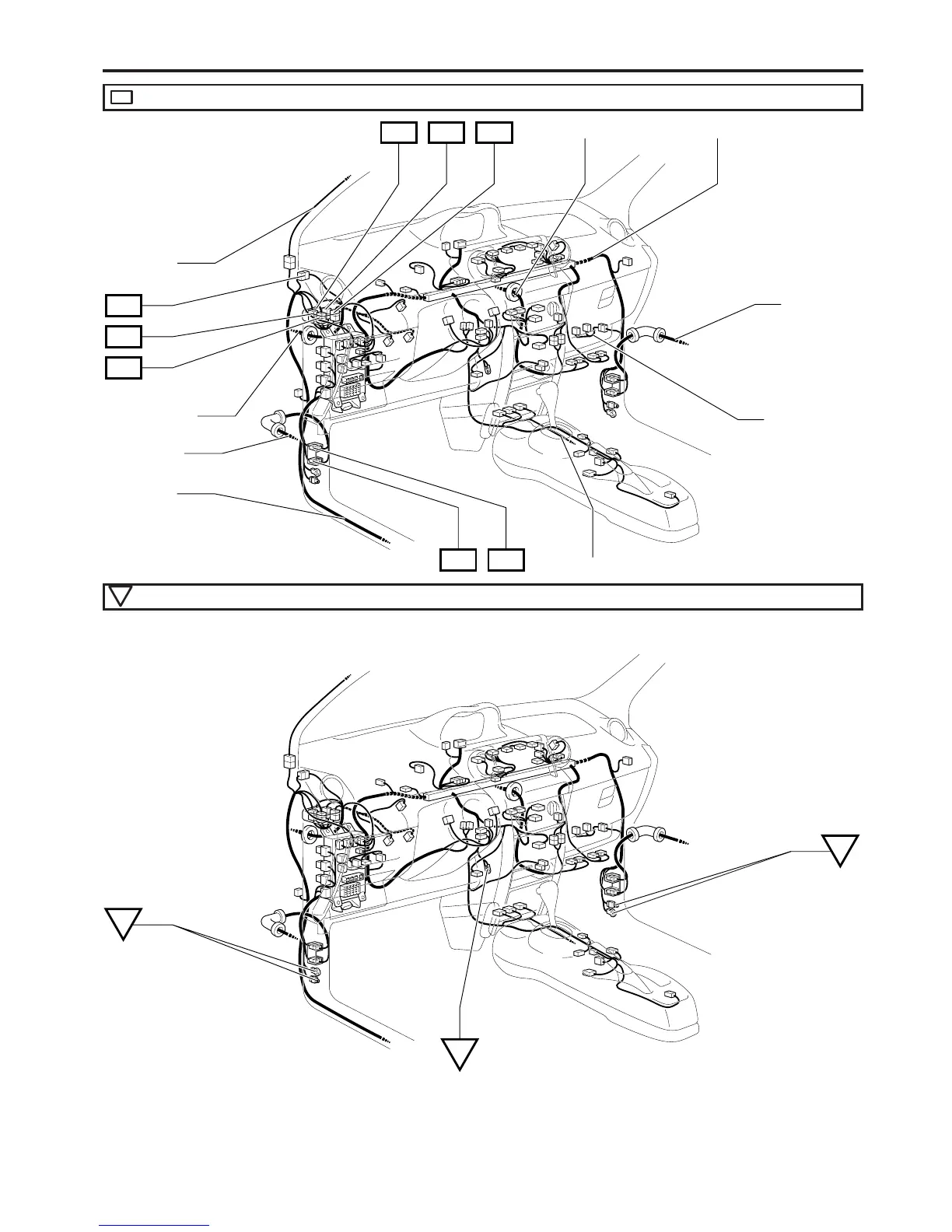

G ELECTRICAL WIRING ROUTING
: Location of Connector Joining Wire Harness and Wire
Harness
Instrument Panel Wire
Engine Wire
Front Doo
r
RH Wire
A/C Sub Wir
e
ID2
ID3
ID1
Floor Wire
IC1
IB1
IB2
Roof Wire
Floor Wire
Engine Room
Main Wire
Front Door
LH Wire
IA2
IA1
: Location of Ground Points
IF
IE
IG
36
38
Table of Contents
Contents
1
Introduction
2
How to Use this Manual
5
Stop Light
5
Ground Point
9
Engine Room R/B
10
Power Source
10
Power Source (Current Flow Chart)
10
Connector List
11
Part Number of Connectors
12
Continuity and Resistance Check
13
Troubleshooting
13
Voltage Check
13
Disconnection of Male and Female Conectors
14
Finding a Short Circuit
14
How to Replace Terminal
15
Abbreviations
18
Glossary of Terms and Symbols
19
Body
21
Engine Compartment
21
Relay Locations
21
Instrument Panel
22
Engine Compartment Left
23
Engine Compartment Right
24
Fusible Link Block
24
Instrument Panel J/B
25
Lower Finish Panel
25
Instrument Panel J/B Inner Circuit
27
Electrical Wiring Routing
29
Position of Parts in Engine Compartment
29
Position of Parts in Instrument Panel
31
Position of Parts in Body
33
Location of Connector Joining Wire Harness and Wire Harness
35
Location of Ground Points
35
Hint
41
Starting and Ignition
59
2006 Xa Electrical Wiring Diagram System Circuits
63
Charging
64
Front Wiper and Washer
66
System Outline
67
Rear Wiper and Washer
68
Power Window
70
Door Lock Control
74
ECT and A/T Indicator
78
ABS, TRAC and VSC
84
Multiplex Communication System – CAN
92
ABS Without VSC
94
Srs
98
Sliding Roof
102
Engine Control
106
Shift Lock
114
Key Reminder and Seat Belt Warning
116
Light Reminder
118
Remote Control Mirror
120
Cigarette Lighter
122
Horn
124
Rear Window Defogger
126
Audio System
128
Combination Meter
132
Combination Meter
134
Two Way Flow Heater
138
Headlight
142
PTC Heater
144
Radiator Fan and Condenser Fan
146
Air Conditioning
148
Front Fog Light
152
Turn Signal and Hazard Warning Light
154
Interior Light
158
Taillight and Illumination
160
Back–Up Light
166
Overall Electrical Wiring Diagram
195
System Index
231
