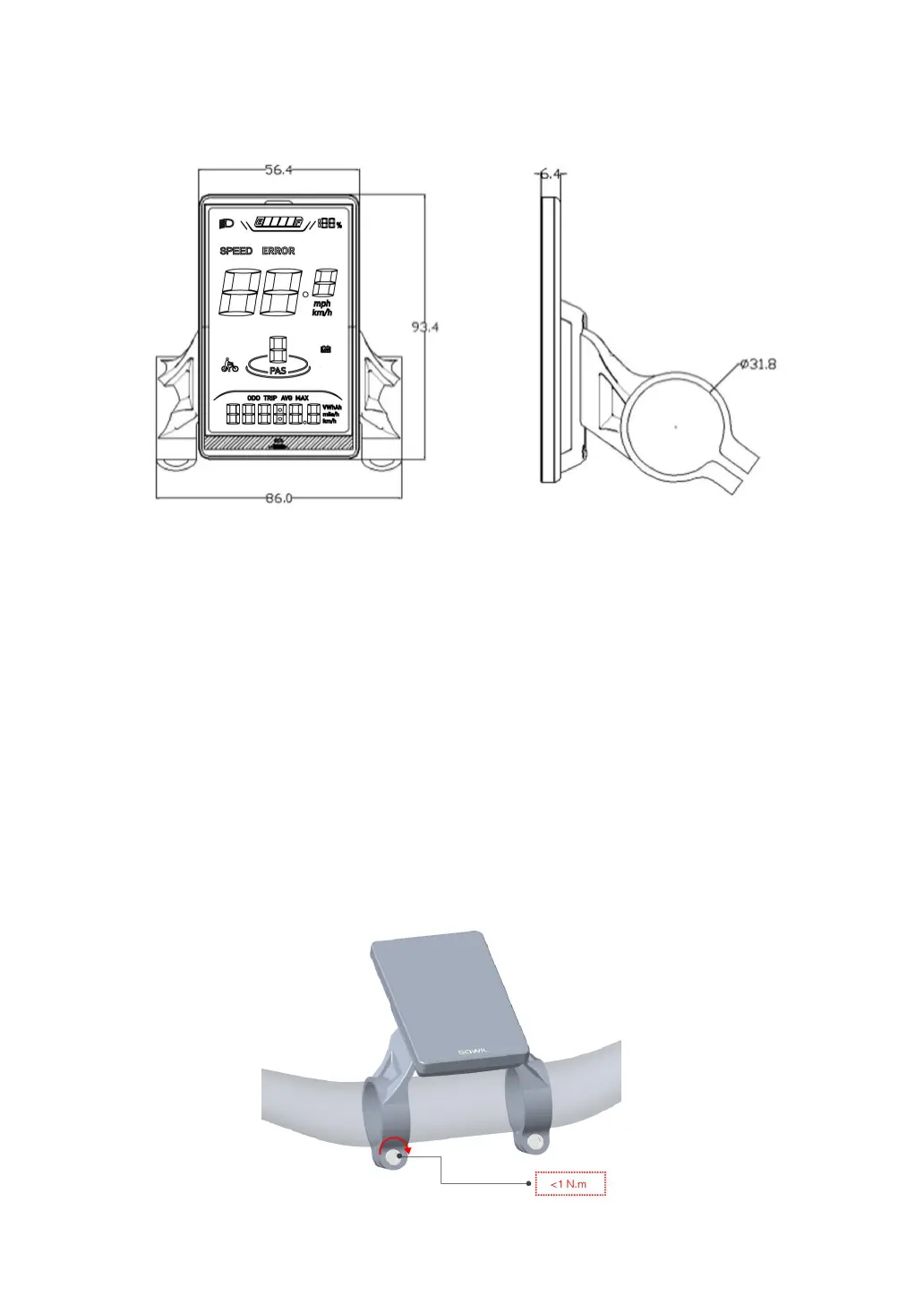

5. Size
6. Assembly
① Open the holder ring/rubber spacer of the display and fix the display on
the handlebar, adjust it to a proper facing angle. Use a M4 Hex Wrench to
fix and tighten the screws. Standard fixing torque: 1N·m.
*Damage due to excessive fixing torque is not covered by warranty.
②
Open the holder ring/rubber spacer of the keypad and fix it on the
handlebar, adjust it to a proper facing angle. Use a M3 Hex Wrench to fix
and tighten the screws. Standard fixing torque: 1N·m.
*Damage due to excessive fixing torque is not covered by warranty.
③ Plug the 5-pin connector of the display to the coupling connector of the
Controller.
To Next Page
