5
NAVIGATION CONNECTIONS (Optional):
Pink= Speed Pulse (VSS)
Violet/White= Park Brake (+12V when in reverse gear)
Brown= Telephone Mute (Mute Input for cell Hands-free kit)
Light Green= Parking Brake Trigger (0V when park brake is ON)
WIRE COLOR CODES
White = Left Front Positive (LF+)
White/Black = Left Front Negative (LF-)
Gray = Right Front Positive (RF+)
Gray/Black = Right Front Negative (RF-)
Green = Left Rear Positive (LR+)
Green/Black = Left Rear Negative (LR-)
Violet= Right Rear Positive (RR+)
Violet/Black = Right Rear Negative (RR-)
Black= Chassis Ground
Orange/ White = Illumination +12V
Yellow = 12V Constant Power
Blue/White = +12V Amp remote
Red = +12V Accessory / R.A.P
output (3A MAX)
Lt. Blue/Yellow = Steering Wheel Control
output (Kenwood)
3.5mm Male connector= Steering Wheel
Control Output:
Alpine, Clarion, JVC,
Pioneer, Sony
ITCGM01B WIRE COLOR CODES

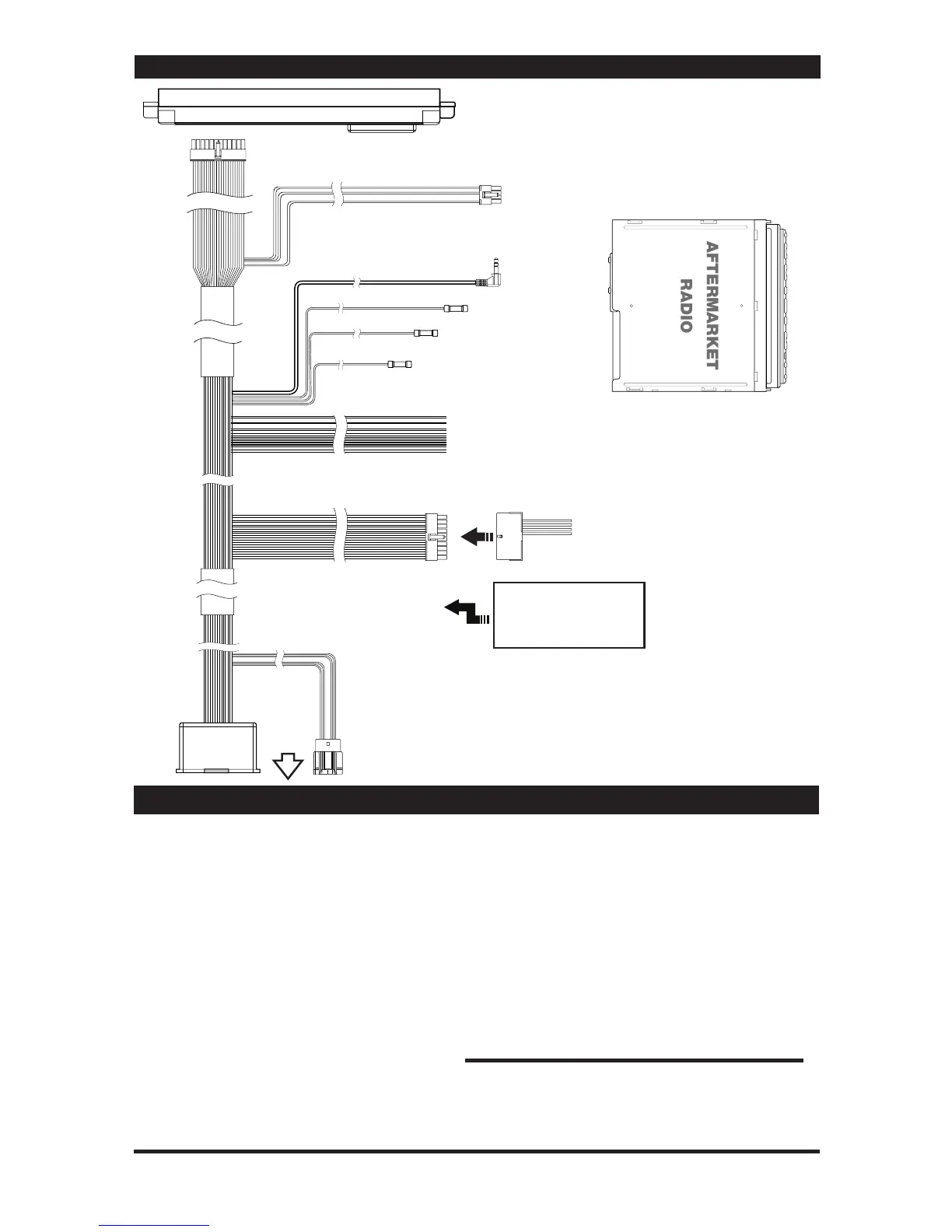

ITCGM01B WIRING DIAGRAM
Non-OnStar Bypass
Plug 20-Way Connector (Male)
Brown SWC Key 1*
3.5mm Jack Lead*
4-Way Connector [Hazard Button Connection (Female)]
24-Way Connector
To Back of UAC Module (Female)
Gray SWC Key 2*
SWC GND*
Use Wire
Color Codes
20-Way Connector (Female)
Both To Vehicle
Wiring Harnesses
18-way
Connector
(Male)
44-way
Connector
(Male)
To Next Page
