Vent Locking Tabs General Locations

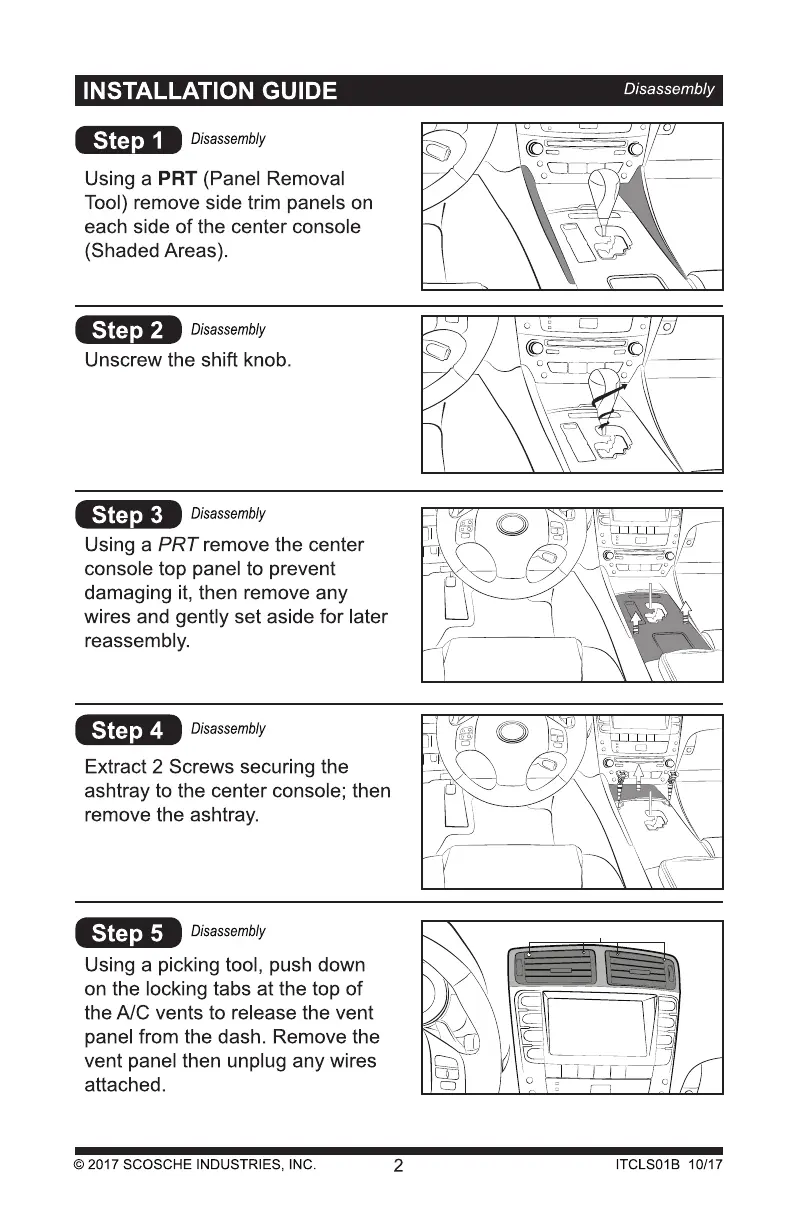

INSTALLATION GUIDE Disassembly
Using a PRT (Panel Removal
Tool) remove side trim panels
on
each side
of
the center console
(Shaded Areas).
I-it§
,f
..j
Disassembly
Unscrew the shift knob.
Using a
PRT
remove the center
console top panel to prevent
damaging
it,
then remove any
wires and gently set aside for later
reassembly.
Extract 2 Screws securing the
ashtray to the center console; then
remove the ashtray.
Using a picking tool, push down
on the locking tabs at the top
of
the A/C vents to release the vent
panel from the dash. Remove the
vent panel then unplug any wires
attached.
©2017
SCOSCHE INDUSTRIES, INC.
2
ITCLS0 1 B 10/17
