Scosche ITCLS01B - Step 6: Remove Radio;AC Panel Bolts; Step 7: Mount Brackets to Panel; Step 8: Secure Radio to Panel

Double Din Assembly

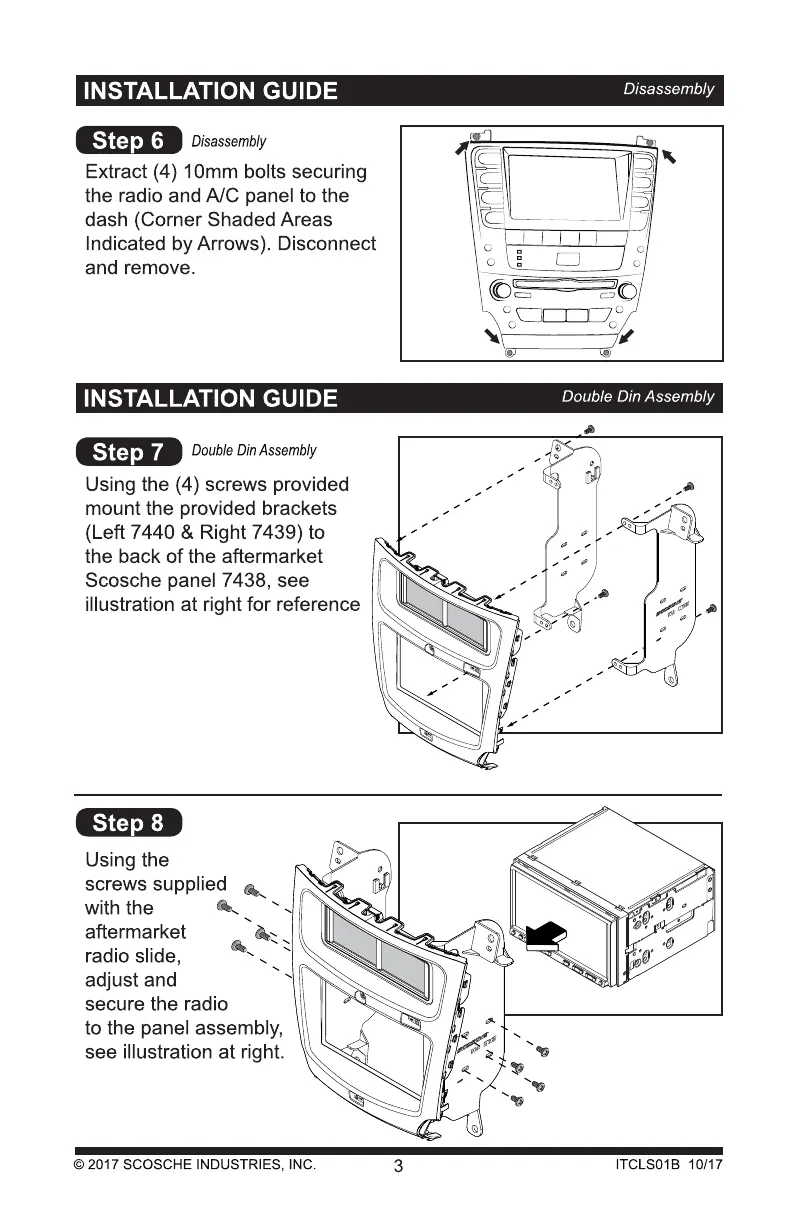

INSTALLATION GUIDE Disassembly
Extract (4) 10mm bolts securing
the radio and A/C panel to the
dash (Corner Shaded Areas
Indicated by Arrows). Disconnect
and remove.
0
0
o·~
'
cc'-
•
D
0
0
~'CO
~o
I o~
•
INSTALLATION GUIDE Double Din Assembly
Using the
screws supplied ,
with the ,
aftermarket
radio slide,
adjust and
secure the radio
to the panel assembly,
see illustration at right.
©2017 SCOSCHE INDUSTRIES, INC.
3
ITCLS0 1 B 10/17
