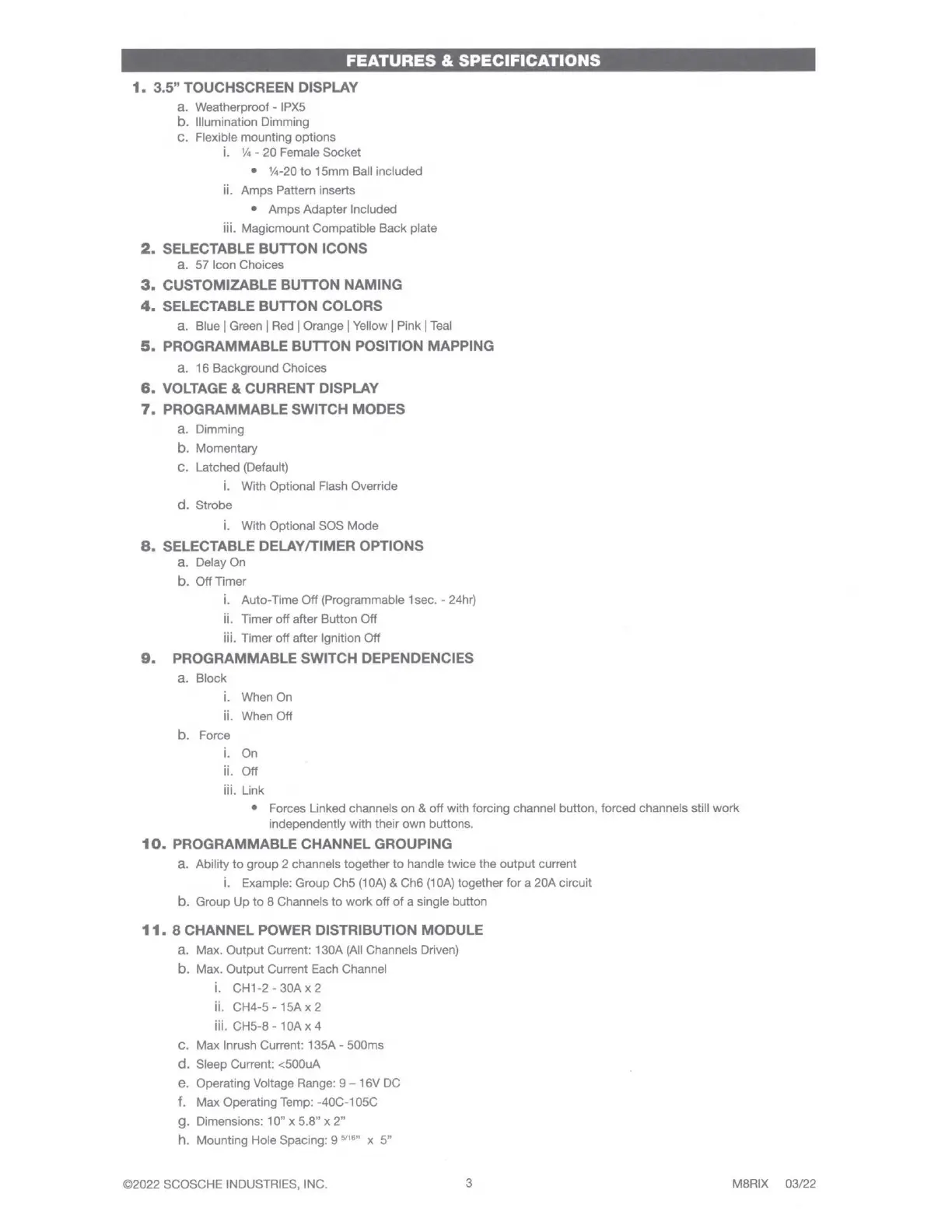

FEATURES & SPECIFICATIONS
1.
3.5" TOUCHSCREEN DISPLAY
a.
Weatherproof - IPX5
b. Illumination Dimming
c. Flexible mounting options
i.
¼ -
20
Female Socket
• ¼-20
to
15mm Ball included
ii.
Amps
Pattern inserts
• Amps Adapter Included
iii. Magicmount Compatible Back plate
2.
SELECTABLE BUTTON ICONS
a.
57 Icon Choices
3.
CUSTOMIZABLE BUTTON NAMING
4.
SELECTABLE BUTTON COLORS
a. Blue I Green I Red I Orange I Yellow I Pink I
Teal
5.
PROGRAMMABLE BUTTON POSITION MAPPING
a.
16 Background Choices
6.
VOLTAGE
& CURRENT DISPLAY
7.
PROGRAMMABLE SWITCH MODES
a. Dimming
b.
Momentary
c. Latched (Default)
i.
With Optional Flash Override
d.
Strobe
i.
With Optional SOS Mode
8.
SELECTABLE DELAY/TIMER OPTIONS
a.
DelayOn
b.
OffTimer
i.
Auto-Time Off (Programmable 1sec. - 24hr)
ii. Timer
off
after Button
Off
iii. Timer
off
after Ignition Off
9.
PROGRAMMABLE SWITCH DEPENDENCIES
a. Block
i.
When On
ii. When Off
b. Force
i.
On
ii. Off
iii. Link
• Forces Linked channels on &
off
with forcing channel button, forced channels still
work
independently with their
own
buttons.
1 O. PROGRAMMABLE CHANNEL GROUPING
a.
Ability
to
group 2 channels together
to
handle twice
the
output current
i.
Example: Group Ch5 (10A) & Ch6 (10A) together
for
a 20A circuit
b.
Group
Up
to
8 Channels
to
work
off
of
a single button
11.
8 CHANNEL POWER DISTRIBUTION MODULE
a.
Max. Output Current: 130A (All Channels Driven)
b.
Max. Output Current Each Channel
i. CH1-2 - 30A x 2
ii. CH4-5 - 15A x 2
iii. CH5-8 - 10A x 4
c.
Max Inrush Current: 135A - 500ms
d. Sleep Current: <500uA
e.
Operating Voltage Range: 9 - 16V DC
f. Max Operating Temp: -40C-105C
g. Dimensions:
10"
x 5.8" x
2"
h. Mounting Hole Spacing: 9
5116
" x 5"
