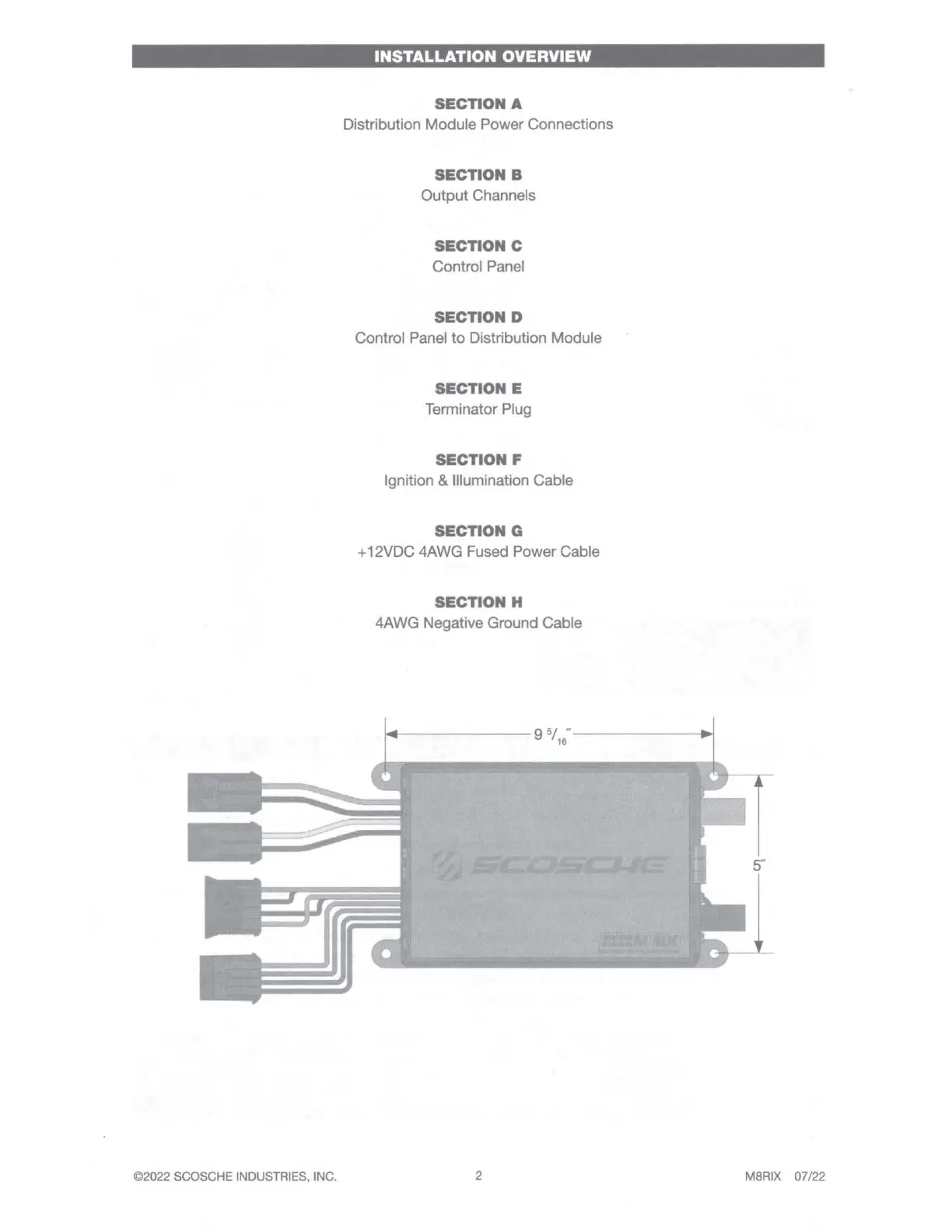

INSTALLATION OVERVIEW
SECTION A
Distribution Module Power Connections
SECTION B
Output Channels
SECTION C
Control Panel
SECTION D
Control Panel to Distribution Module
SECTION E
Terminator Plug
SECTION F
Ignition & Illumination Cable
SECTION G
+ 12VDC 4AWG Fused Power Cable
SECTION H
4AWG Negative Ground Cable
