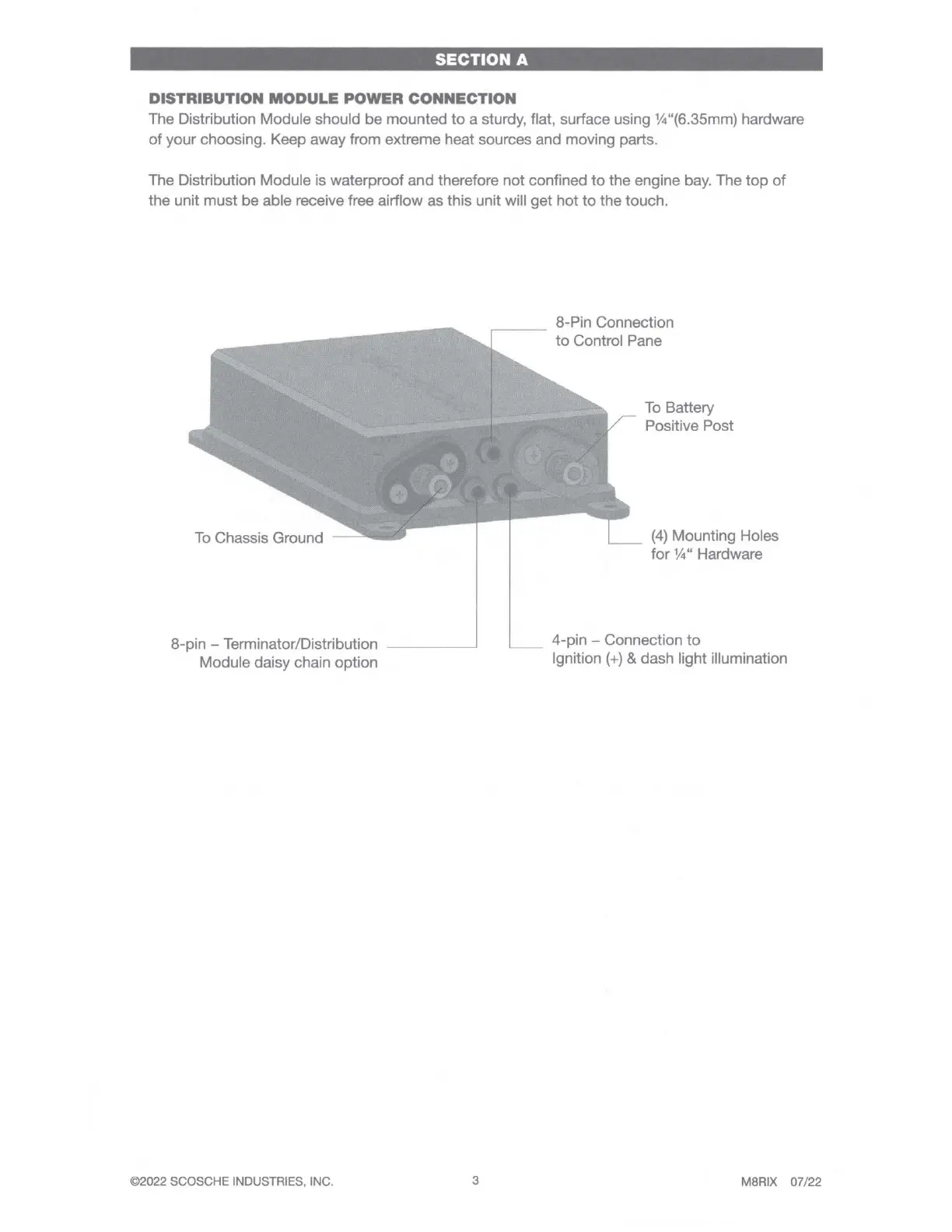

SECTION
A
DISTRIBUTION
MODULE
POWER
CONNECTION
The Distribution Module should
be
mounted
to
a sturdy, flat, surface using ¼"(6.35mm) hardware
of
your choosing. Keep away from extreme heat sources and moving parts.
The Distribution Module is waterproof and therefore not confined
to
the engine bay. The
top
of
the unit must
be
able receive free airflow as this unit will get hot
to
the touch.
To
Chassis Ground
8-pin - Terminator/Distribution
Module daisy chain option
©2022 SCOSCHE INDUSTRIES, INC.
~--
3
8-Pin Connection
to
Control Pane
To
Battery
Positive Post
(4)
Mounting Holes
for¼"
Hardware
4-pin - Connection
to
Ignition
(+)
& dash light illumination
M8RIX 07/22
