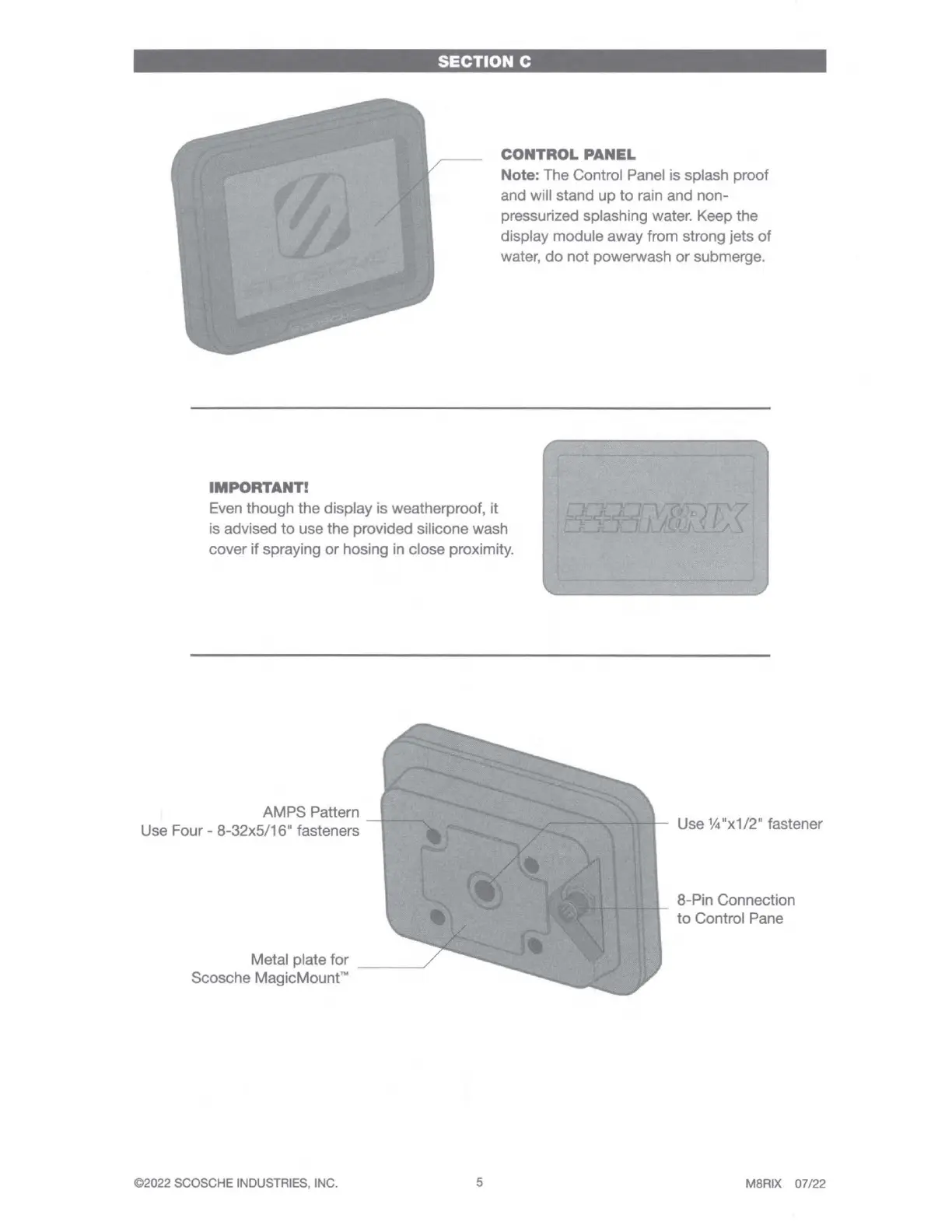

SECTION
C
IMPORTANT!
Even though
the
display is weatherproof, it
CONTROL PANEL
Note: The Control Panel is splash proof
and will stand up
to
rain and non-
pressurized splashing water. Keep the
display module away from strong jets
of
water,
do
not powerwash
or
submerge.
is advised
to
use the provided silicone wash
cover
if
spraying
or
hosing
in
close proximity.
AMPS Pattern
Use Four - 8-32x5/16" fasteners
©2022 SCOSCHE INDUSTRIES, INC.
5
Use ¼"x1/2" fastener
8-Pin Connection
to
Control Pane
M8RIX 07/22
