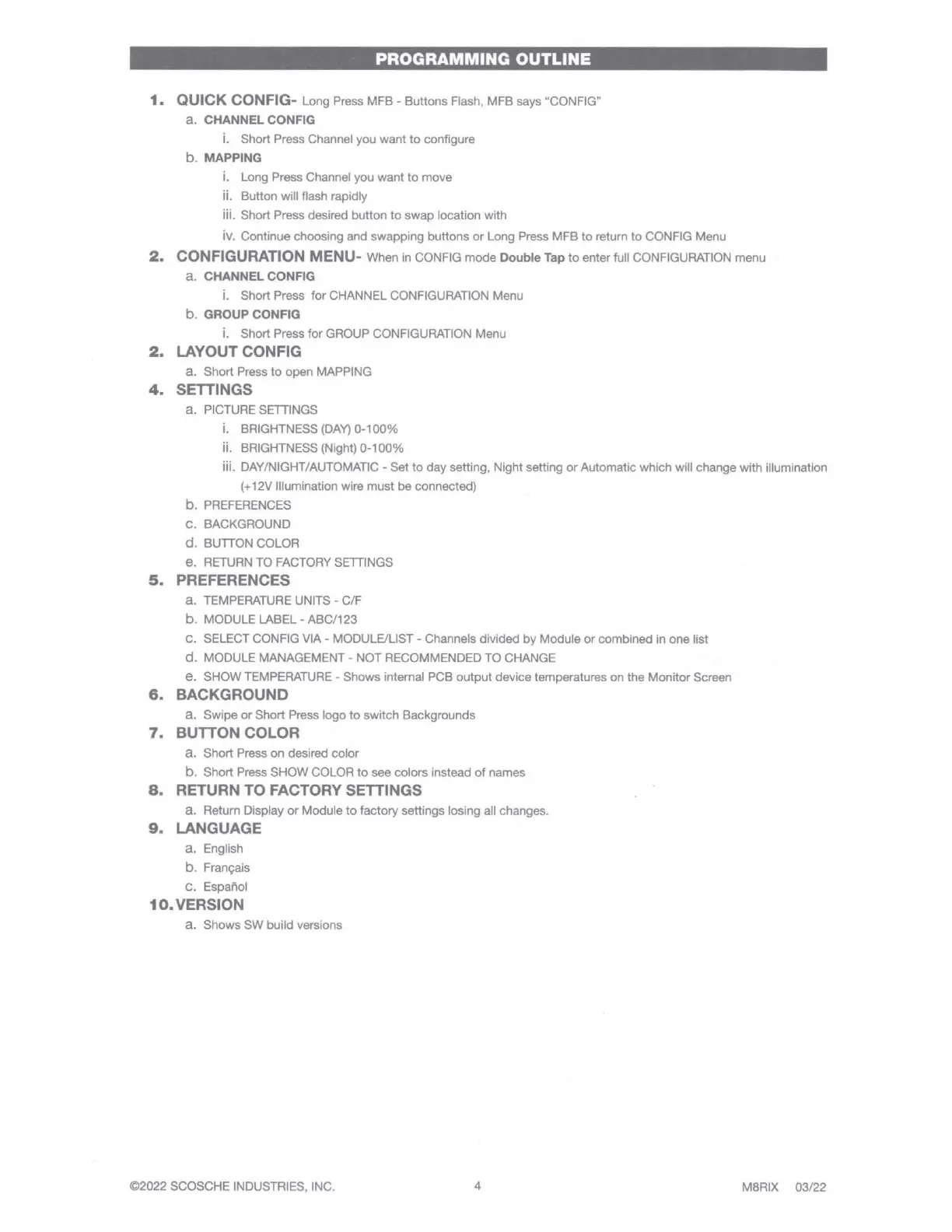

PROGRAMMING
OUTLINE
1.
QUICK CONFIG- Long Press
MFB
-
Buttons
Flash,
MFB
says "CONFIG"
a.
CHANNEL CONFIG
i.
Short Press Channel you
want
to
configure
b. MAPPING
i.
Long Press Channel you
want
to
move
ii. Button will flash rapidly
iii. Short Press desired
button
to
swap
location with
iv. Continue choosing and swapping
buttons
or
Long Press
MFB
to
return
to
CONFIG Menu
2.
CONFIGURATION MENU- When in CONFIG
mode
Double Tap
to
enter full CONFIGURATION menu
a. CHANNEL CONFIG
i.
Short
Press
for
CHANNEL CONFIGURATION Menu
b. GROUP CONFIG
i.
Short
Press
for
GROUP CONFIGURATION Menu
2.
LAYOUT CONFIG
a.
Short
Press
to
open
MAPPING
4.
SETTINGS
a.
PICTURE SETTINGS
i.
BRIGHTNESS
(DAY)
0-100%
ii. BRIGHTNESS (Night)
0-100%
iii. DAY
/N
IGHT/AUTOMATIC -
Set
to
day
setting, Night setting
or
Automatic
which
will change
with
illumination
(+12V Illumination wire
must
be
connected)
b.
PREFERENCES
c.
BACKGROUND
d.
BUTTON COLOR
e.
RETURN
TO
FACTORY SETTINGS
5.
PREFERENCES
a.
TEMPERATURE UNITS -
C/F
b.
MODULE LABEL - ABC/123
C.
SELECT CONFIG VIA - MODULE/LIST - Channels
divided
by
Module
or
combined
in
one
list
d. MODULE MANAGEMENT -
NOT
RECOMMENDED TO CHANGE
e.
SHOW
TEMPERATURE -
Shows
internal
PCB
output
device temperatures
on
the
Monitor
Screen
6.
BACKGROUND
a.
Swipe
or
Short
Press logo
to
switch
Backgrounds
7.
BUTTON COLOR
a.
Short Press
on
desired
color
b. Short Press
SHOW
COLOR
to
see
colors
instead
of
names
8.
RETURN TO FACTORY SETTINGS
a.
Return Display
or
Module
to
factory
settings losing all changes.
9.
LANGUAGE
a.
English
b.
Fran,;:ais
c.
Espanol
10.VERSION
a.
Shows
SW build versions
©2022 SCOSCHE INDUSTRIES, INC.
4
MBRIX 03/22
