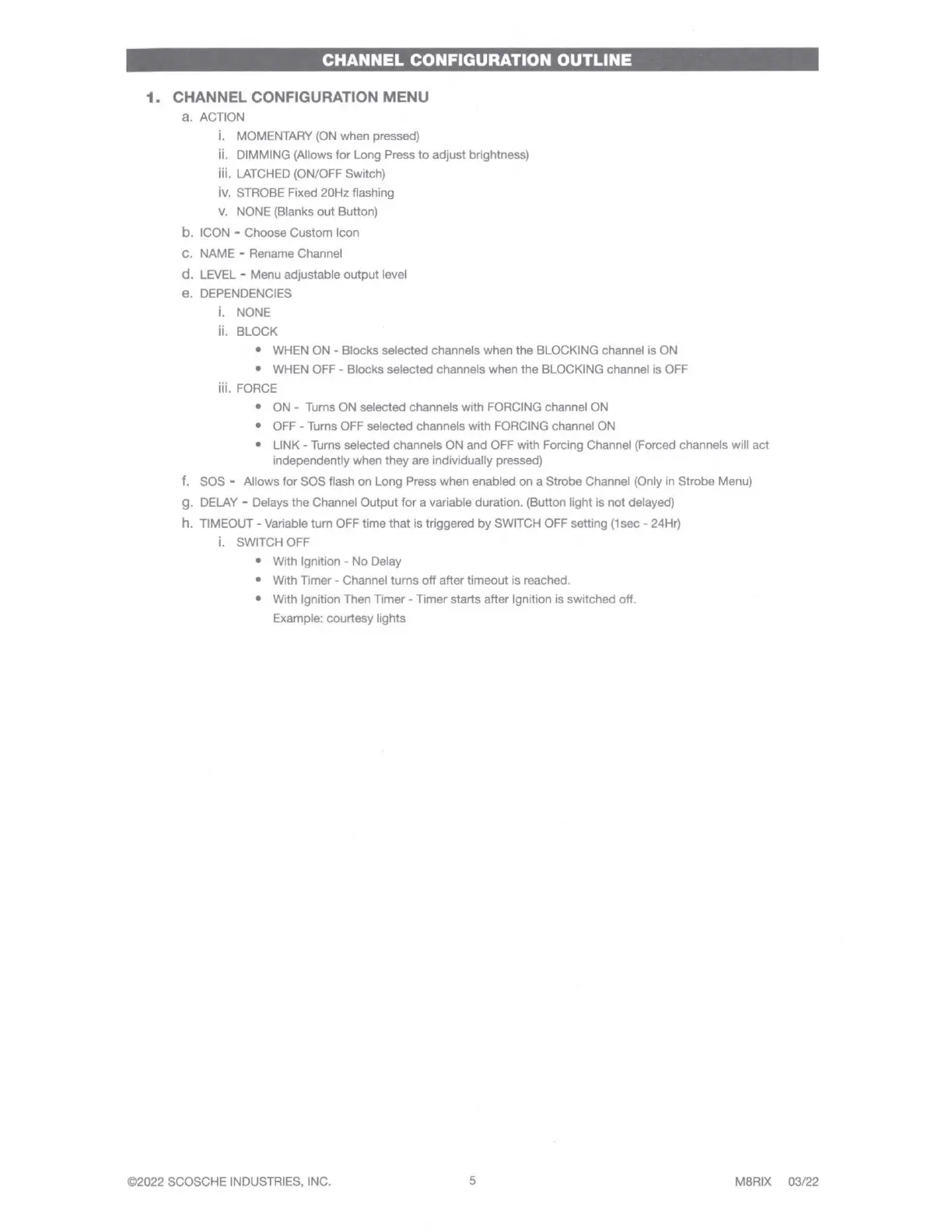

CHANNEL CONFIGURATION OUTLINE
1.
CHANNEL CONFIGURATION MENU
a.
ACTION
i. MOMENTARY (ON
when
pressed)
ii. DIMMING (Allows
for
Long Press
to
adjust
brightness)
iii. LATCHED (ON/OFF Switch)
iv. STROBE Fixed
20Hz
flashing
V.
NONE (Blanks
out
Button)
b.
ICON -
Choose
Custom
Icon
c.
NAME - Rename Channel
d.
LEVEL - Menu adjustable
output
level
e.
DEPENDENCIES
i.
NONE
ii.
BLOCK
• WHEN
ON
-
Blocks
selected
channels when
the
BLOCKING channel is
ON
• WHEN OFF -
Blocks
selected channels when
the
BLOCKING channel is OFF
iii. FORCE
• ON - Turns
ON
selected channels with FORCING channel ON
• OFF - Turns OFF selected channels
with
FORCING channel
ON
• LINK - Turns selected channels ON
and
OFF
with
Forcing Channel (Forced channels will
act
independently when
they
are individually pressed)
f.
SOS - Allows
for
SOS flash
on
Long
Press when enabled
on
a Strobe Channel (Only in
Strobe
Menu)
g. DELAY - Delays
the
Channel
Output
for
a variable duration. (Button light is
not
delayed)
h.
TIMEOUT - Variable
turn
OFF
time
that
is triggered
by
SWITCH OFF setting
(1
sec
- 24Hr)
i. SWITCH OFF
• With Ignition -
No
Delay
• With
Timer
- Channel
turns
off
after
timeout
is reached.
• With Ignition Then Timer -
Timer
starts
after
Ignition is
switched
off.
Example: courtesy lights
