Scotsman C1448 - Cabinet Layout and Dimensions; Unit Layout and Connection Points

C1448, C1848 D
Air and Water Cooled User Manual
December 2014
Page 5
48.00 121.9
29.00
73.7
.93 2.4
123.7 48.70
24.00
61
.92 2.3
1.27
REFRIGERATION
AND ELECTRICAL CHASE
18.00
45.7
24.18
61.4
52.3
20.59
7.5
2.96
63.3
24.91
117.2 46.15
3/8" FPT WATER INLET
3/4" FPT
DRAIN
.88 DIA ELECTRICAL ACCESS
18.00
45.7
24.18
61.4
2.96
7.5
117.2 46.15
63.3
24.91
6.8
2.68
14.3 5.64
55.9
22.03
52.1
20.53
11.7 4.61
3/8" FPT CONDENSER WATER INLET
1/2" FPT CONDENSER DRAIN
3/4" FPT DRAIN
3/8" FPT WATER INLET
.88 DIA ELECTRICAL ACCESS
9.00 22.9
2.00
5.1
9.63 24.5
48.00
REF.
24.00
REF.
22.75
MINIMUM BIN
TOP OPENING
57.8
18.30
46.5
ICE DROP OPENING
AIR COOLED
BACK VIEW
LEFT SIDE VIEW
FRONT VIEW
WATER COOLED
BACK VIEW
PLAN VIEW
LOUVER AND REMOVABLE FILTER AC UNITS ONLY

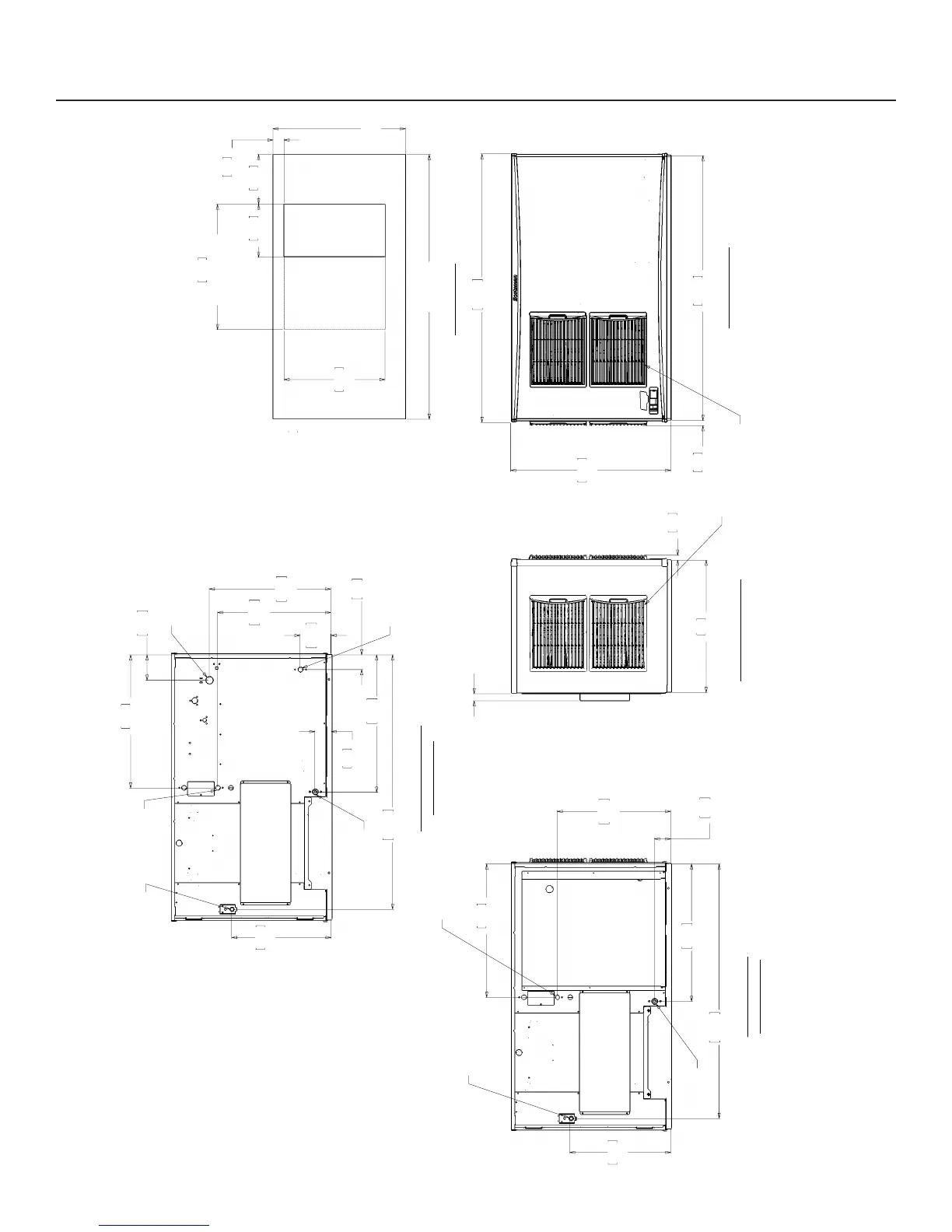

Cabinet Layout, Air and Water Cooled
