Scotsman CSE60 - GRAPH OF SYSTEM PRESSURES

GRAPH OF SYS TEM PRES SURES
CSE60
June 2001
Page 13

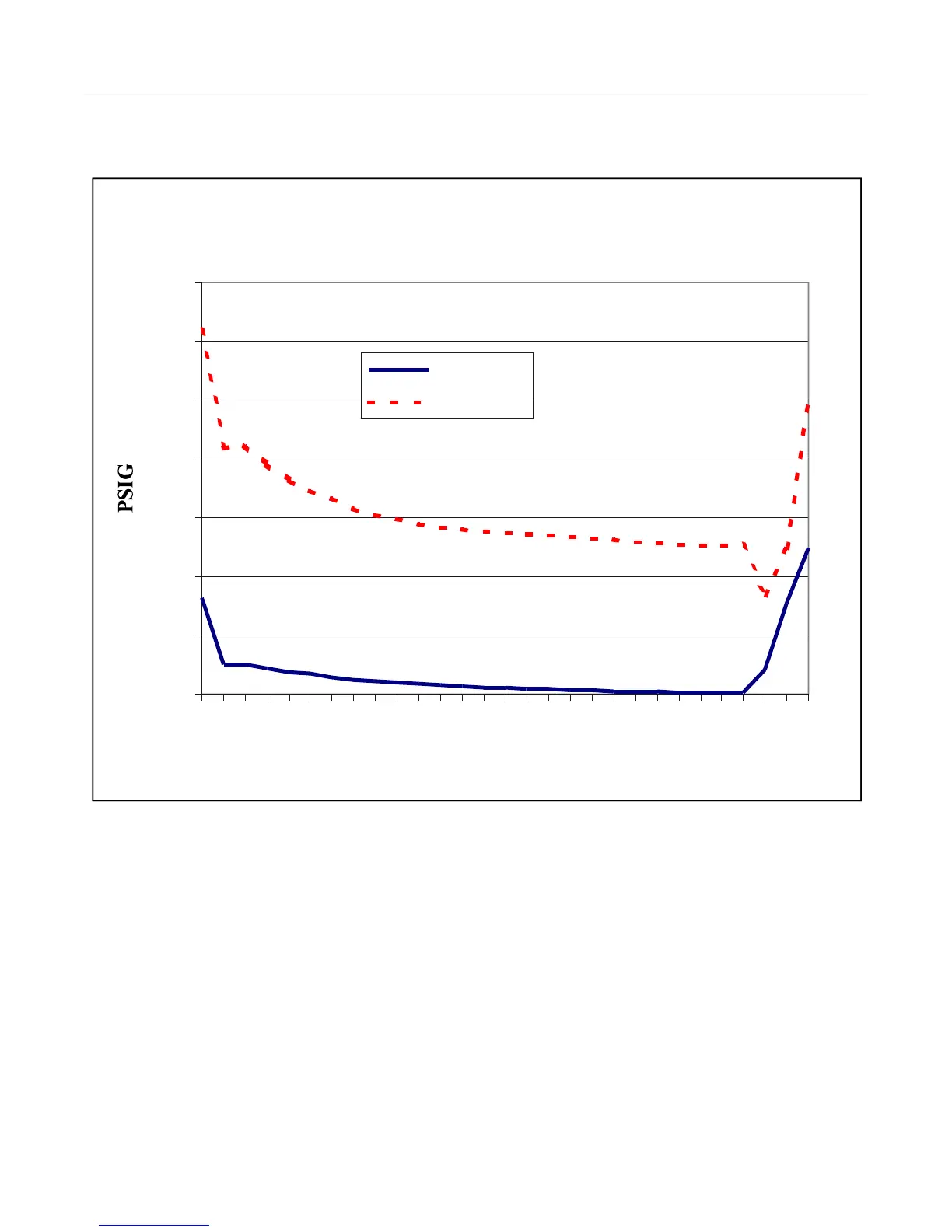

This graph shows the system pressures during one full cycle at 90
o
F. Air and 70
o
F. water.
CSE60
0
50
100
150
200
250
300
350
0 2 4 6 8 10 12 14 16 18 20 22 24 0 2
Time
Low Side
High Side
Typical ice weight per batch: 1 lb. 1 oz.
