CU50
Service Manual
March 2010
Page 29

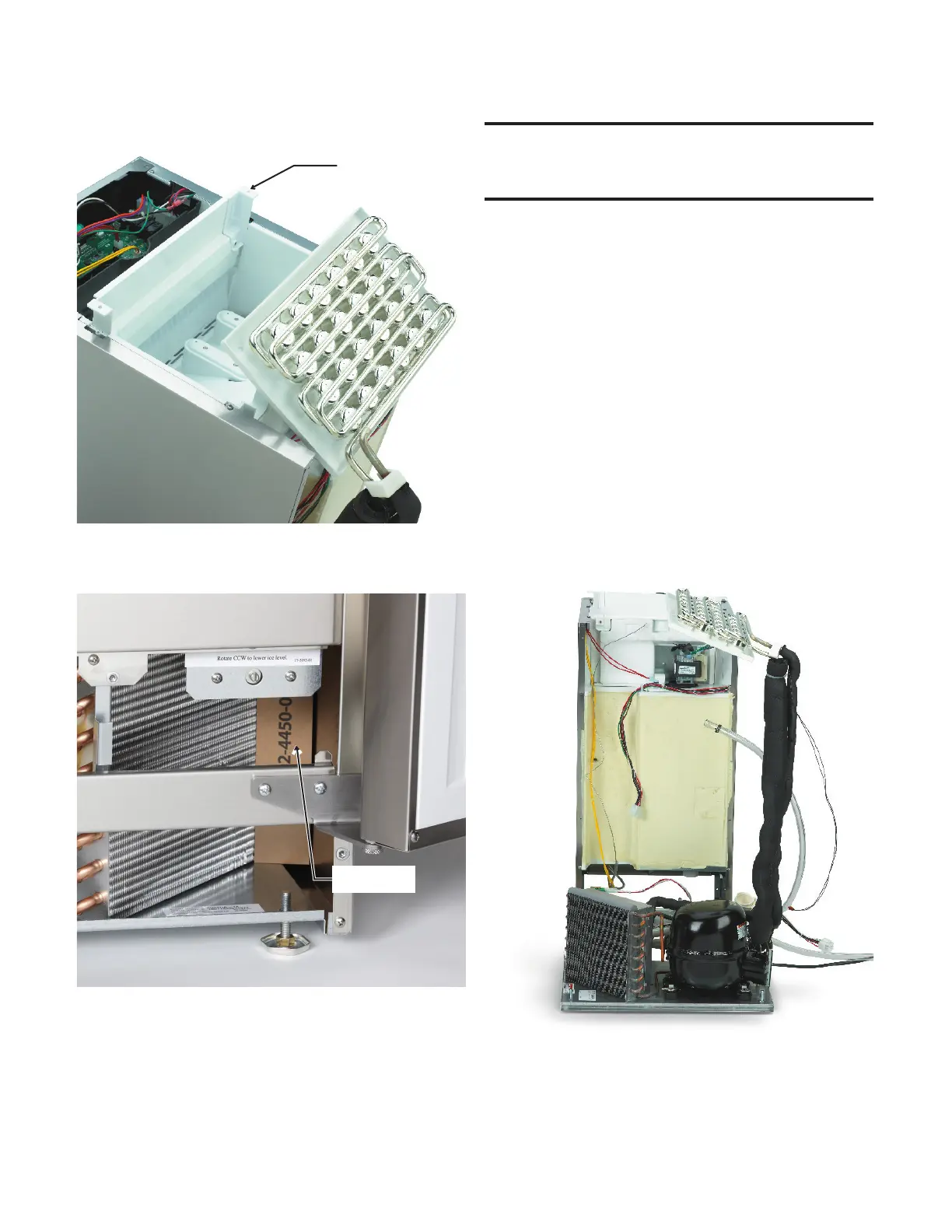

16. Remove two screws holding freezing
compartment brace to cabinet, lift brace up.
17. Lift evaporator platen up and tilt back enough
for bin assembly to clear the base.
18. Remove air bafe.
19. Unplug 7 wire harness connector (at back of
bin).
20. Remove 1 screw at each corner of the base.
21. Lift bin assembly off the base.
Note: Prop evaporator assembly up. A 3’ length of
3/4” PVC tubing with one end inserted into the cup
mold and the other against the base will hold it up.
The hot gas valve, fan motor, condenser and
compressor are now exposed for service.
Brace
Air Bafe
